Driessen Daphne A J J, de Gouw Didi J J M, Stijns Rutger C H, Litjens Geke, Israël Bas, Philips Bart W J, Hermans John J, Dijkema Tim, Klarenbeek Bastiaan R, van der Post Rachel S, Nagtegaal Iris D, van Engen-van Grunsven Adriana C H, Brosens Lodewijk A A, Veltien Andor, Zámecnik Patrik, Scheenen Tom W J
Department of Radiation Oncology, Radboud University Medical Center, 6525 Nijmegen, The Netherlands.
Department of Surgery, Radboud University Medical Center, 6525 Nijmegen, The Netherlands.
Methods Protoc. 2022 Mar 7;5(2):24. doi: 10.3390/mps5020024.

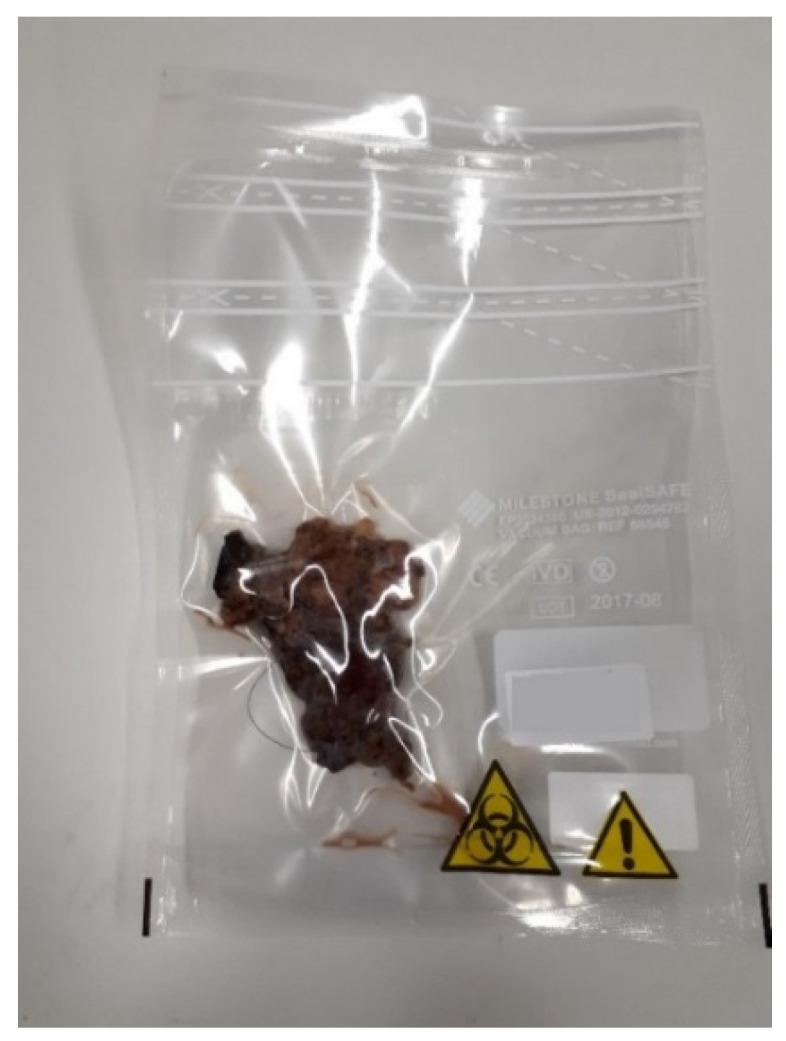

BACKGROUND: In various cancer types, the first step towards extended metastatic disease is the presence of lymph node metastases. Imaging methods with sufficient diagnostic accuracy are required to personalize treatment. Lymph node metastases can be detected with ultrasmall superparamagnetic iron oxide (USPIO)-enhanced magnetic resonance imaging (MRI), but this method needs validation. Here, a workflow is presented, which is designed to compare MRI-visible lymph nodes on a node-to-node basis with histopathology. METHODS: In patients with prostate, rectal, periampullary, esophageal, and head-and-neck cancer, in vivo USPIO-enhanced MRI was performed to detect lymph nodes suspicious of harboring metastases. After lymphadenectomy, but before histopathological assessment, a 7 Tesla preclinical ex vivo MRI of the surgical specimen was performed, and in vivo MR images were radiologically matched to ex vivo MR images. Lymph nodes were annotated on the ex vivo MRI for an MR-guided pathological examination of the specimens. RESULTS: Matching lymph nodes of ex vivo MRI to pathology was feasible in all cancer types. The annotated ex vivo MR images enabled a comparison between USPIO-enhanced in vivo MRI and histopathology, which allowed for analyses on a nodal, or at least on a nodal station, basis. CONCLUSIONS: A workflow was developed to validate in vivo USPIO-enhanced MRI with histopathology. Guiding the pathologist towards lymph nodes in the resection specimens during histopathological work-up allowed for the analysis at a nodal basis, or at least nodal station basis, of in vivo suspicious lymph nodes with corresponding histopathology, providing direct information for validation of in vivo USPIO-enhanced, MRI-detected lymph nodes.
背景:在各种癌症类型中,发生远处转移性疾病的第一步是出现淋巴结转移。需要具有足够诊断准确性的成像方法来实现个性化治疗。超小型超顺磁性氧化铁(USPIO)增强磁共振成像(MRI)可检测淋巴结转移,但该方法需要验证。本文介绍了一种工作流程,旨在将MRI可见的淋巴结逐个与组织病理学进行比较。 方法:对前列腺癌、直肠癌、壶腹周围癌、食管癌和头颈癌患者进行体内USPIO增强MRI检查,以检测怀疑有转移的淋巴结。在淋巴结切除术后但在组织病理学评估之前,对手术标本进行7特斯拉临床前离体MRI检查,并将体内MR图像与离体MR图像进行放射学匹配。在离体MRI上对淋巴结进行标注,以便对标本进行MR引导的病理检查。 结果:在所有癌症类型中,将离体MRI的匹配淋巴结与病理学进行匹配是可行的。标注后的离体MR图像能够对USPIO增强的体内MRI与组织病理学进行比较,从而可以在单个淋巴结或至少在淋巴结站的基础上进行分析。 结论:开发了一种工作流程,以验证体内USPIO增强MRI与组织病理学的匹配情况。在组织病理学检查过程中引导病理学家找到切除标本中的淋巴结,从而能够在单个淋巴结或至少在淋巴结站的基础上,对体内可疑淋巴结及其相应的组织病理学进行分析,为验证体内USPIO增强MRI检测到的淋巴结提供直接信息。
