Wide-Oblique-Incident-Angle Stable Polarization-Insensitive Ultra-Wideband Metamaterial Perfect Absorber for Visible Optical Wavelength Applications.

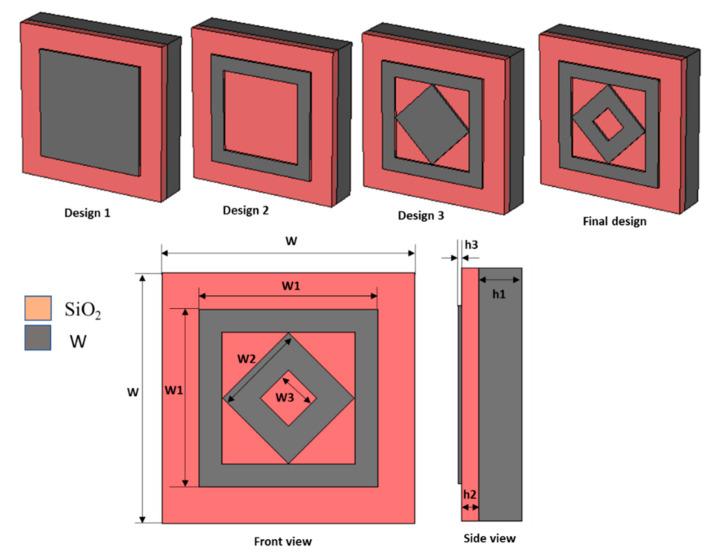

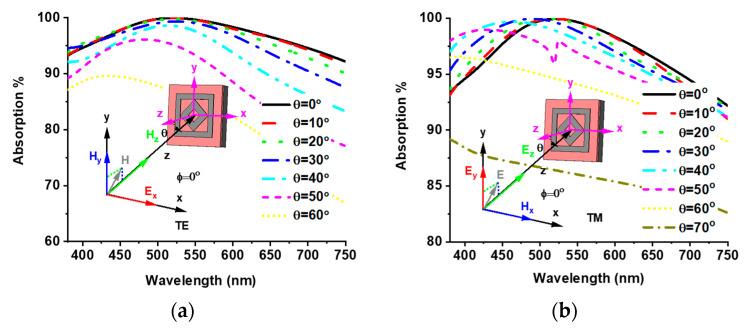

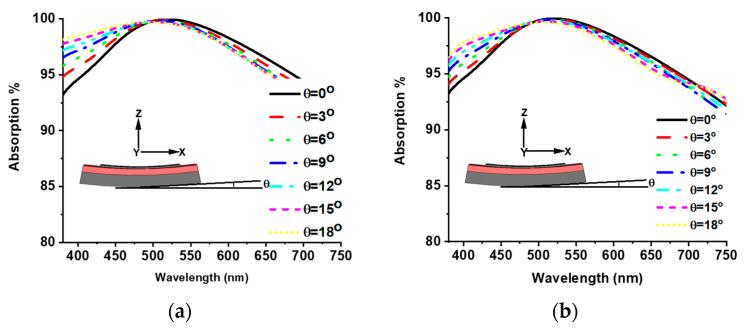

Metamaterial absorbers are very attractive due to their significant absorption behavior at optical wavelengths, which can be implemented for energy harvesting, plasmonic sensors, imaging, optical modulators, photovoltaic detectors, etc. This paper presents a numerical study of an ultra-wide-band double square ring (DSR) metamaterial absorber (MMA) for the complete visible optical wavelength region, which is designed with a three-layer (tungsten-silicon dioxide-tungsten) substrate material. Due to the symmetricity, a polarization-insensitive absorption is obtained for both transverse electric (TE) and transverse magnetic (TM) modes by simulation. An absorption above 92.2% and an average absorption of 97% are achieved in the visible optical wavelength region. A peak absorption of 99.99% is achieved at 521.83 nm. A wide range of oblique incident angle stabilities is found for stable absorption properties. A similar absorption is found for different banding angles, which may occur due to external forces during the installation of the absorber. The absorption is calculated by the interference theory (IT) model, and the polarization conversion ratio (PCR) is also validated to verify the perfect MMA. The electric field and magnetic field of the structure analysis are performed to understand the absorption property of the MMA. The presented MMA may be used in various applications such as solar cells, light detection, the biomedical field, sensors, and imaging.
