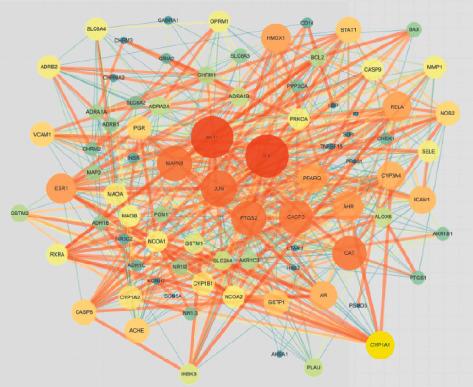

Heart failure (HF) is a serious manifestation or advanced stage of various cardiovascular diseases, and its mortality and rehospitalization rate are still on the rise in China. Based on the network pharmacology method, 59 components of Zhen Wu decoction (ZWD) and 83 target genes related to HF were obtained. Through the PPI network, four potential therapeutic targets were identified: AKT1, IL6, JUN, and MAPK8. The beneficial components of ZWD might intervene HF through the AGE-RAGE signalling pathway in the diabetes component, fluid shear stress and atherosclerosis, the TNF signalling pathway, TB, and Kaposi sarcoma related herpesvirus infection, according to a KEGG enrichment study. The protein interaction network of candidate targets was constructed by the STRING database, and the protein interaction network was clustered by MEODE software. GO and KEGG enrichment analyses were performed on the core modules obtained by clustering. Finally, AutoDock Vina software was used for molecular docking verification of key targets and active ingredients. The result was that 75 active ingredients and 109 genes were screened as potential active ingredients and potential targets of Shengjie Tongyu decoction for CHF treatment. The main active components were quercetin, luteolin, kaempferol, dehydrated icariin, isorhamnetin, formononetin, and other flavonoids. Il-6, MAPK1, MAPK8, AKT1, VEGFA, and JUN were selected as the core targets. Molecular docking showed that the key components were well connected with the target. GO enrichment analysis showed that Shengjie Tongyu decoction could play a role through multiple biological pathways including angiogenesis, regulation of endothelial cell proliferation, binding of cytokine receptors, negative regulation of apoptotic signalling pathways, regulation of nitric oxide synthase activity, and reactive oxygen metabolism. Key pathways mainly focus on the toll-like receptor signalling pathway, nod-like receptor signalling pathway, MAPK signalling pathway, mTOR signalling pathway, JAK-STAT signalling pathway, VEGF signalling pathway, and other pathways. Through molecular docking technology, it was found that a variety of effective components in ZWD, such as kaempferol. Molecular docking technology has preliminatively verified the network pharmacology and laid a foundation for the follow-up pharmacological research.
