Mousavi Seyyed Hossein, Manoochehri Mahboobeh, Afshar Taromi Faramarz
Department of Chemistry, Central Tehran Branch, Islamic Azad University Tehran 1467686831 Iran
Department of Polymer Engineering and Color Technology, Amirkabir University of Technology 424 Hafez Avenue, P. O. Box: 15875-4413 Tehran Iran.
RSC Adv. 2021 Apr 14;11(23):13867-13875. doi: 10.1039/d1ra00420d. eCollection 2021 Apr 13.

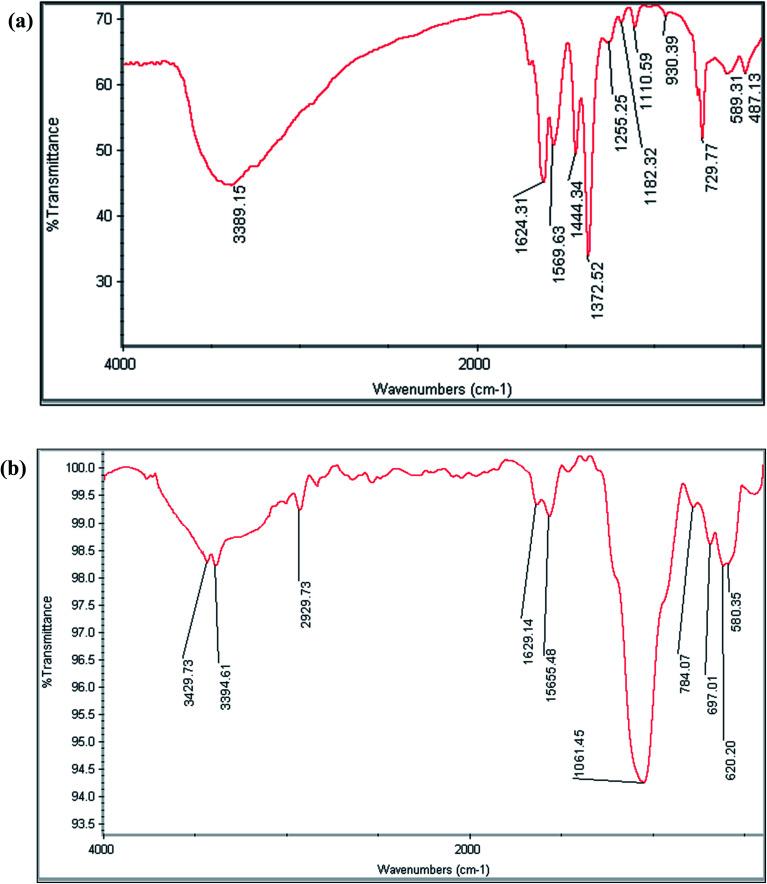

Herein, a novel magnetic metal-organic framework functionalized (MMOF) with 2-aminothiophenol (2-ATP) was fabricated and employed for separation/preconcentration of trace silver amounts. At first magnetite nanoparticles (FeO NPs) were synthesized and then coated with SiO. Thereafter, the FeO@SiO nanoparticles were modified with 2-ATP. Finally, the functionalized MMOF was prepared by the fabrication of MIL-101(Cr) in the presence of FeO@SiO@2-ATP NPs. MIL-101(Cr)/FeO@SiO@2-ATP nanocomposite was characterized with FT-IR, SEM, elemental analysis, XRD and VSM and then utilized in the separation/determination of silver ions in various real samples. The effects of diverse experimental variables such as pH, uptake time, adsorbent amount, desorption time, eluent concentration and volume were studied comprehensively employing experimental design methodology. After optimization, LOD and linearity were 0.05 ng mL and 0.2-200 ng mL, respectively. Repeatability of the new method was determined based on RSD value for 5, 50, 150 ng mL ( = 5) concentrations which was 9.3%, 6.8% and 4.5%, respectively. Ultimately, the outlined method was utilized in the separation/determination of silver ions in various water and wastewater samples satisfactorily.
本文制备了一种用2-氨基硫酚(2-ATP)功能化的新型磁性金属有机框架(MMOF),并将其用于痕量银的分离/预富集。首先合成了磁铁矿纳米颗粒(Fe₃O₄ NPs),然后用SiO₂包覆。此后,用2-ATP对Fe₃O₄@SiO₂纳米颗粒进行改性。最后,在Fe₃O₄@SiO₂@2-ATP NPs存在下通过制备MIL-101(Cr)来制备功能化的MMOF。通过傅里叶变换红外光谱(FT-IR)、扫描电子显微镜(SEM)、元素分析、X射线衍射(XRD)和振动样品磁强计(VSM)对MIL-101(Cr)/Fe₃O₄@SiO₂@2-ATP纳米复合材料进行了表征,然后将其用于各种实际样品中银离子的分离/测定。采用实验设计方法全面研究了不同实验变量如pH值、吸附时间、吸附剂用量、解吸时间、洗脱液浓度和体积的影响。优化后,检测限(LOD)和线性分别为0.05 ng/mL和0.2 - 200 ng/mL。基于5、50、150 ng/mL(n = 5)浓度的相对标准偏差(RSD)值确定了该新方法的重复性,分别为9.3%、6.8%和4.5%。最终,所概述的方法成功用于各种水和废水样品中银离子的分离/测定。
