Buonanno Giovanni, Brancaccio Adriana, Costanzo Sandra, Solimene Raffaele
DIMES, University of Calabria, 87036 Rende, Italy.
Department of Engineering, University of Campania, 81031 Aversa, Italy.
Bioengineering (Basel). 2022 Apr 4;9(4):156. doi: 10.3390/bioengineering9040156.

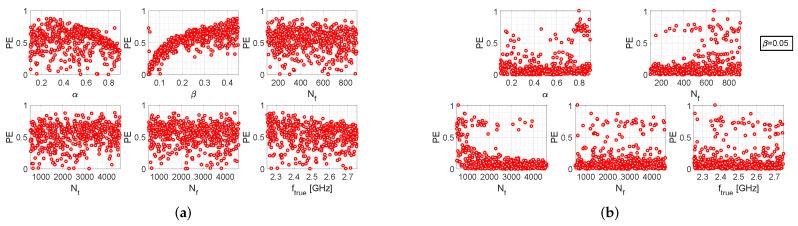

In this paper, the performance of three recent algorithms for the frequency-response enhancement of microwave resonant sensors are compared. The first one, a single-step algorithm, is based on a couple of direct-inverse Fourier transforms, giving a densely sampled response as a result. The second algorithm exploits an iterative procedure to progressively restricts the frequency response. The final one is based on the super-resolution MUSIC algorithm. The comparison is carried out through a Monte Carlo analysis. In particular, synthetic signals are firstly exploited to mimic the frequency response of a resonant microwave sensor. Then, experimental data collected from water-glucose solutions are adopted as validation test for potential applications in noninvasive blood-glucose monitoring.
本文比较了三种用于增强微波谐振传感器频率响应的最新算法的性能。第一种是单步算法,基于一对直接逆傅里叶变换,结果是得到一个密集采样的响应。第二种算法利用迭代过程逐步限制频率响应。最后一种基于超分辨率MUSIC算法。通过蒙特卡洛分析进行比较。具体而言,首先利用合成信号来模拟谐振微波传感器的频率响应。然后,将从水 - 葡萄糖溶液中收集的实验数据用作无创血糖监测潜在应用的验证测试。
