A Novel Approach to Immediate Implants: The CastleWall Surgical Technique.

OBJECTIVE

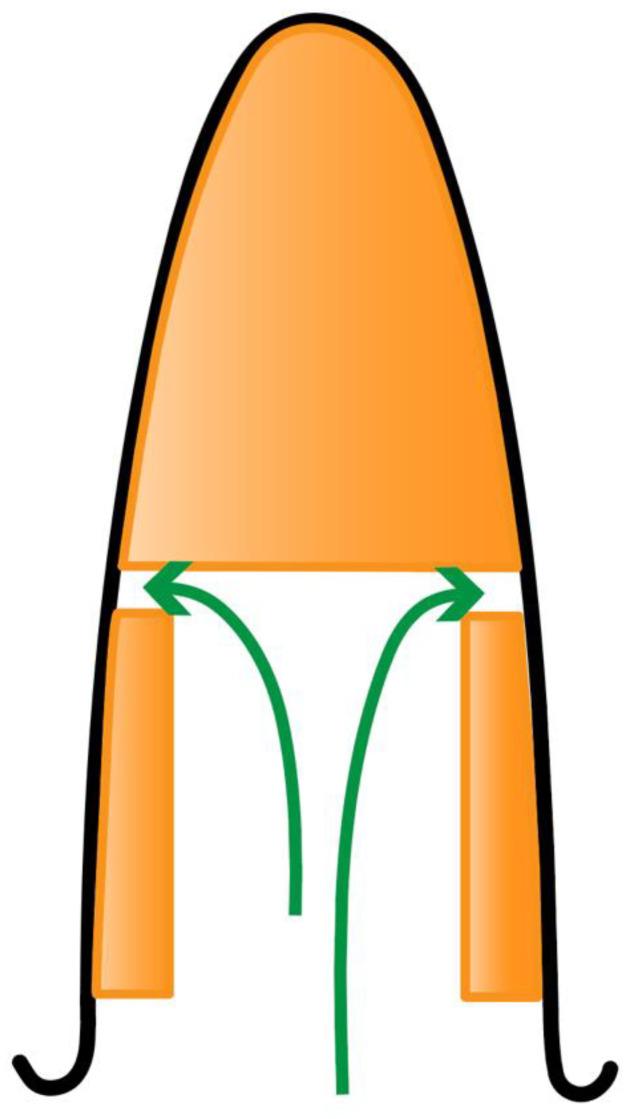

The purpose of this study was to investigate the volumetric stability around immediate implants, in which a 360-degree socket-shield was retained using the CastleWall Surgical Technique (CWST).

MATERIAL AND METHODS

This retrospective study examined the results of the CWST used for 25 consecutive patients, involving 31 immediate implants. Silicone impressions taken prior to extraction, and at a review appointment were converted to STL files and compared. The median follow-up time was 14.2 ± 5.5 months. Volumetric changes and gingival recession on both buccal and lingual sites were measured. Papillary height changes were also evaluated from available photographs taken before and after treatment. Patients in the study completed a Visual Analogue Scale (VAS) for evaluation of post-operative discomfort and overall satisfaction with this procedure.

RESULTS

All implants integrated successfully without complications. Mean loss of buccal and lingual tissue was 0.30 ± 0.32 mm and 0.17 ± 0.27 mm, respectively. Mean recession at the mid-buccal and mid-lingual gingival margin was 0.66 ± 0.64 mm and 0.87 ± 0.84 mm, respectively. Mean recession of the mesial and distal papilla was 0.26 ± 0.55 mm and 0.29 ± 0.52 mm, respectively. Patients reported 97.74 ± 5.60% satisfaction with this procedure using the Visual Analogue Scale (VAS), with minimal post-operative discomfort.

CONCLUSIONS

The results of this study showed excellent soft tissue stability and aesthetics were achieved using the CWST, with minimal postoperative pain. The other main advantage of retaining a 360-degree socket-shield, is there is more available surface area to lock the implant to the shield to prevent shield migration over time.
