Electrochemical studies of a high voltage NaCo(PO)PO-MWCNT composite through a selected stable electrolyte.

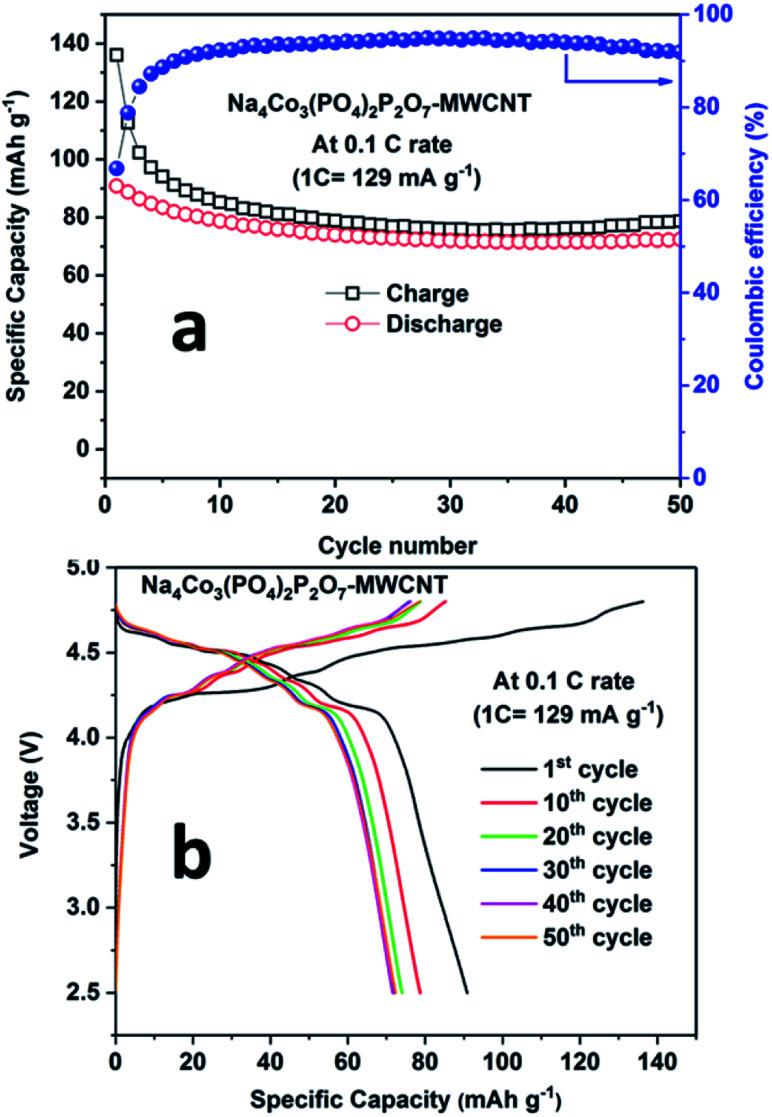

Cathode materials that operate at high voltages are required to realize the commercialization of high-energy-density sodium-ion batteries. In this study, we prepared different composites of sodium cobalt mixed-phosphate with multiwalled carbon nanotubes (NaCo(PO)PO-MWCNTs) by the sol-gel synthesis technique. The crystal structure and microstructure were characterized by using PXRD, TGA, Raman spectroscopy, SEM and TEM. The electrochemical properties of the NaCo(PO)PO-20 wt% MWCNT composite were explored using two different electrolytes. The composite electrode exhibited excellent cyclability and rate capabilities with the electrolyte composed of 1 M sodium hexafluorophosphate in ethylene carbonate:dimethyl carbonate (EC:DMC). The composite electrode delivered stable discharge capacities of 80 mA h g and 78 mA h g at room and elevated (55 °C) temperatures, respectively. The average discharge voltage was around 4.45 V Na/Na, which corresponded to the Co redox couple. The feasibility of the NaCo(PO)PO cathode for sodium-ion batteries has been confirmed in real time using a full cell configuration NaTi(PO)-20 wt% MWCNT, and it delivers an initial discharge capacity of 78 mA h g at 0.2C rate.
