Qin Wei, Xu Kaixuan, Wang Junwei, Cui Xiaofeng, Zhang Jianli, Weng Yaqing
Anhui Province Key Laboratory of Optoelectronic and Magnetism Functional Materials, Anqing Normal University Anqing 246011 China
State Key Laboratory of High-efficiency Utilization of Coal and Green Chemical Engineering, Ningxia University Yinchuan 750021 China.
RSC Adv. 2021 Oct 28;11(55):34754-34765. doi: 10.1039/d1ra05781b. eCollection 2021 Oct 25.

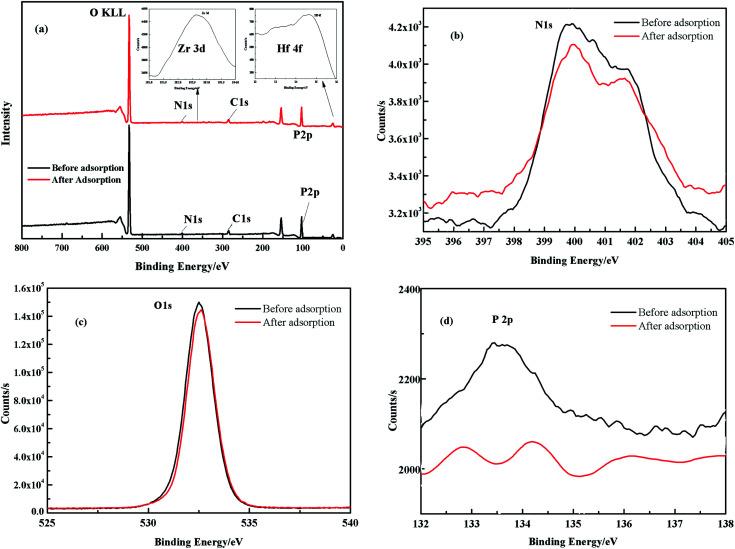

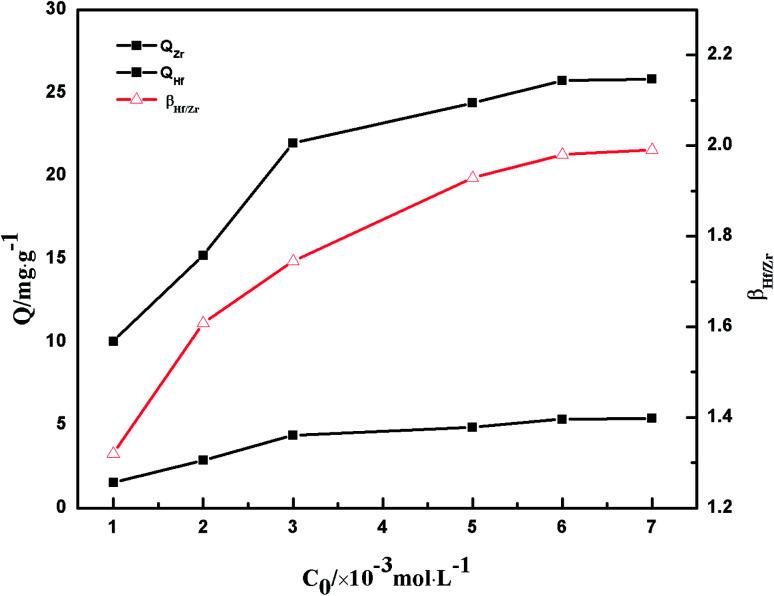

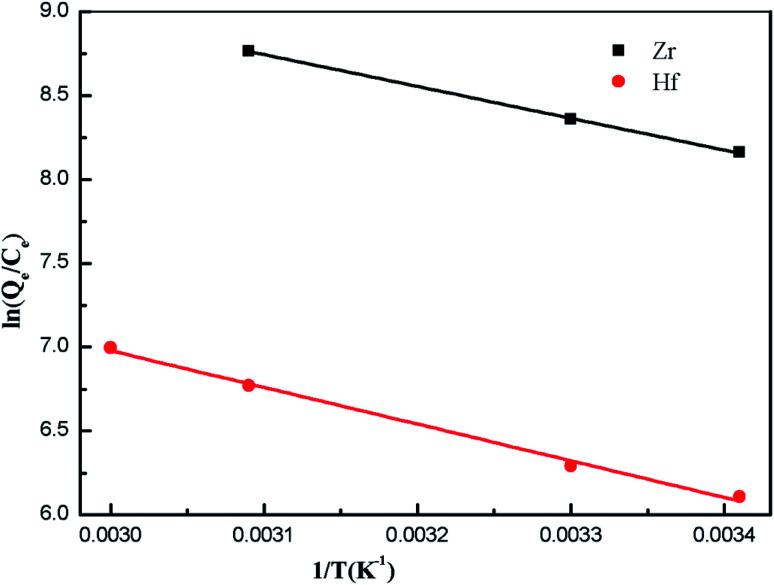

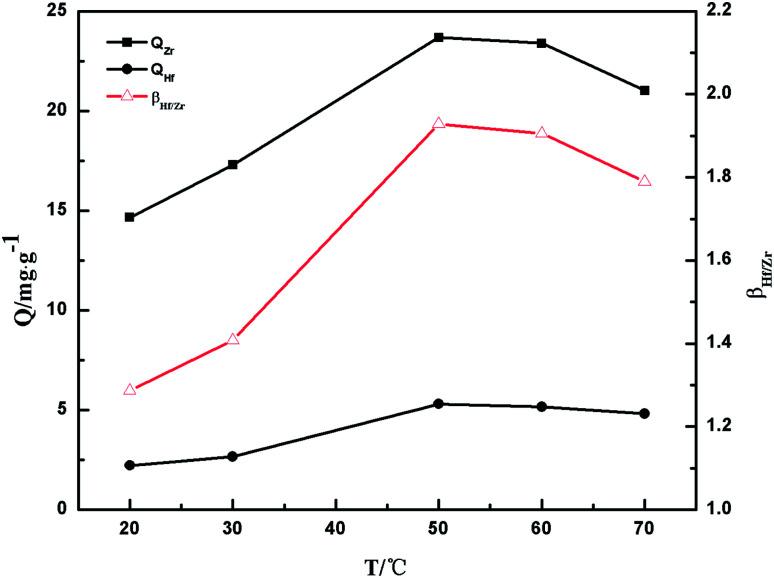

To overcome the urgency of zirconium and hafnium separation, a novel mesoporous silica sorbent (PS-G1.0-MSNs) modified with phosphorous-functionalized G1.0 PAMAM dendrimers was prepared. The adsorption and separation behaviors of PS-G1.0-MSNs adsorbent on Zr(iv) and Hf(iv) were perfromed as a function of acidity, contact time, temperature, and ion concentrations by batch sorption methods. The maximum adsorption capacities for Zr(iv) and Hf(iv) were 25.7 mg g and 5.36 mg g under optimal experimental conditions, respectively, and the separation factor = 2.0 > 1 demonstrated that the prepared sorbent had preferential selectivity for Hf(iv) in rich Zr(iv) solution. Moreover, kinetic data indicated that the sorption process on Zr(iv) and Hf(iv) achieved equilibrium within 120 min, and followed the pseudo-first-order model with a rate-determining step. The adsorption amount increased as temperature raised from 283 K to 303 K and the isothermal data plotted with the Langmuir model was better than the Freundlich model with monolayer behavior. Thermodynamic data analysis indicated that the sorption process was spontaneous and endothermic. Furthermore, XPS analysis revealed that the metal ion adsorption was mainly induced by the chemical coordination of Zr(iv) and Hf(iv) ions with N, O, P atoms of amide and phosphate groups. The present work provides good guidelines on the design of high efficient sorbent for the separation of Hf(iv) from Zr(iv) solutions.
为了克服锆和铪分离的紧迫性,制备了一种用磷功能化的G1.0 PAMAM树枝状大分子修饰的新型介孔二氧化硅吸附剂(PS-G1.0-MSNs)。采用分批吸附法研究了PS-G1.0-MSNs吸附剂对Zr(IV)和Hf(IV)的吸附和分离行为,考察了酸度、接触时间、温度和离子浓度的影响。在最佳实验条件下,Zr(IV)和Hf(IV)的最大吸附容量分别为25.7 mg/g和5.36 mg/g,分离因子β = 2.0 > 1,表明所制备的吸附剂在富Zr(IV)溶液中对Hf(IV)具有优先选择性。此外,动力学数据表明,Zr(IV)和Hf(IV)的吸附过程在120 min内达到平衡,且遵循速率决定步骤的准一级模型。随着温度从283 K升高到303 K,吸附量增加,用Langmuir模型绘制的等温线数据比具有单层行为的Freundlich模型更好。热力学数据分析表明,吸附过程是自发的且吸热的。此外,XPS分析表明,金属离子的吸附主要是由Zr(IV)和Hf(IV)离子与酰胺和磷酸基团的N、O、P原子的化学配位引起的。本工作为设计从Zr(IV)溶液中分离Hf(IV)的高效吸附剂提供了良好的指导。
