Farea M O, Abdelghany A M, Oraby A H
Physics Department, Faculty of Science, Ibb University Yemen.
Physics Department, Faculty of Science, Mansoura University Egypt
RSC Adv. 2020 Oct 12;10(62):37621-37630. doi: 10.1039/d0ra07601e.

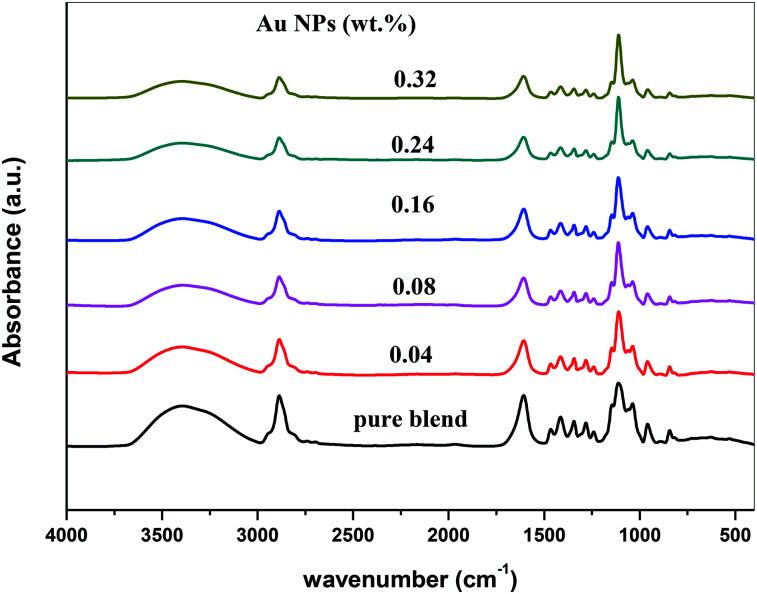

Films of polyethylene oxide and sodium alginate polymer blend (50/50 wt%) embedded with different quantities of Au nanoparticles with size 3-32 nm were made using the casting process. The nanocomposite films were examined by XRD analysis, FT-IR spectroscopy, TEM, UV/vis spectroscopy, and AC conductivity and dielectric parameter measurements. The XRD spectra revealed the amorphous nature of the prepared films (PEO/SA-Au NPs). From the Fourier transform infrared spectra it can be seem that the intensity of the FT-IR bands decreased which depicted the existence of the interaction between (PEO/SA) virgin polymer and gold nanoparticles. The TEM micrographs showed a cubic-structure for Au NPs with an average size of 15-20 nm. The optical properties of the polymer composite were examined by ultraviolet-visible techniques. In a direct transition the optical energy gap ( ) of the prepared films is decreased from 4.73 to 2.92 eV and in an indirect transition decreased from 2.95 to 1.50 eV. The dielectric and electrical spectra of the obtained films were examined dielectric broad-band spectroscopy. The electrical and dielectric measurements are appropriate for the use of the polymer nanocomposite films in the fabrication of electroactive materials.
采用流延法制备了含有不同数量尺寸为3 - 32纳米金纳米粒子的聚环氧乙烷与海藻酸钠聚合物共混物(50/50重量比)薄膜。通过X射线衍射分析、傅里叶变换红外光谱、透射电子显微镜、紫外/可见光谱以及交流电导率和介电参数测量对纳米复合薄膜进行了检测。X射线衍射光谱显示所制备薄膜(PEO/SA - Au NPs)具有非晶态性质。从傅里叶变换红外光谱可以看出,傅里叶变换红外光谱带的强度降低,这表明(PEO/SA)原始聚合物与金纳米粒子之间存在相互作用。透射电子显微镜照片显示金纳米粒子为立方结构,平均尺寸为15 - 20纳米。通过紫外 - 可见技术研究了聚合物复合材料的光学性质。在直接跃迁中,所制备薄膜的光学能隙( )从4.73电子伏特降至2.92电子伏特,在间接跃迁中从2.95电子伏特降至1.50电子伏特。利用介电宽带光谱对所得薄膜的介电和电谱进行了检测。电学和介电测量结果表明该聚合物纳米复合薄膜适用于制备电活性材料。
