Ferrero Sergio, Barbero Héctor, Miguel Daniel, García-Rodríguez Raúl, Álvarez Celedonio M
GIR MIOMeT, IU CINQUIMA/Química Inorgánica, Facultad de Ciencias, Universidad de Valladolid E-47011 Valladolid Spain
RSC Adv. 2020 Oct 1;10(59):36164-36173. doi: 10.1039/d0ra07407a. eCollection 2020 Sep 28.

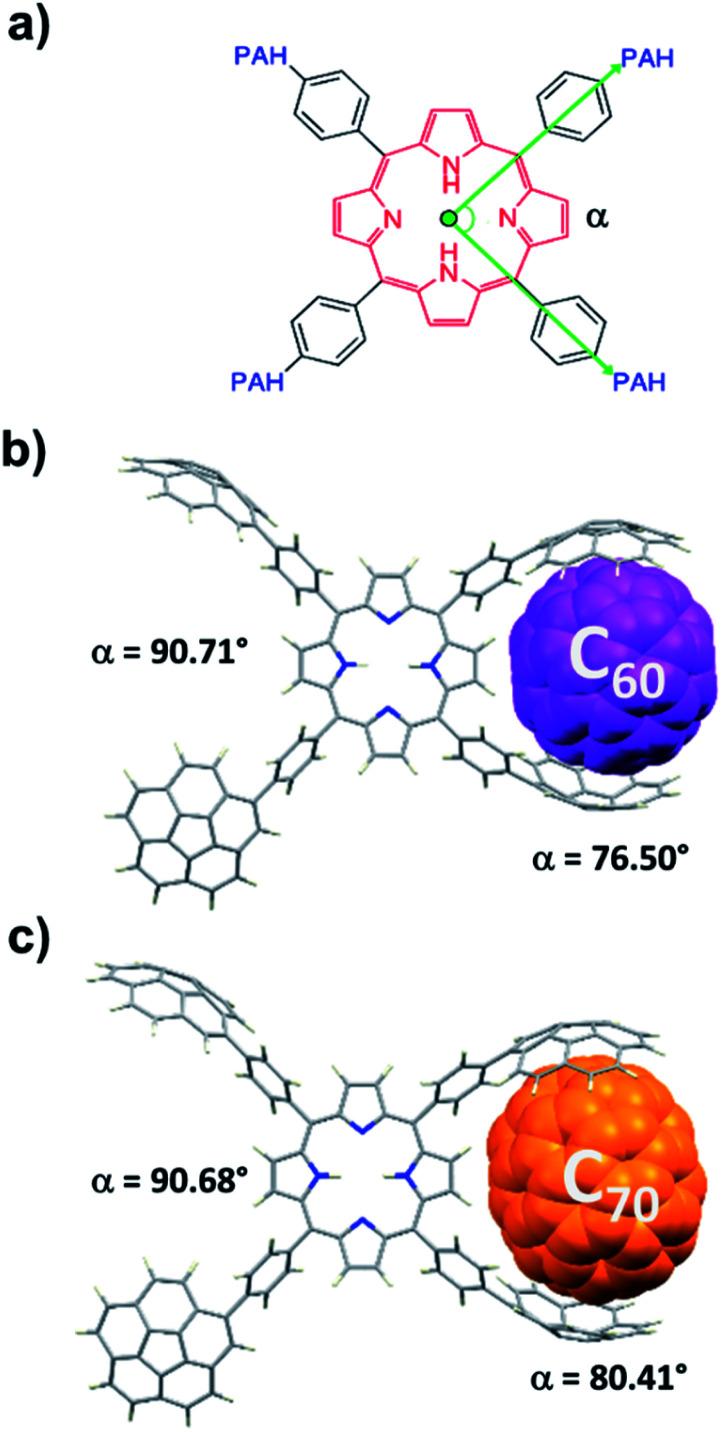

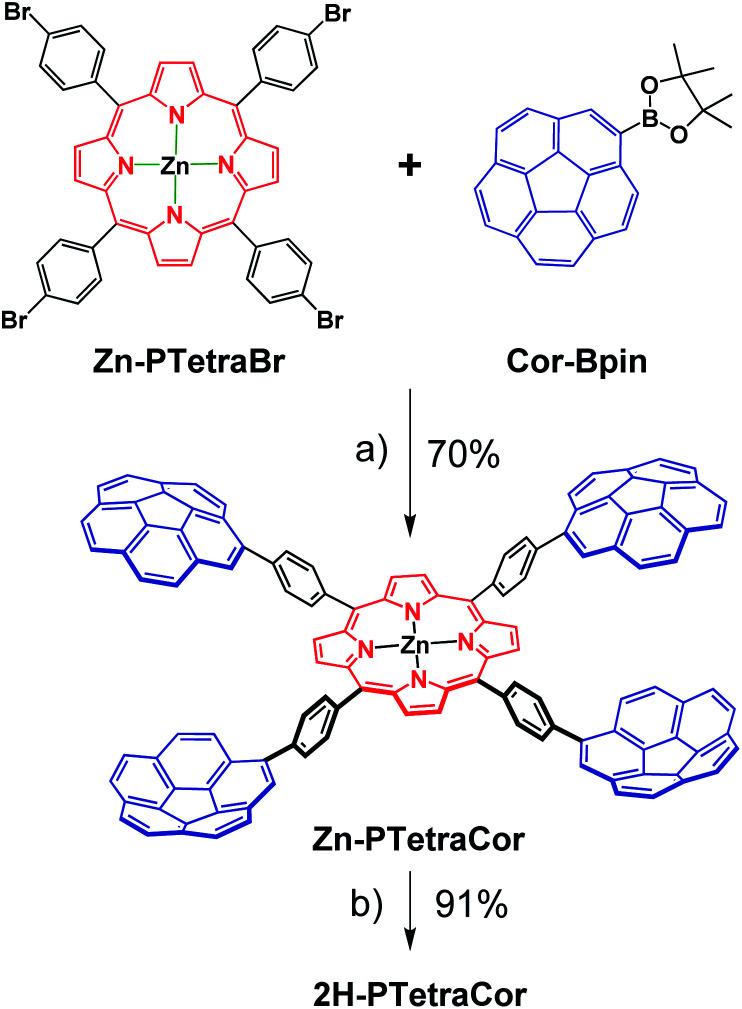

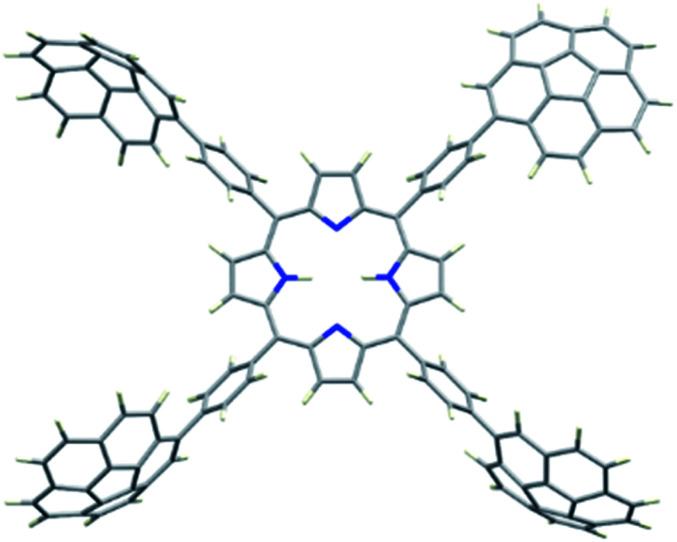

In this work, we report a two-step synthesis that allows the introduction of four pyrene or corannulene fragments at the position of -tetraarylporphyrins using a microwave-assisted quadruple Suzuki-Miyaura reaction. Placing the PAHs at this position, further from the porphyrin core, avoids the participation of the porphyrin core in binding with fullerenes. The fullerene hosting ability of the four new molecular receptors was investigated by NMR titrations and DFT studies. Despite having two potential binding sites, the pyrene derivatives did not associate with C or C. In contrast, the tetracorannulene derivatives bound C and C, although with modest binding constants. In these novel -substituted systems, the porphyrin core acts as a simple linker that does not participate in the binding process, which allows the system to be considered as two independent molecular tweezers; , the first binding event is not transmitted to the second binding site. This behavior can be considered a direct consequence of the decoupling of the porphyrin core from the binding event.
在本工作中,我们报道了一种两步合成方法,该方法利用微波辅助的四重铃木-宫浦反应,能够在-四芳基卟啉的位置引入四个芘或碗烯片段。将多环芳烃置于该离卟啉核较远的位置,可避免卟啉核参与与富勒烯的结合。通过核磁共振滴定和密度泛函理论研究,对这四种新型分子受体的富勒烯容纳能力进行了研究。尽管芘衍生物有两个潜在的结合位点,但它们并未与C或C缔合。相反,四碗烯衍生物与C和C结合,不过结合常数适中。在这些新型的-取代体系中,卟啉核充当不参与结合过程的简单连接体,这使得该体系可被视为两个独立的分子镊子;也就是说,第一次结合事件不会传递到第二个结合位点。这种行为可被视为卟啉核与结合事件解耦的直接结果。
