氯化锌活化对核桃壳衍生纳米多孔碳吸波性能的影响

The effect of ZnCl activation on microwave absorbing performance in walnut shell-derived nano-porous carbon.

作者信息

Wang Lixi, Zhou Panpan, Guo Yu, Zhang Jing, Qiu Xu, Guan Yongkang, Yu Mingxun, Zhu Hongli, Zhang Qitu

机构信息

College of Materials Science and Engineering, Nanjing Tech University Nanjing 210009 China

Jiangsu Collaborative Innovation Center for Advanced Inorganic Function Composites Nanjing 210009 China.

出版信息

RSC Adv. 2019 Mar 27;9(17):9718-9728. doi: 10.1039/c8ra09932d. eCollection 2019 Mar 22.


DOI:10.1039/c8ra09932d
PMID:35520714
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9062120/
Abstract

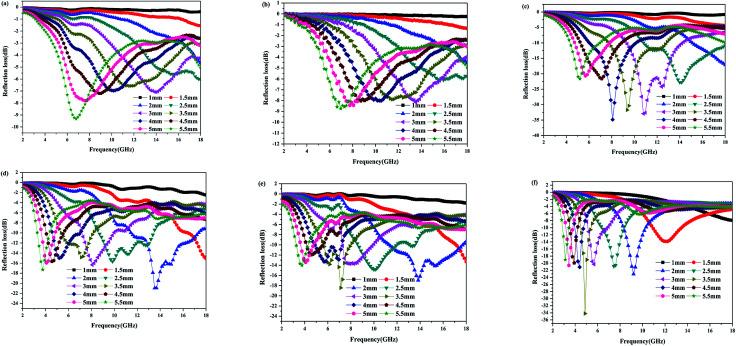

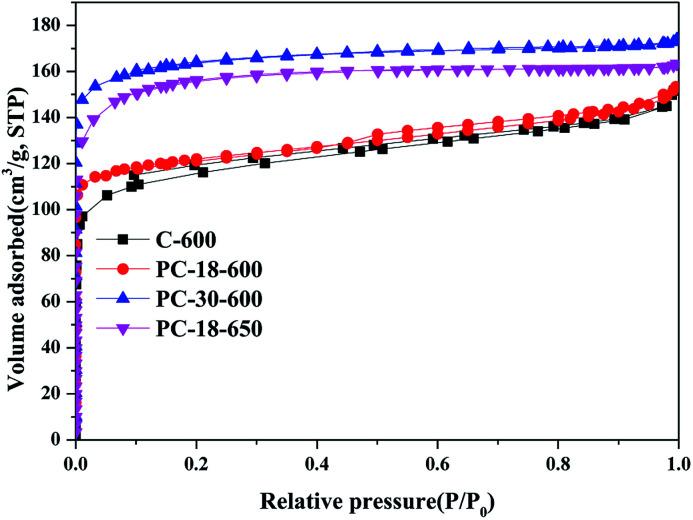

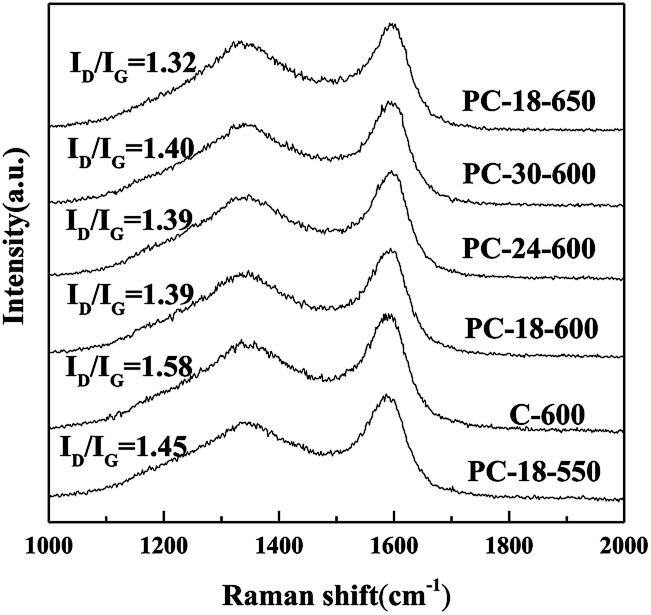

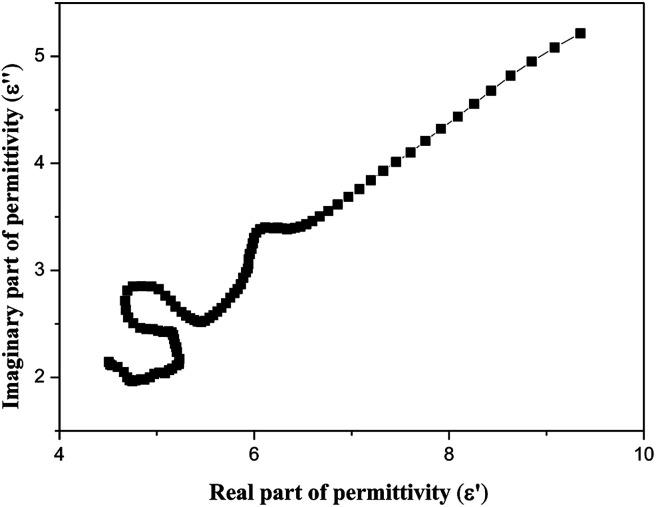

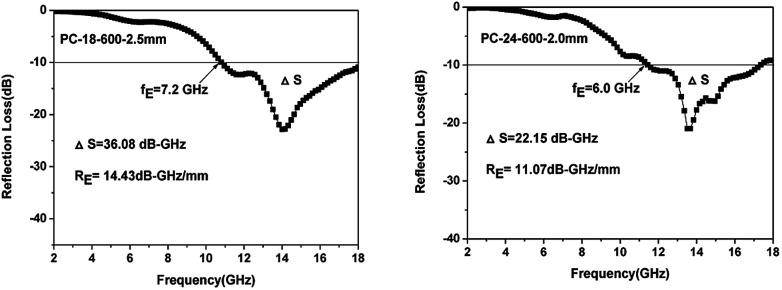

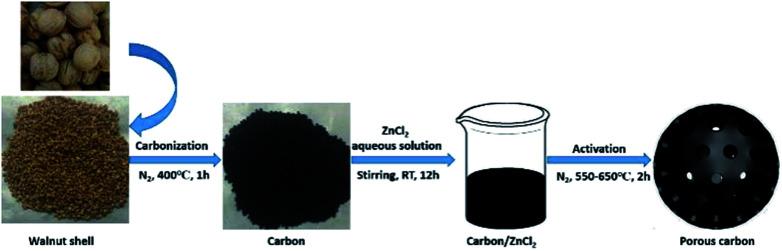

Porous carbon has been expected to be a potential candidate as a lightweight and efficient microwave absorber. Nano-porous carbon carbonized directly from a walnut shell exhibits narrow microwave absorption frequency bandwidth, while the activation process can adjust the pore structure and optimize the microwave absorption performance. Herein, porous carbon materials were successfully prepared using walnut shells as precursors and ZnCl as the activating agent. The superior microwave absorption performances of the as-prepared samples could be attributed to the well-developed pore structures and the enhanced dielectric loss capacities of the samples. The interfacial polarization in the walls of the pores and the defects in the samples significantly contributed to the enhancement of the dielectric loss capacities of the samples. In this work, the broadband microwave absorbing porous carbon exhibited an effective absorption bandwidth (reflection loss ≤ -10 dB) of 7.2 GHz (ranging from 10.8 GHz to 18.0 GHz) when the absorber thickness was 2.5 mm. In addition, an effective absorption bandwidth of 6.0 GHz (ranging from 11.4 GHz to 17.4 GHz) could also be achieved when the absorber thickness was only 2.0 mm. The samples exhibited low densities, strong microwave absorption performances and wide effective absorption bandwidths with thin absorber thicknesses, due to which they have a great potential as lightweight and efficient microwave absorbers.

摘要

多孔碳有望成为一种轻质高效的微波吸收剂的潜在候选材料。直接由核桃壳碳化得到的纳米多孔碳表现出较窄的微波吸收频率带宽,而活化过程可以调整孔结构并优化微波吸收性能。在此,以核桃壳为前驱体、ZnCl为活化剂成功制备了多孔碳材料。所制备样品优异的微波吸收性能可归因于其发达的孔结构以及样品介电损耗能力的增强。孔壁中的界面极化和样品中的缺陷对样品介电损耗能力的增强有显著贡献。在这项工作中,当吸收体厚度为2.5 mm时,宽带微波吸收多孔碳的有效吸收带宽(反射损耗≤ -10 dB)为7.2 GHz(范围从10.8 GHz到18.0 GHz)。此外,当吸收体厚度仅为2.0 mm时,也可实现6.0 GHz(范围从11.4 GHz到17.4 GHz)的有效吸收带宽。这些样品密度低、微波吸收性能强且在吸收体厚度薄的情况下具有宽的有效吸收带宽,因此它们作为轻质高效的微波吸收剂具有巨大潜力。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/75267729d0f2/c8ra09932d-f10.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/836cb2261a75/c8ra09932d-f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/988245e70aa4/c8ra09932d-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/fed6dd576d17/c8ra09932d-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/09eaadacbc66/c8ra09932d-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/c240dc0528e2/c8ra09932d-f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/ad8cdc0b6883/c8ra09932d-f6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/8e0b9e3af205/c8ra09932d-f7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/585e083c2406/c8ra09932d-f8.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/07bd6ae406e9/c8ra09932d-f9.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/75267729d0f2/c8ra09932d-f10.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/836cb2261a75/c8ra09932d-f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/988245e70aa4/c8ra09932d-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/fed6dd576d17/c8ra09932d-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/09eaadacbc66/c8ra09932d-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/c240dc0528e2/c8ra09932d-f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/ad8cdc0b6883/c8ra09932d-f6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/8e0b9e3af205/c8ra09932d-f7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/585e083c2406/c8ra09932d-f8.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/07bd6ae406e9/c8ra09932d-f9.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a21c/9062120/75267729d0f2/c8ra09932d-f10.jpg
