一种新型且有前景的聚合物发泡成核剂:中空分子筛颗粒对聚丙烯超临界CO₂微孔发泡的影响
A new promising nucleating agent for polymer foaming: effects of hollow molecular-sieve particles on polypropylene supercritical CO microcellular foaming.
作者信息
Yang Chenguang, Wang Mouhua, Xing Zhe, Zhao Quan, Wang Minglei, Wu Guozhong
机构信息
Shanghai Institute of Applied Physics, Chinese Academy of Sciences Jialuo Road 2019, Jiading Shanghai 201800 China
University of China Academy of Sciences Beijing 100049 China.
出版信息
RSC Adv. 2018 Jun 4;8(36):20061-20067. doi: 10.1039/c8ra03071e. eCollection 2018 May 30.

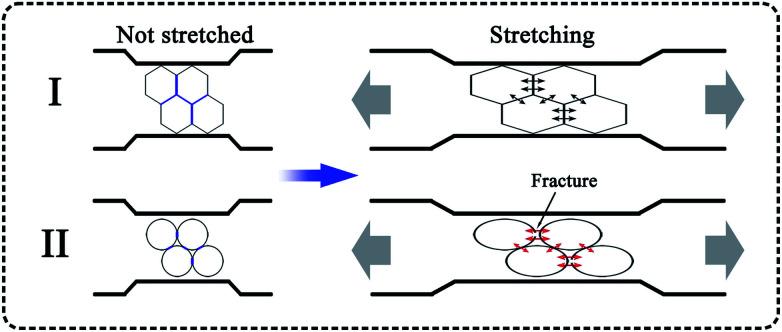

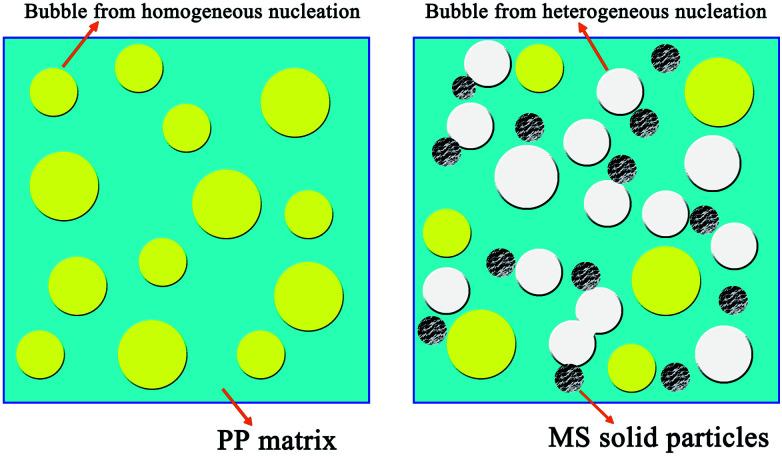

Because polypropylene (PP) foam normally exhibits nonuniform cell size and cracked cellular structure, a narrow cell-size distribution and a well-defined morphology are always the focus of PP foaming technology. In this work, hollow molecular-sieve (MS) particles were applied as a potential nucleating agent in supercritical carbon dioxide (scCO) foaming of PP. It was observed that the addition of MS particles largely narrowed the cell-size distribution. The resultant PP/MS foams exhibited significant concurrent enhancement in their cell density and mechanical properties: the cell density increased remarkably, by approximately 10 times, and the tensile strength increased from 6.1 MPa to 12.6 MPa. The hollow-structure MS particles resulted in a higher heterogeneous nucleation efficiency in the PP foaming process. We believe that the trapping of CO in the hollow holes of MS particles largely increased the solubility CO in PP and a number of gas cavities were formed. The existence of gas cavities reduced the energy barrier of heterogeneous nucleation, favoring the formation of a well-defined cellular structure. Additionally, the regular-hexagon shape of the cells might endow the PP foam with better mechanical properties compared with a circular cell shape.
由于聚丙烯(PP)泡沫通常呈现出不均匀的泡孔尺寸和破裂的泡孔结构,泡孔尺寸分布窄且形态明确一直是PP发泡技术的重点。在这项工作中,中空分子筛(MS)颗粒被用作PP在超临界二氧化碳(scCO₂)发泡过程中的潜在成核剂。据观察,添加MS颗粒大大缩小了泡孔尺寸分布。所得的PP/MS泡沫在泡孔密度和力学性能方面同时有显著提高:泡孔密度显著增加,约增加了10倍,拉伸强度从6.1MPa提高到12.6MPa。中空结构的MS颗粒在PP发泡过程中产生了更高的异相成核效率。我们认为,CO₂被困在MS颗粒的中空孔中大大提高了CO₂在PP中的溶解度,并形成了许多气孔。气孔的存在降低了异相成核的能量势垒,有利于形成明确的泡孔结构。此外,与圆形泡孔形状相比,正六边形的泡孔可能使PP泡沫具有更好的力学性能。
