Kim MinSu, Serra Francesca
Department of Physics and Astronomy, Johns Hopkins University Baltimore 21218 USA
RSC Adv. 2018 Oct 17;8(62):35640-35645. doi: 10.1039/c8ra08251k. eCollection 2018 Oct 15.

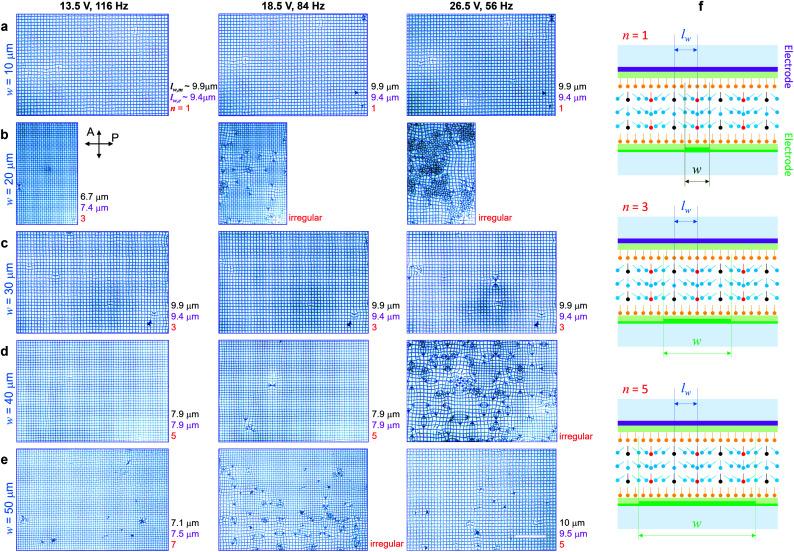

Arrays of topological defects in liquid crystals are fascinating systems, as isotropic and anisotropic phases of the same material can co-exist and be arranged in regular periodic structures. The arrays thus form spatially-varying optical pathways, in patterns that can be used for optics, as novel photonic structures, optical gratings, lenses or metamaterials, and for molecular and colloidal self-assembly. However, for practical applications, it is necessary that the arrays are tunable without direct intervention of the experimenters. Here, we demonstrate single-domain, tunable arrays of topological defects in nematic liquid crystals, using a method inspired by the recent work by Orihara and colleagues. The regularity and domain size of the defect arrays are obtained by using periodic lateral modulation of electric fields generated by incompletely etched electrodes with periodic conductivity. The period of the arrays, the characteristic spacing between defects, is controllable not only through the applied electric field strength and frequency but also by varying the size of the patterned electrodes. We believe these results open a new way to design and fabricate large-scale, single-domain, tunable and scalable device architectures that are optically functional.
液晶中的拓扑缺陷阵列是令人着迷的系统,因为同一材料的各向同性和各向异性相可以共存并排列成规则的周期性结构。这些阵列因此形成空间变化的光路,其图案可用于光学领域,作为新型光子结构、光栅、透镜或超材料,以及用于分子和胶体自组装。然而,对于实际应用而言,阵列必须在无需实验者直接干预的情况下进行调谐。在此,我们借鉴折原及其同事最近的工作方法,展示了向列型液晶中拓扑缺陷的单畴可调谐阵列。通过对具有周期性导电性的未完全蚀刻电极产生的电场进行周期性横向调制,可获得缺陷阵列的规则性和畴尺寸。阵列的周期,即缺陷之间的特征间距,不仅可以通过施加的电场强度和频率来控制,还可以通过改变图案化电极的尺寸来控制。我们相信这些结果为设计和制造具有光学功能的大规模、单畴、可调谐且可扩展的器件架构开辟了一条新途径。
