Xing Yi, Li Zhongyu, Baryshnikov Glib V, Shen Shen, Ye Danfeng, Ågren Hans, Zhu Liangliang
State Key Laboratory of Molecular Engineering of Polymers, Department of Macromolecular Science, Fudan University Shanghai 200438 China
Laboratory of Organic Electronics, Department of Science and Technology, Linköping University 60174 Norrköping Sweden.
Chem Sci. 2022 Apr 26;13(20):6067-6073. doi: 10.1039/d2sc00908k. eCollection 2022 May 25.

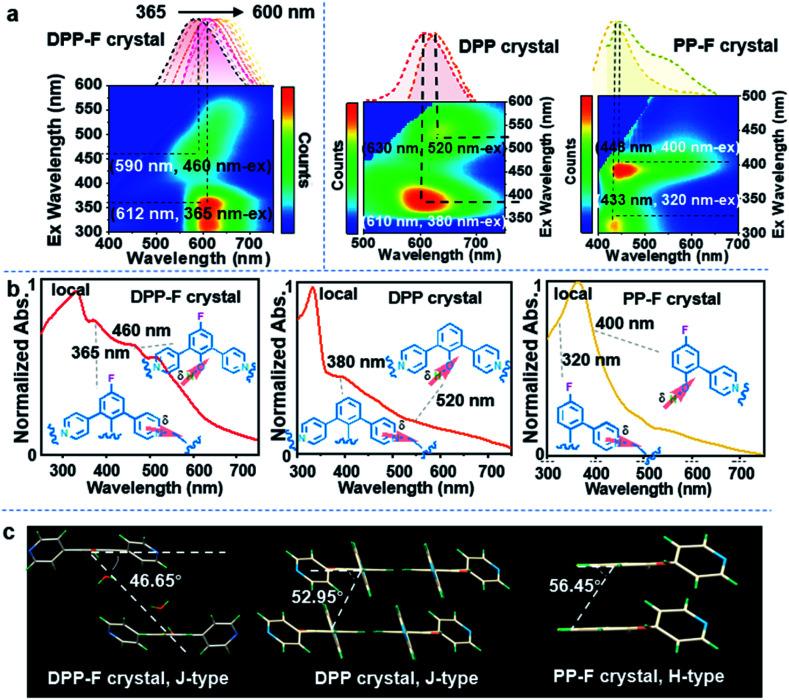

In the solid state, the molecular polarization of donor-acceptor (D-A) molecules can be implemented in a simple way the use of an external polarizing source (, an electric field). However, internal chemical polarization approaches are less studied due to difficulties related to controlling the charge-separation orientation in the solid state. Herein, a series of D-A molecules with both a proton donor and an acceptor were designed. Water-based molecular bridges were then established in their crystal structures, which firmly and alternately connected the proton donor of one molecule and the acceptor of another an intermolecular H-bond network. In this way, the selective dual polarization of a phenolic hydroxyl group and a pyridinyl group could be achieved, owing to the strengthening of the charge-separation orientation upon the simultaneous deprotonation and protonation of the D-A molecules. This effect led to a 3-5-fold amplification of the molecular dipole moment in the crystal form relative to the monomeric state. On this basis, multi-excitation and multi-emission characteristics were achieved in these charge-separated crystals, endowing them with the ability to visually detect the energy of a light source, covering a wide range of the UV-Vis spectral region. This work provides a practical chemical approach for developing intrinsically polarized systems that can exhibit stable but distinct molecular photophysical properties.
在固态中,供体-受体(D-A)分子的分子极化可以通过使用外部极化源(如电场)以简单的方式实现。然而,由于在固态中控制电荷分离取向存在困难,内部化学极化方法的研究较少。在此,设计了一系列同时具有质子供体和受体的D-A分子。然后在其晶体结构中建立了水基分子桥,这些分子桥牢固且交替地连接一个分子的质子供体和另一个分子的受体,形成分子间氢键网络。通过这种方式,由于D-A分子同时去质子化和质子化时电荷分离取向得到加强,酚羟基和吡啶基的选择性双极化得以实现。这种效应导致晶体形式的分子偶极矩相对于单体状态放大了3至5倍。在此基础上,这些电荷分离晶体实现了多激发和多发射特性,使其能够直观地检测光源能量,覆盖紫外-可见光谱的广泛区域。这项工作为开发能够展现稳定但独特分子光物理性质的本征极化系统提供了一种实用的化学方法。
