Albanese Giulia A, Falzarano Valeria, Holmes Michael W R, Morasso Pietro, Zenzeri Jacopo
Department of Robotics, Brain and Cognitive Sciences, Istituto Italiano di Tecnologia, Genova, Italy.
Department of Informatics, Bioengineering, Robotics and Systems Engineering (DIBRIS), University of Genoa, Genoa, Italy.
Front Hum Neurosci. 2022 May 30;16:887270. doi: 10.3389/fnhum.2022.887270. eCollection 2022.

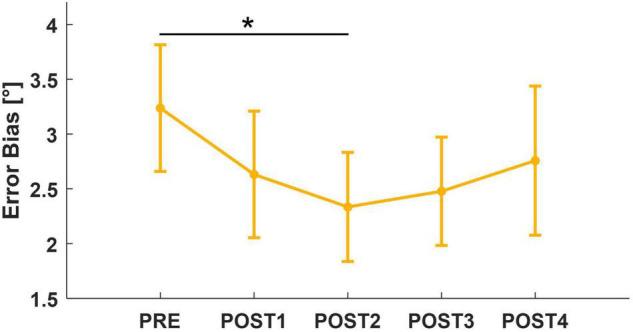

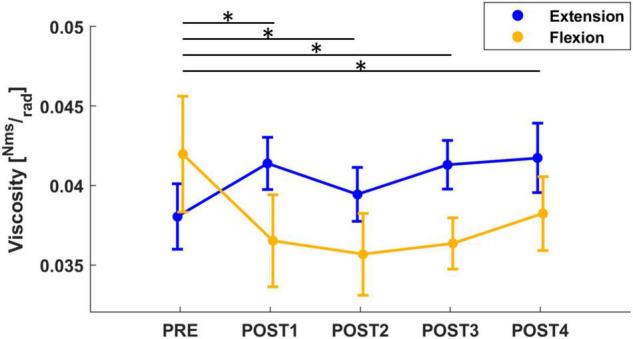

Fatigue is a temporary condition that arises as a result of intense and/or prolonged use of muscles and can affect skilled human performance. Therefore, the quantitative analysis of these effects is a topic of crucial interest in both ergonomics and clinical settings. This study introduced a novel protocol, based on robotic techniques, to quantitatively assess the effects of fatigue on the human wrist joint. A wrist manipulandum was used for two concurrent purposes: (1) implementing the fatigue task and (2) assessing the functional changes both before and at four time points after the end of the fatigue task. Fourteen participants completed the experimental protocol, which included the fatigue task and assessment sessions over 2 days. Specifically, the assessments performed are related to the following indicators: (1) isometric forces, (2) biomechanical properties of the wrist, (3) position sense, and (4) stretch reflexes of the muscles involved. The proposed fatigue task was a short-term, submaximal and dynamic wrist flexion/extension task designed with a torque opposing wrist flexion. A novel task termination criterion was employed and based on a percentage decrease in the mean frequency of muscles measured using surface electromyography. The muscle fatigue analysis demonstrated a change in mean frequency for both the wrist flexors and extensors, however, only the isometric flexion force decreased 4 min after the end of the task. At the same time point, wrist position sense was significantly improved and stiffness was the lowest. Viscosity presented different behaviors depending on the direction evaluated. At the end of the experiment (about 12 min after the end of the fatigue task), wrist position sense recovered to pre-fatigue values, while biomechanical properties did not return to their pre-fatigue values. Due to the wide variety of fatigue tasks proposed in the literature, it has been difficult to define a complete framework that presents the dynamic of fatigue-related changes in different components associated with wrist function. This work enables us to discuss the possible causes and the mutual relationship of the changes detected after the same task.
疲劳是一种由于肌肉强烈和/或长时间使用而产生的暂时状态,会影响人类的熟练操作表现。因此,对这些影响进行定量分析在人体工程学和临床环境中都是至关重要的研究课题。本研究引入了一种基于机器人技术的新型方案,用于定量评估疲劳对人体腕关节的影响。一个腕部操作器用于两个并行目的:(1)实施疲劳任务;(2)在疲劳任务结束前及结束后的四个时间点评估功能变化。14名参与者完成了该实验方案,该方案包括在2天内进行的疲劳任务和评估环节。具体而言,所进行的评估涉及以下指标:(1)等长力;(2)腕部的生物力学特性;(3)位置感知;(4)相关肌肉的牵张反射。所提出的疲劳任务是一项短期、次最大强度的动态腕部屈伸任务,设计为具有与腕部屈曲相反的扭矩。采用了一种基于使用表面肌电图测量的肌肉平均频率百分比下降的新型任务终止标准。肌肉疲劳分析表明,腕部屈肌和伸肌的平均频率均发生了变化,然而,仅在任务结束后4分钟等长屈曲力下降。在同一时间点,腕部位置感知显著改善,且刚度最低。粘性根据评估方向呈现不同表现。在实验结束时(疲劳任务结束后约12分钟),腕部位置感知恢复到疲劳前的值,而生物力学特性并未恢复到疲劳前的值。由于文献中提出的疲劳任务种类繁多,很难定义一个完整的框架来呈现与腕部功能相关的不同组件中疲劳相关变化的动态过程。这项工作使我们能够讨论同一任务后检测到的变化的可能原因及相互关系。
