Jiang Yan-Yan, Zhong Zhi-Lin, Zuo Min
Department of Magnetic Resonance, Wuhan Asia General Hospital, Wuhan 430056, Hubei Province, China.
Department of Radiology, Wuhan Yaxin General Hospital, Wuhan 430056, Hubei Province, China.
World J Clin Cases. 2022 Jun 16;10(17):5586-5594. doi: 10.12998/wjcc.v10.i17.5586.
Early thrombolytic therapy is crucial to treat acute cerebral infarction, especially since the onset of thrombolytic therapy takes 1-6 h. Therefore, early diagnosis and evaluation of cerebral infarction is important.
To investigate the diagnostic value of magnetic resonance multi-delay three-dimensional arterial spin labeling (3DASL) and diffusion kurtosis imaging (DKI) in evaluating the perfusion and infarct area size in patients with acute cerebral ischemia.
Eighty-four patients who experienced acute cerebral ischemia from March 2019 to February 2021 were included. All patients in the acute stage underwent magnetic resonance-based examination, and the data were processed by the system's own software. The apparent diffusion coefficient (ADC), average diffusion coefficient (MD), axial diffusion (AD), radial diffusion (RD), average kurtosis (MK), radial kurtosis (fairly RK), axial kurtosis (AK), and perfusion parameters post-labeling delays (PLD) in the focal area and its corresponding area were compared. The correlation between the lesion area of cerebral infarction under MK and MD and T2-weighted imaging (T2WI) was analyzed.

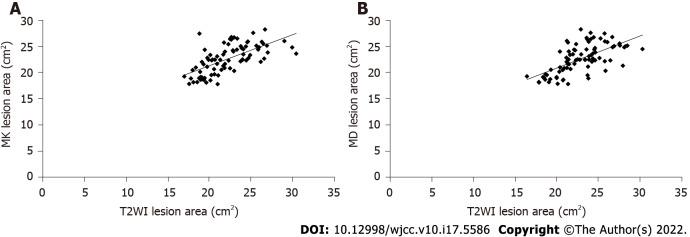

The DKI parameters of focal and control areas in the study subjects were compared. The ADC, MD, AD, and RD values in the lesion area were significantly lower than those in the control area. The MK, RK, and AK values in the lesion area were significantly higher than those in the control area. The MK/MD value in the infarct lesions was used to determine the matching situation. MK/MD < 5 mm was considered matching and MK/MD ≥ 5 mm was considered mismatching. PLD1.5s and PLD2.5s perfusion parameters in the central, peripheral, and control areas of the infarct lesions in MK/MD-matched and -unmatched patients were not significantly different. PLD1.5s and PLD2.5s perfusion parameter values in the central area of the infarct lesions in MK/MD-matched and -unmatched patients were significantly lower than those in peripheral and control areas. The MK and MD maps showed a lesion area of 20.08 ± 5.74 cm and 22.09 ± 5.58 cm, respectively. T2WI showed a lesion area of 19.76 ± 5.02 cm. There were no significant differences in the cerebral infarction lesion areas measured using the three methods. MK, MD, and T2WI showed a good correlation.
DKI parameters showed significant difference between the focal and control areas in patients with acute ischemic cerebral infarction. 3DASL can effectively determine the changes in perfusion levels in the lesion area. There was a high correlation between the area of the infarct lesions diagnosed by DKI and T2WI.
早期溶栓治疗对于急性脑梗死的治疗至关重要,尤其是因为溶栓治疗的开始时间为1 - 6小时。因此,脑梗死的早期诊断和评估很重要。
探讨磁共振多延迟三维动脉自旋标记(3DASL)和扩散峰度成像(DKI)在评估急性脑缺血患者灌注及梗死灶面积大小方面的诊断价值。
纳入2019年3月至2021年2月经历急性脑缺血的84例患者。所有急性期患者均接受基于磁共振的检查,并通过系统自带软件处理数据。比较梗死灶局部及其对应区域的表观扩散系数(ADC)、平均扩散系数(MD)、轴向扩散(AD)、径向扩散(RD)、平均峰度(MK)、径向峰度(RK)、轴向峰度(AK)以及标记后延迟(PLD)灌注参数。分析MK和MD与T2加权成像(T2WI)下脑梗死灶面积之间的相关性。
比较研究对象梗死灶局部与对照区域的DKI参数。梗死灶区域的ADC、MD、AD和RD值显著低于对照区域。梗死灶区域的MK、RK和AK值显著高于对照区域。采用梗死灶病变的MK/MD值判断匹配情况。MK/MD < 5 mm为匹配,MK/MD≥5 mm为不匹配。MK/MD匹配和不匹配患者梗死灶病变中心、周边及对照区域的PLD1.5s和PLD2.5s灌注参数无显著差异。MK/MD匹配和不匹配患者梗死灶病变中心区域的PLD1.5s和PLD2.5s灌注参数值显著低于周边及对照区域。MK和MD图显示梗死灶面积分别为20.08±5.74 cm和22.09±5.58 cm。T2WI显示梗死灶面积为19.76±5.02 cm。三种方法测量的脑梗死灶面积无显著差异。MK、MD和T2WI显示出良好的相关性。
急性缺血性脑梗死患者梗死灶局部与对照区域的DKI参数存在显著差异。3DASL能有效判定梗死灶区域灌注水平的变化。DKI诊断的梗死灶面积与T2WI之间具有高度相关性。
