A Substructure Condensed Approach for Kinetostatic Modeling of Compliant Mechanisms with Complex Topology.

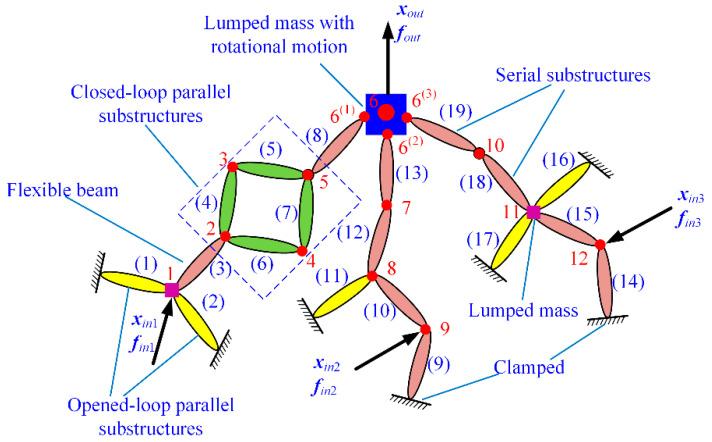

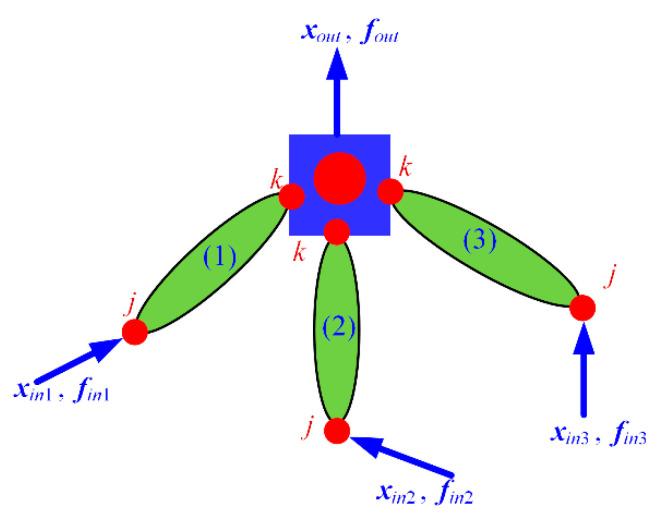

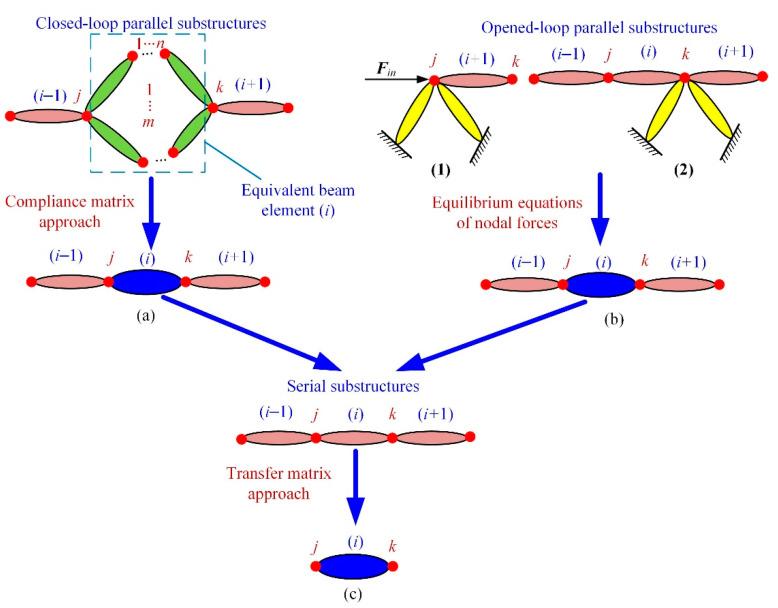

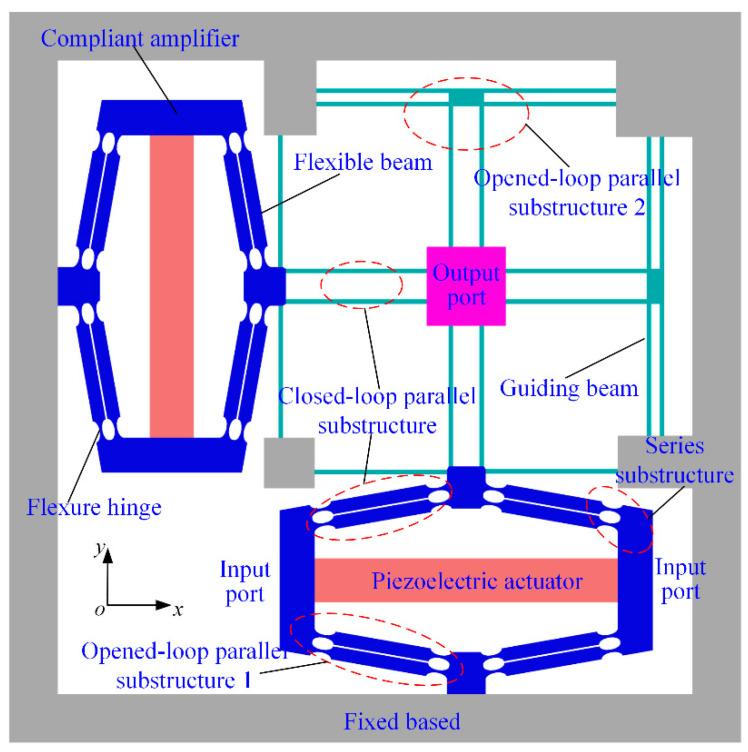

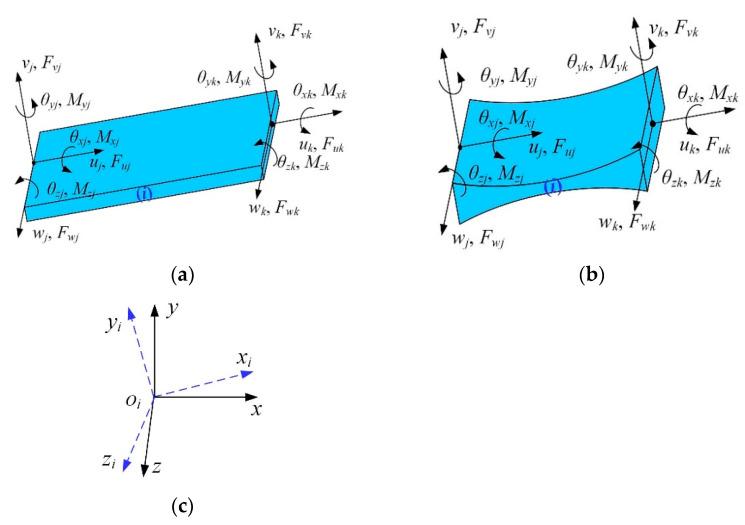

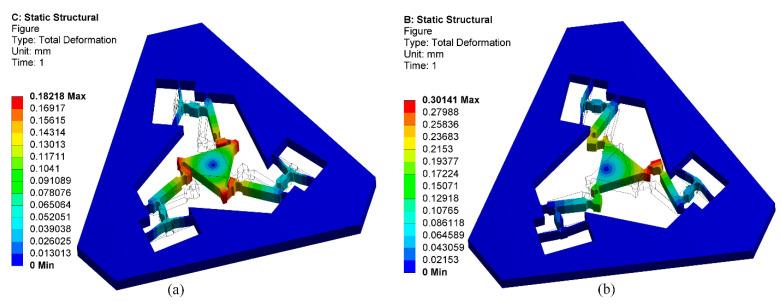

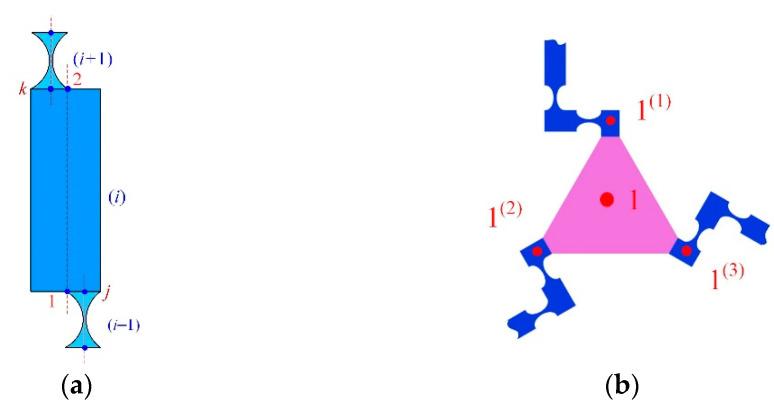

Compliant mechanisms with complex topology have previously been employed in various precision devices due to the superiorities of high precision and compact size. In this paper, a substructure condensed approach for kinetostatic analysis of complex compliant mechanisms is proposed to provide concise solutions. In detail, the explicit relationships between the theoretical stiffness matrix, element stiffness matrix, and element transfer matrix for the common flexible beam element are first derived based on the energy conservation law. The transfer matrices for three types of serial-parallel substructures are then developed by combining the equilibrium equations of nodal forces with the transfer matrix approach, so that each branch chain can be condensed into an equivalent beam element. Based on the derived three types of transfer matrices, a kinetostatic model describing only the force-displacement relationship of the input/output nodes is established. Finally, two typical precision positioning platforms with complex topology are employed to demonstrate the conciseness and efficiency of this modeling approach. The superiority of this modeling approach is that the input/output stiffness, coupling stiffness, and input/output displacement relations of compliant mechanisms with multiple actuation forces and complex substructures can be simultaneously obtained in concise and explicit matrix forms, which is distinct from the traditional compliance matrix approach.
