Studies of Structural, Dielectric, and Impedance Spectroscopy of KBT-Modified Sodium Bismuth Titanate Lead-Free Ceramics.

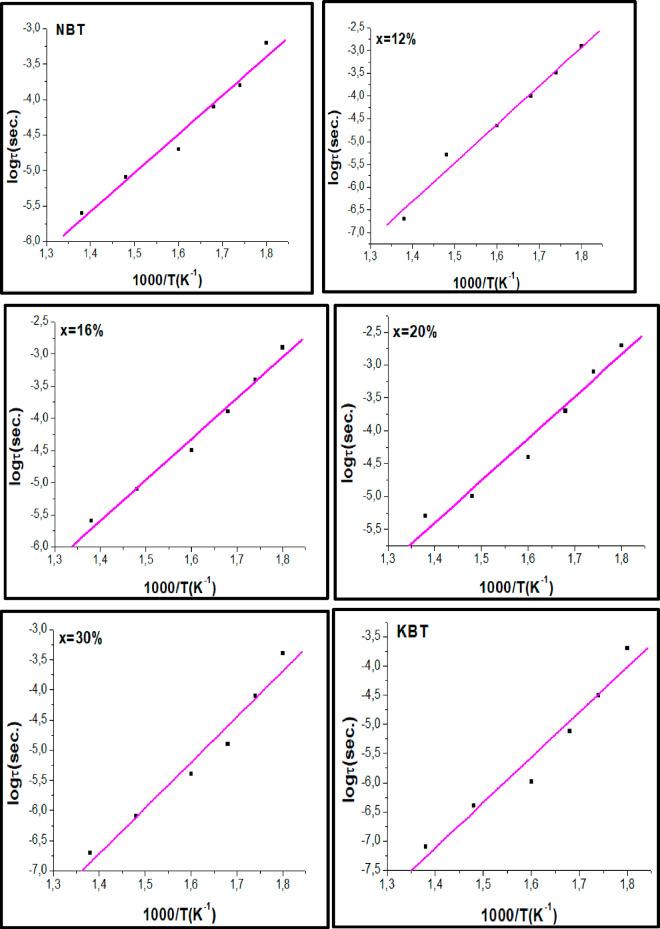

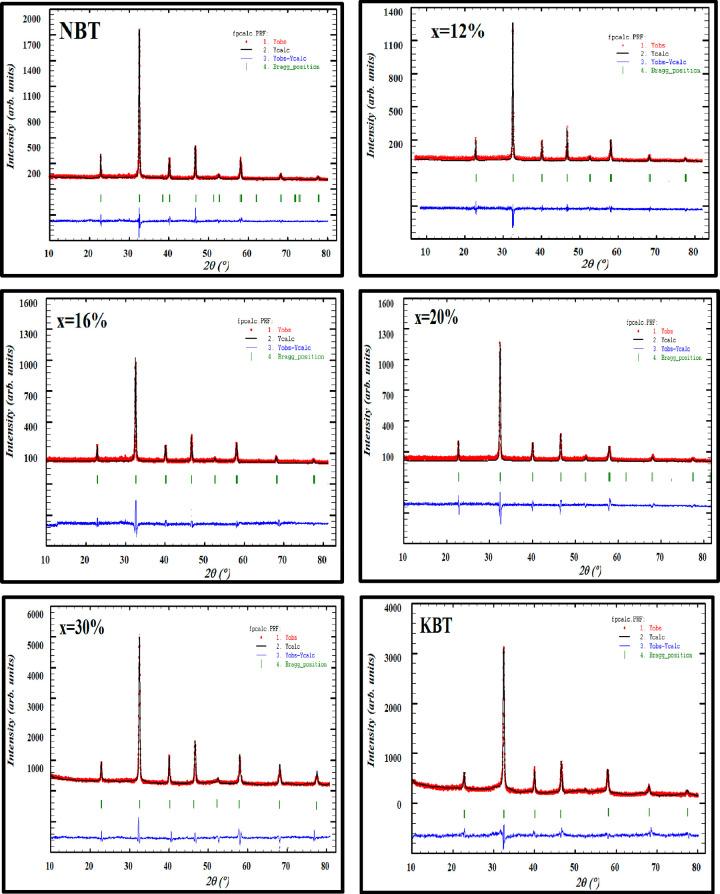

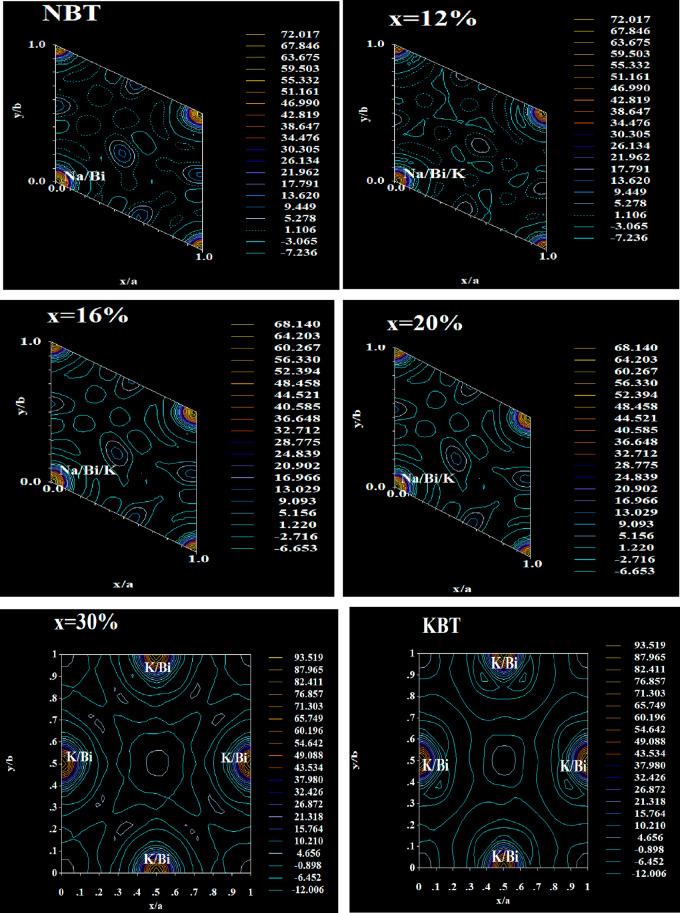

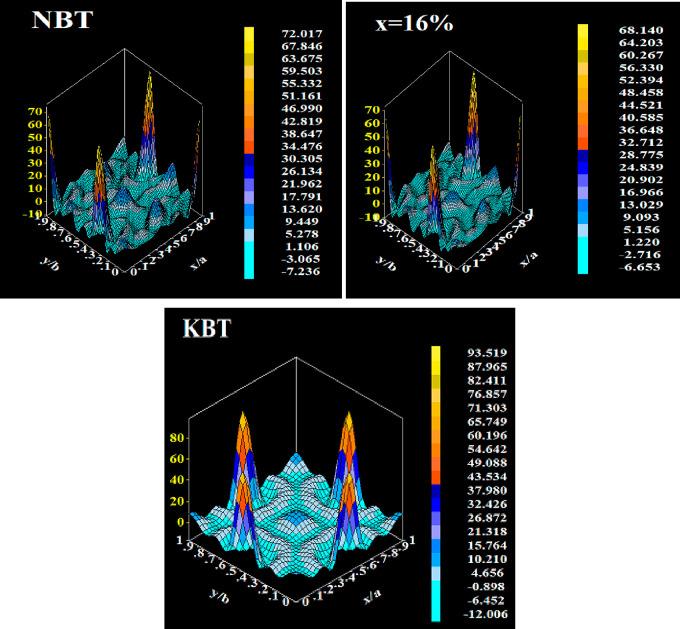

Lead-free ceramic materials produced from bismuth sodium titanate (NaBiTiO, NBT)-bismuth potassium titanate (KBiTiO, KBT) have been developed through a solid-state reaction technique. The structural, dielectric, and piezoelectric characteristics of the ceramic materials were analyzed. Based on the XRD investigation, the morphotropic phase boundary (MPB) was determined for the composition ( (%) = 16 and 20). The effects of the KBT phase on the NBT lattice were examined using the charge density distribution. Furthermore, the dielectric properties indicated the presence of a negative dielectric constant (ε') as a function of frequency between 1 kHz and 2 MHz. Negative permittivity was observed globally in the (1 - )NBT-KBT ceramic which reflects the effect of the dielectric resonance. The grain conduction effect is revealed through the complex impedance spectrum in the form of a semicircular arc within the Nyquist plot. In addition, the samples studied revealed a non-Debye relaxation phenomenon. The relaxation time was determined based on the Vogel-Fulcher law for all samples. DC conductivity was carried out on the ceramics material and revealed that the resistance decreases with increasing temperature indicating a negative temperature coefficient of resistance. The AC conductivity as a function of frequency for different temperatures suggests the presence of a thermally activated conduction mechanism. The activation energy has been determined based on the Arrhenius plot of the DC electrical conductivity as well as the relaxation frequency.
