Plasmonic vortices for tunable manipulation of target particles, using arrays of elliptical holes in a gold layer.

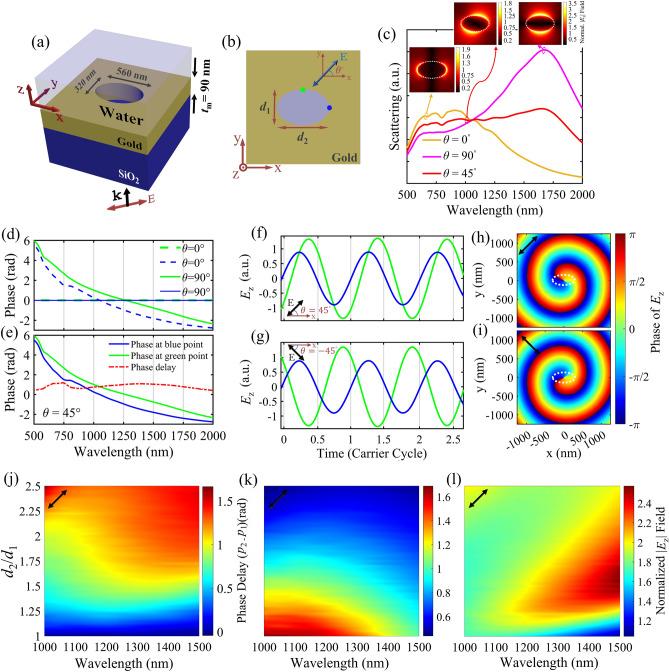

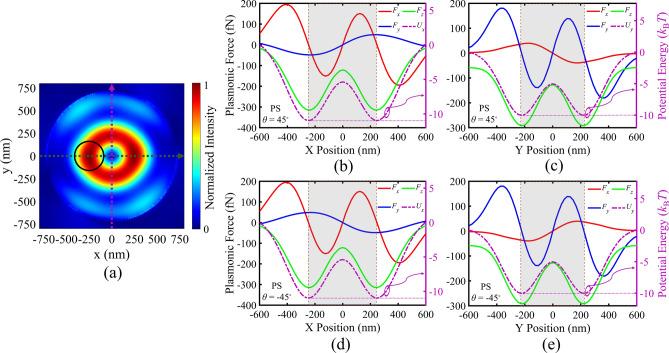

Here, we numerically prove that light with linear polarization can be coupled to surface plasmon polaritons at an elliptical hole perforated in a gold layer to generate plasmonic vortex (PV). Benefiting from the smooth variation of the minor to major ellipse axes, a gradual variation in the phase profile of the generated PV is achieved. Regarding this, three types of independent arrays of elliptical holes are presented, which can produce uniform and high quality PVs with different topological charges at the center of the arrays. The first array can produce PV with topological charges of + 1 and - 1, depending on the polarization orientation of the incident light. In the second one, the topological charge of the PV can be switched between 0 and + 2, by switching the polarization direction of the incident light. In the third array, a robust PV with topological charge of + 1 is generated independent of possible tolerances in the polarization orientation. In order to use the generated PVs for plasmonic tweezing application, there are side fringes around the central vortex of the arrays that should be eliminated. To produce a single vortex, we propose metal-insulator-metal (MIM) structures, screening excessive fringes and allowing the central PVs to leak out. It is also demonstrated by simulation that target particles, such as gold and polystyrene spheres of subwavelength dimensions, can be efficiently manipulated by our MIM designs, suitable for different applications including local mixing, and applying switchable torque or force to target particles to explore their complete elastic characteristics.
