用于可见光下降解废水中剧毒亚甲基蓝染料的新型稀土掺杂双层钙钛矿氧化物光催化剂SrLaRFeMnO(R = La、Nd、Sm、Gd、Dy):结构、光学和磁性性质

New Rare Earth-Doped Bilayered Perovskite Oxide Photocatalysts SrLaRFeMnO (R = La, Nd, Sm, Gd, Dy) for the Degradation of Highly Toxic Methylene Blue Dye in Wastewater under Visible Light: Structural, Optical, and Magnetic Properties.

作者信息

Qadir Irfan, Singh Sumit, Sharma Shikha, Manhas Ujwal, Atri Amit Kumar, Singh Devinder

机构信息

Department of Chemistry, University of Jammu, Jammu180006, India.

出版信息

ACS Omega. 2023 Jan 4;8(2):2010-2026. doi: 10.1021/acsomega.2c05221. eCollection 2023 Jan 17.

Abstract

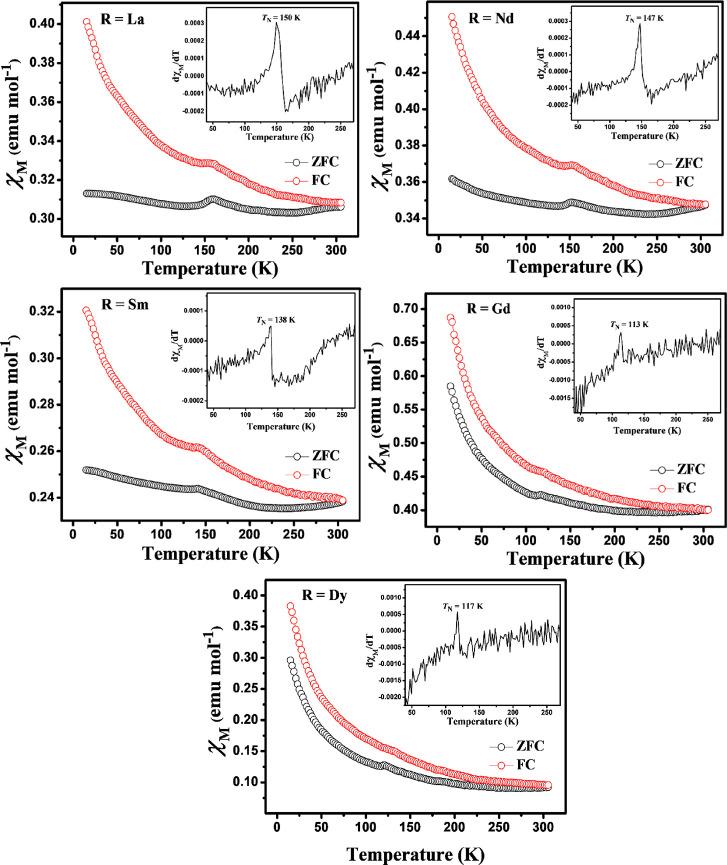

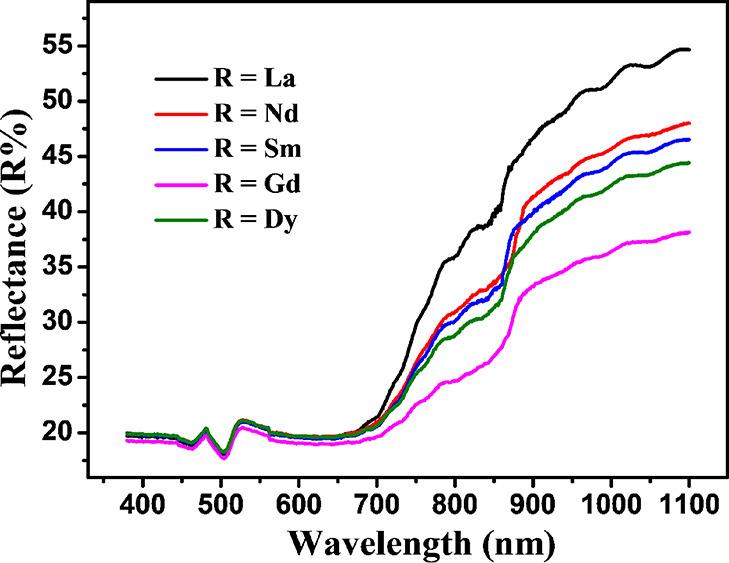

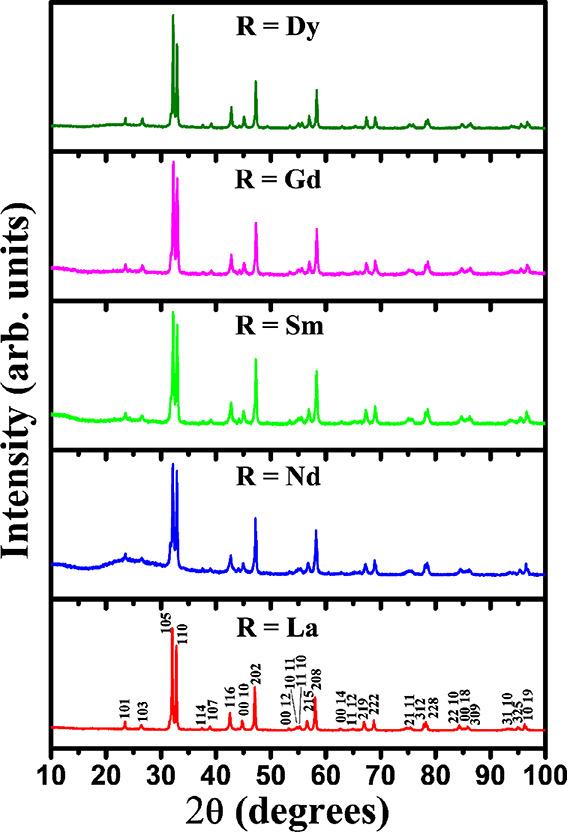

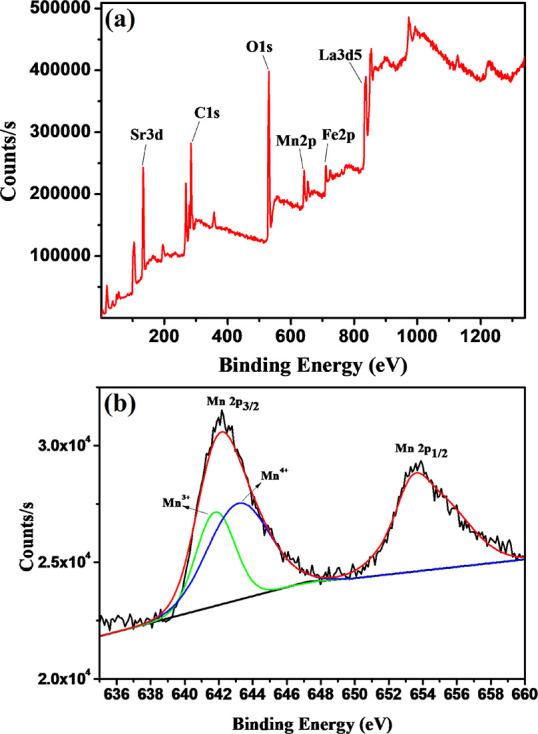

This paper presents the rare earth doping effect on the structural, optical, and magnetic properties of bilayered Ruddlesden-Popper oxides SrLaRFeMnO (R = La, Nd, Sm, Gd, Dy). Moreover, we are reporting for the first time a new rare earth-doped bilayered perovskite oxide series for the highly toxic methylene blue dye degradation in wastewater under visible light. Structural analysis of the PXRD data using the Rietveld refinements confirms the formation of the phases in tetragonal symmetry with the 4/ space group. The unit cell lattice parameters ( & ) and the cell volume () decrease monotonically from La- to Dy-doped samples owing to the decrease in the lanthanide ionic radii. The X-ray photoelectron spectroscopy analysis indicates the existence of the Mn ions in the mixed valence state. The DRS study shows that the energy band gap value decreases on moving from La to Gd substitution; however, it further increases for the Dy-doped sample. The magnetic measurements reveal that all the phases exhibit dominant anti-ferromagnetic interactions with Neel temperature ( ) observed at 150, 147, 138, 113, and 117 K for La-, Nd-, Sm-, Gd-, and Dy-substituted phases, respectively. However, the presence of an unsaturated hysteresis loop observed in the isothermal magnetic field () vs magnetization () plot also indicates the existence of weak ferromagnetic interactions. The investigation of the photocatalytic activity of the synthesized samples was done by carrying out photo-oxidative degradation of methylene blue (MB) dye pollutants. The results show that the photodegradation enhances by doping with heavier rare earth ions with the exception of the Dy-doped sample. The Gd-doped catalyst shows the maximum degradation efficiency of 99.03% in 50 min under visible light irradiation. The scavenging experiments confirmed that theOH was the main/dominant oxidizing agent involved in the degradation of the MB dye.

摘要

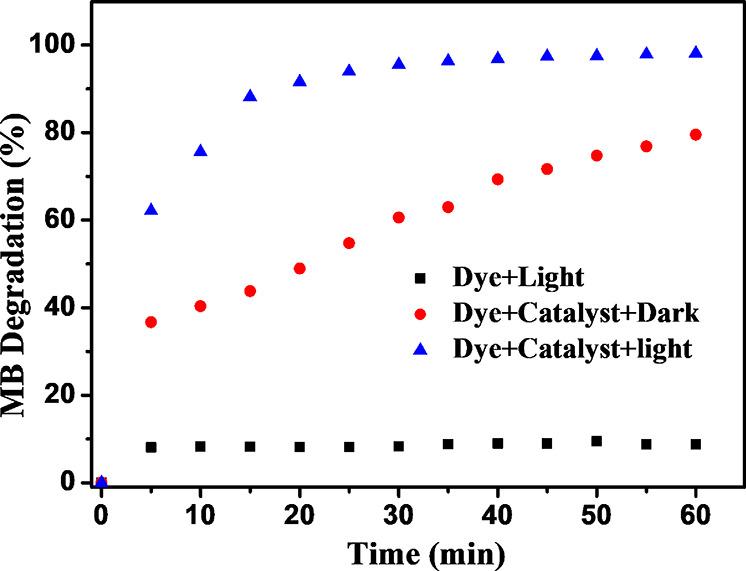

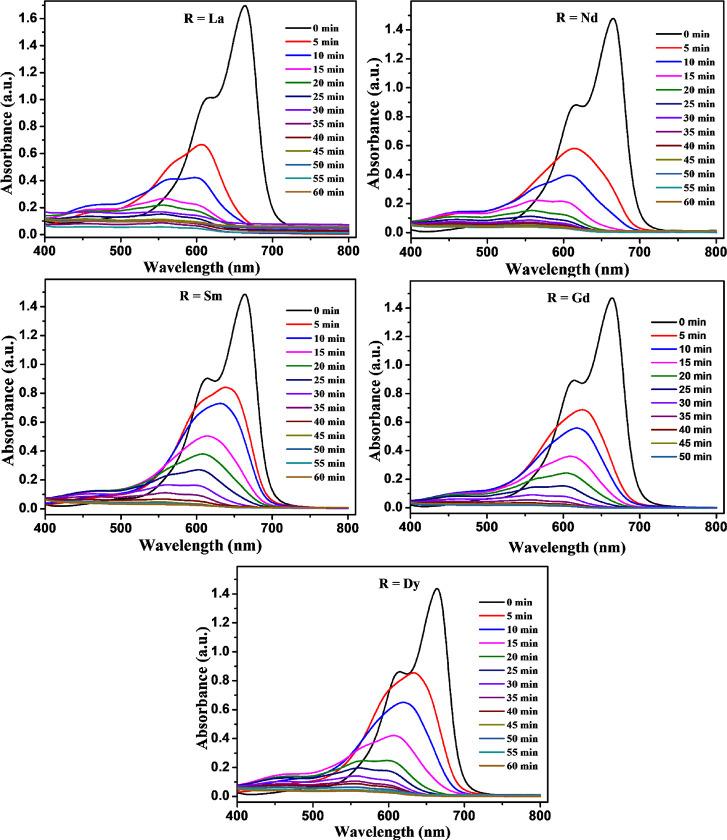

本文介绍了稀土掺杂对双层Ruddlesden-Popper氧化物SrLaRFeMnO(R = La、Nd、Sm、Gd、Dy)的结构、光学和磁性的影响。此外,我们首次报道了一种新型稀土掺杂双层钙钛矿氧化物系列,用于在可见光下对废水中剧毒的亚甲基蓝染料进行降解。使用Rietveld精修对PXRD数据进行结构分析,证实形成了具有I4/mmm空间群的四方对称相。由于镧系离子半径减小,从La掺杂到Dy掺杂的样品,晶胞晶格参数(a和c)以及晶胞体积(V)单调减小。X射线光电子能谱分析表明存在混合价态的Mn离子。DRS研究表明,从La到Gd取代,能带隙值减小;然而,Dy掺杂样品的能带隙值进一步增大。磁性测量表明,所有相均表现出主要的反铁磁相互作用,La、Nd、Sm、Gd和Dy取代相的奈尔温度(TN)分别为150、147、138、113和117K。然而,在等温磁场(H)与磁化强度(M)的关系图中观察到的不饱和磁滞回线也表明存在弱铁磁相互作用。通过对亚甲基蓝(MB)染料污染物进行光氧化降解,对合成样品的光催化活性进行了研究。结果表明,除Dy掺杂样品外,掺杂较重稀土离子可增强光降解效果。Gd掺杂催化剂在可见光照射下50分钟内的最大降解效率为99.03%。清除实验证实,·OH是参与MB染料降解的主要/主导氧化剂。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/ef41/9850717/ed6416521b05/ao2c05221_0002.jpg
