在聚合物衍生的Si-C-O-N(H)中低温固定纳米级面心立方和六方密堆积多晶型镍颗粒以促进碱性介质中的电催化水氧化

Low temperature immobilization of nanoscale fcc and hcp polymorphic nickel particles in polymer-derived Si-C-O-N(H) to promote electrocatalytic water oxidation in alkaline media.

作者信息

Morais Ferreira Roberta Karoline, Ben Miled Marwan, Nishihora Rafael Kenji, Christophe Nicolas, Carles Pierre, Motz Günter, Bouzid Assil, Machado Ricardo, Masson Olivier, Iwamoto Yuji, Célérier Stéphane, Habrioux Aurélien, Bernard Samuel

机构信息

Univ. Limoges, CNRS, IRCER UMR 7315 F-87000 Limoges France

Chemical Engineering, Federal University of Santa Catarina 88010-970 Florianópolis Brazil.

出版信息

Nanoscale Adv. 2022 Dec 6;5(3):701-710. doi: 10.1039/d2na00821a. eCollection 2023 Jan 31.

DOI:10.1039/d2na00821a
PMID:36756503
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9890898/
Abstract

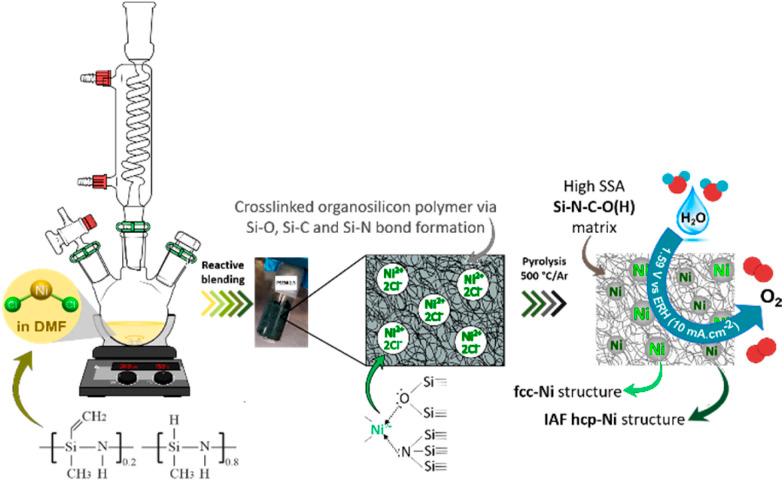

We synthesized nickel (Ni) nanoparticles (NPs) in a high specific surface area (SSA) p-block element-containing inorganic compound prepared the polymer-derived ceramics (PDC) route to dispatch the obtained nanocomposite towards oxygen evolution reaction (OER). The formation of Ni NPs in an amorphous silicon carboxynitride (Si-C-O-N(H)) matrix is allowed by the reactive blending of a polysilazane, NiCl and DMF followed by the subsequent thermolysis of the Ni : organosilicon polymer coordination complex at a temperature as low as 500 °C in flowing argon. The final nanocomposite displays a BET SSA as high as 311 m g while the structure of the NPs corresponds to face-centred cubic (fcc) Ni along with interstitial-atom free (IAF) hexagonal close-packed (hcp) Ni as revealed by XRD. A closer look into the compound through FEG-SEM microscopy confirms the formation of pure metallic Ni, while HR-TEM imaging reveals the occurrence of Ni particles featuring a fcc phase and surrounded by carbon layers; thus, forming core-shell structures, along with Ni NPs in an IAF hcp phase. By considering that this newly synthesized material contains only Ni without doping (, Fe) with a low mass loading (0.15 mg cm), it shows promising OER performances with an overpotential as low as 360 mV at 10 mA cm according to the high SSA matrix, the presence of the IAF hcp Ni NPs and the development of core-shell structures. Given the simplicity, the flexibility, and the low cost of the proposed synthesis approach, this work opens the doors towards a new family of very active and stable high SSA nanocomposites made by the PDC route containing well dispersed and accessible non-noble transition metals for electrocatalysis applications.

摘要

我们通过聚合物衍生陶瓷(PDC)路线,在一种高比表面积(SSA)含p族元素的无机化合物中合成了镍(Ni)纳米颗粒(NPs),以将所得纳米复合材料用于析氧反应(OER)。通过聚硅氮烷、NiCl和N,N-二甲基甲酰胺(DMF)的反应共混,随后在流动氩气中于低至500℃的温度下对Ni:有机硅聚合物配位络合物进行热解,使得在非晶态碳氮化硅(Si-C-O-N(H))基质中形成Ni NPs。最终的纳米复合材料显示出高达311 m²/g的BET比表面积,而XRD表明NPs的结构对应于面心立方(fcc)Ni以及无间隙原子(IAF)的六方密排(hcp)Ni。通过场发射枪扫描电子显微镜(FEG-SEM)对该化合物进行更仔细的观察,证实了纯金属Ni的形成,而高分辨率透射电子显微镜(HR-TEM)成像揭示了存在具有fcc相且被碳层包围的Ni颗粒;因此,形成了核壳结构,以及处于IAF hcp相的Ni NPs。考虑到这种新合成的材料仅含Ni而未掺杂(如Fe)且质量负载低(0.15 mg/cm²),根据高比表面积基质、IAF hcp Ni NPs的存在以及核壳结构的形成,它在10 mA/cm²时显示出低至360 mV的过电位,具有良好的OER性能。鉴于所提出的合成方法简单、灵活且成本低,这项工作为通过PDC路线制备的新型高活性和稳定的高比表面积纳米复合材料打开了大门,这些纳米复合材料含有用于电催化应用的分散良好且易于接触的非贵金属过渡金属。
