High-Temperature Sensing Based on GAWBS In Silica Single-Mode Fiber.

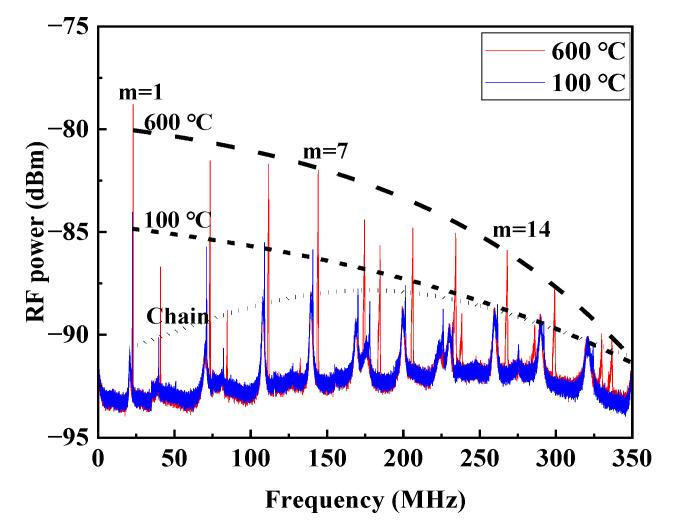

High temperature detection is a constant challenge for condition monitoring under harsh environments in optical fiber sensors research. In this study, the temperature response characteristics of guided acoustic wave Brillouin scattering (GAWBS) spectra in silica single-mode fiber (SMF) up to 800 °C are experimentally investigated, demonstrating the feasibility of the method for high-temperature monitoring. With increasing temperature, the resonance frequency of GAWBS spectra increases in a nearly linear manner, with linearly fitted temperature-dependent frequency shift coefficients of 8.19 kHz/°C for mode and 16.74 kHz/°C for mode. More importantly, the linewidth of the GAWBS spectra is observed to narrow down with increasing temperature with a linearly fitted rate of -6.91 × 10/°C for modes and -8.56 × 10/°C for modes. The signal-to-noise ratio of the GAWBS spectra induced by both modes increase by more than 3 dB when the temperature rises from 22 °C to 800 °C, which indicates that the proposed sensing scheme has better performance in high-temperature environments, and are particularly suitable for sensing applications in extreme environments. This study confirms the potential of high-temperature sensing using only GAWBS in silica fibers without any complex micromachining process, which has the advantages of strong mechanical strength, simple structure, easy operation, and low cost.
