Vertical Nanoscale Vacuum Channel Triodes Based on the Material System of Vacuum Electronics.

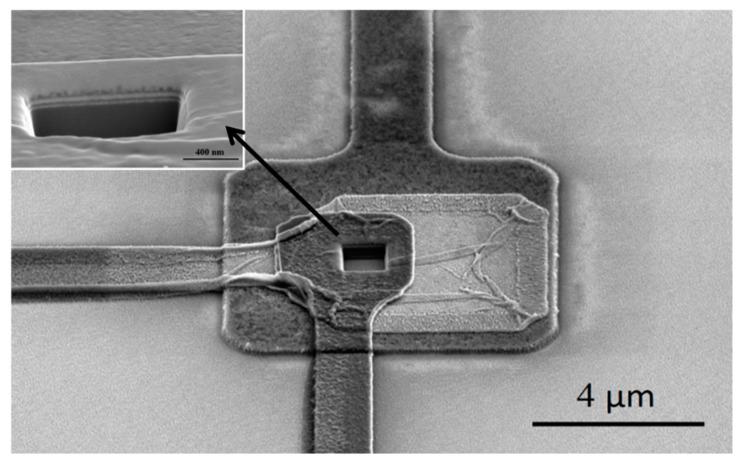

Nanoscale vacuum channel triodes realize the vacuum-like transmission of electrons in the atmosphere because the transmission distance is less than the mean free path of electrons in air. This new hybrid device is the deep integration of vacuum electronics technology, micro-nano electronics technology, and optoelectronic technology. It has the advantages of both vacuum and solid-state devices and is considered to be the next generation of vacuum electronic devices. In this work, vertical nanoscale vacuum channel diodes and triodes with edge emission were fabricated using advanced micro-nano processing technology. The device materials were all based on the vacuum electronics material system. The field emission characteristics of the devices were investigated. The diode continued emitting at a bias voltage from 0 to 50 V without failure, and the current variation under different vacuum degrees was better than 2.1%. The field emission characteristics of the devices were evaluated over a wide pressure range of between 10 Pa and 10 Pa, and the results could explain the vacuum-like behavior of the devices when operating in air. The current variation of the triode is better than 6.1% at V = 8 V and V = 10 V.
