Imaging the subsurface architecture in porphyry copper deposits using local earthquake tomography.

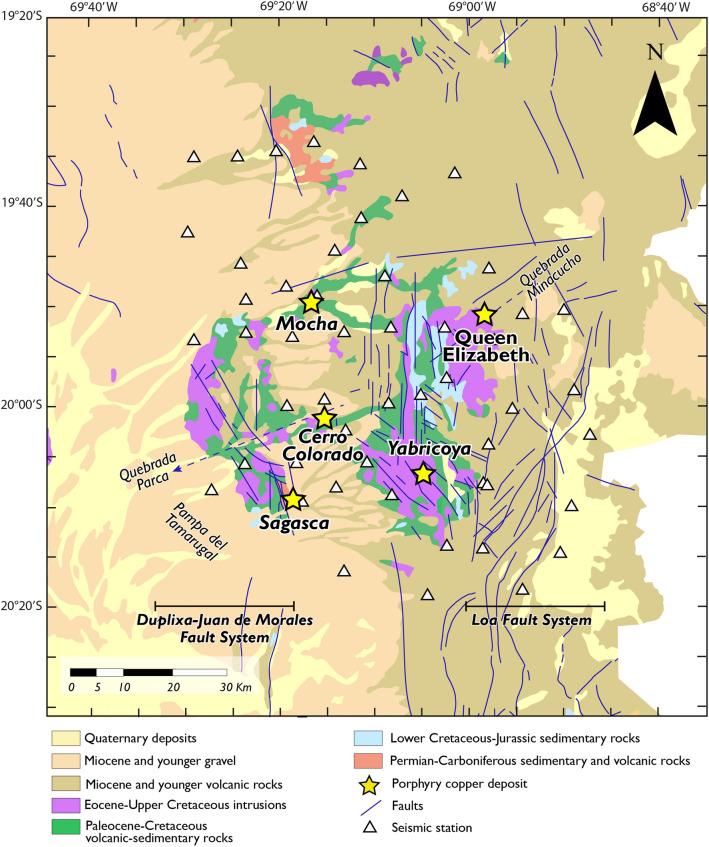

An essential part of the world's remaining mineral resources is expected to reside deep in the crust or under post-mineralization cover. For porphyry copper deposits, the world's primary source of Cu, Mo, and Re, identifying the dynamic processes that control their emplacement in the upper crust can guide future exploration. Seismic tomography can constrain these processes through imaging deep-seated structures at the regional scale. Here we construct a three-dimensional model of the Vp/Vs ratio, based on arrival times of P and S seismic waves, beneath the Cerro Colorado porphyry Cu-(Mo) deposit in northern Chile. Our images show that low Vp/Vs (~ 1.55-1.65) anomalies, extending to ~ 5-15 km depth, coincide with the surface expression of known porphyry copper deposits and prospects, as well as delimit structures that host orebodies and related hydrothermal alteration zones. Medium Vp/Vs (~ 1.68-1.74) and high Vp/Vs (Vp/Vs ~ 1.85) bodies correspond to intermediate-felsic plutonic precursors for porphyry intrusions and mafic magma reservoirs that underlie shallower orebodies, respectively. Imaging these precursor and parental plutons is crucial to the identification of orebodies as they act as the source of fluids for porphyry copper generation. This study demonstrates the potential of local earthquake tomography as a tool to identify future deep mineral resources with minimal environmental impact.
