A Novel Photo-Thermal-Electric Conversion System with an Integrated Support Material.

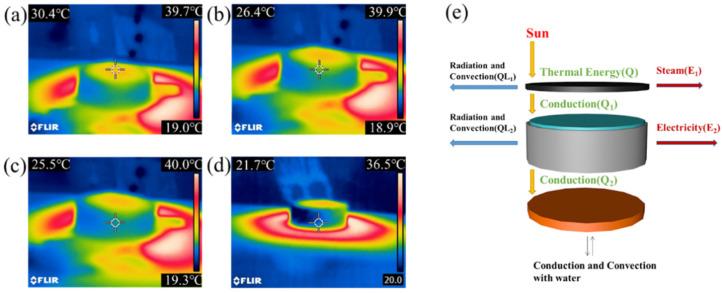

In conventional photo-thermal-electric conversion systems, the photo-thermal conversion module is coupled to a thermoelectric conversion module. However, the physical contact interface between the modules causes serious energy loss. In order to solve this problem, a novel photo-thermal-electric conversion system with an integrated support material has been developed, with a photo-thermal conversion component at the top, an inside thermoelectric conversion component, and a cooling component at the bottom, surrounded by a water conduction component. The supporting materials of each part are polydimethylsiloxane (PDMS), and there is no apparent physical interface between each part. This integrated support material reduces the heat loss caused by the mechanically coupled interfaces in traditional components. In addition, the confined edge 2D water transport path effectively reduces the heat loss due to water convection. Under 1 sun irradiation, the water evaporation rate and open-circuit voltage of the integrated system reach 2.46 kg m h and 30 mV, respectively, and are nearly 1.4 times and 5.8 times higher than those of non-integrated systems.
