Stray Light Analysis and Suppression of the Visible to Terahertz Integrated Cloud Detection Optical System.

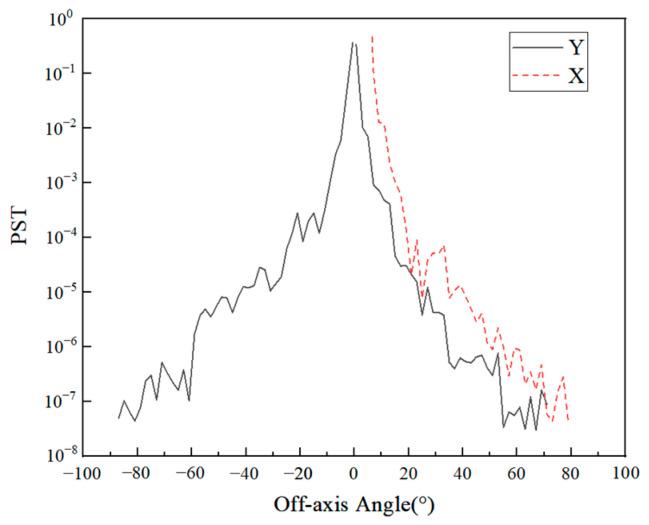

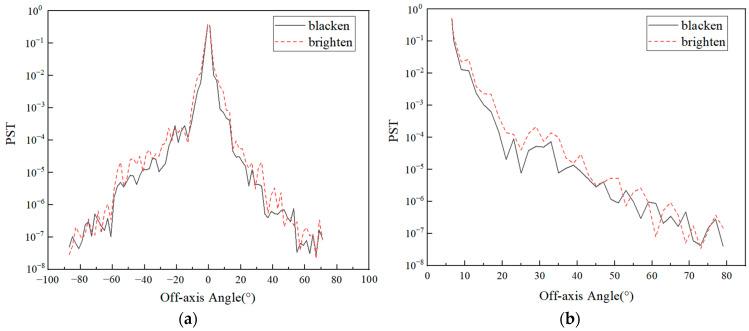

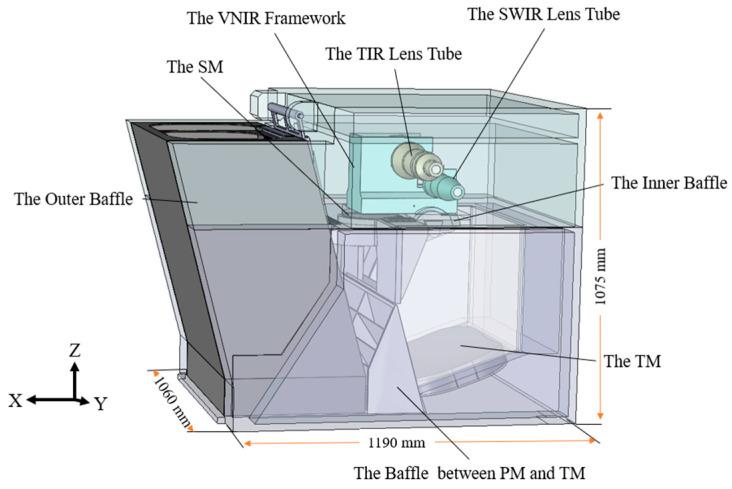

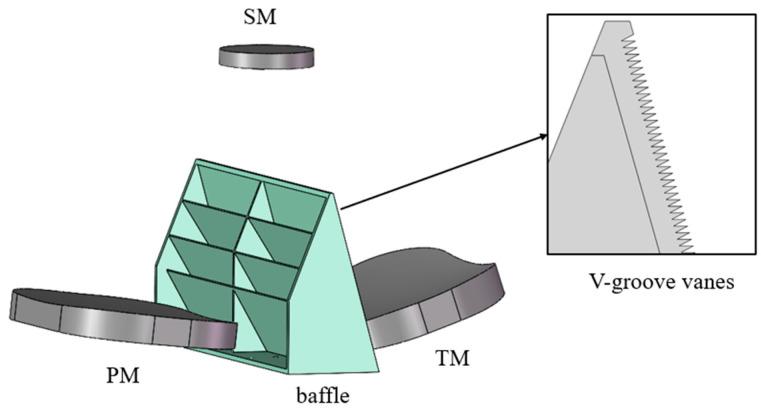

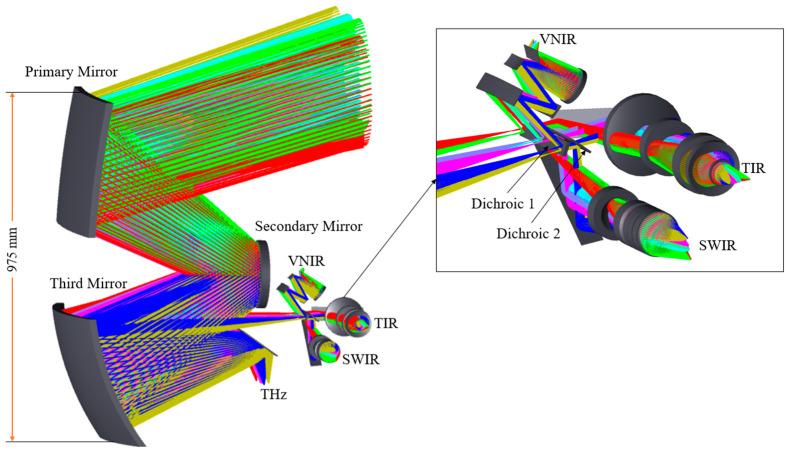

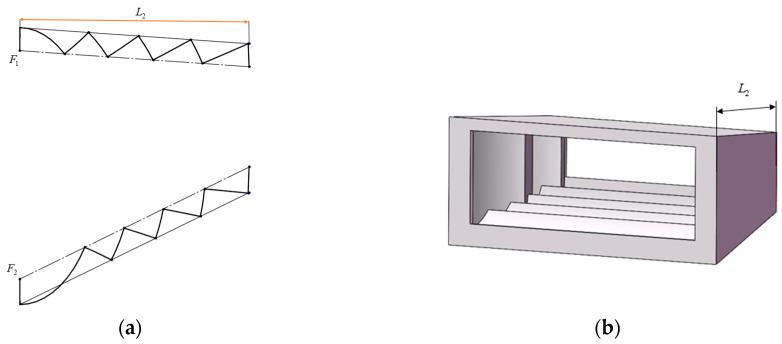

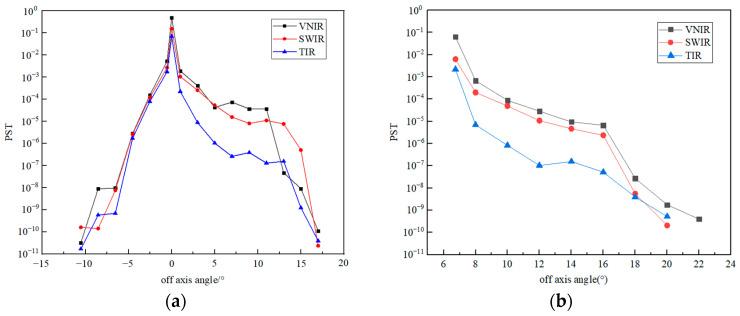

The wide-spectrum integrated imaging method can simultaneously obtain the spectral information of different spectral bands of the same target, which is conducive to the realization of the high-precision detection of target characteristics, and can simultaneously obtain more comprehensive elements such as the structure, shape, and microphysical parameters of the cloud. However, for stray light, the same surface has different characteristics at different wavelengths, and a wider spectral band means more complex and diverse sources of stray light, which renders the analysis and suppression of stray light more difficult. In this work, according to the characteristics of the visible-to-terahertz integrated optical system design scheme, the influence of material surface treatment on stray light was studied; the stray light analysis and optimization of the whole link of light transmission were carried out. For the sources of stray light in different channels, targeted suppression measures such as front baffle, field stop, special structure baffle, and reflective inner baffle were adopted. The simulation results indicate that when the off-axis field of view was greater than 10°. The point source transmittance (PST) of the terahertz channel is on the order of 10, the visible and infrared channels are less than 10, and the final terahertz PST was on the order of 10, while visible and infrared channels were lower than 10. Here, we present a method for stray light suppression based on conventional surface treatments for broadband imaging systems.
