Reduction of fluid forces for flow past side-by-side cylinders using downstream attached splitter plates.

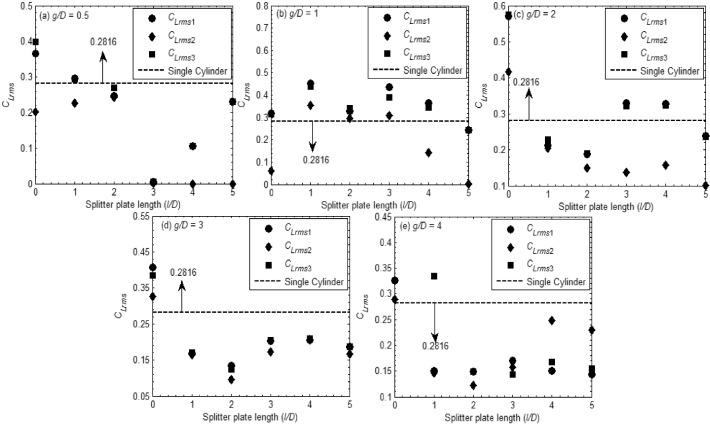

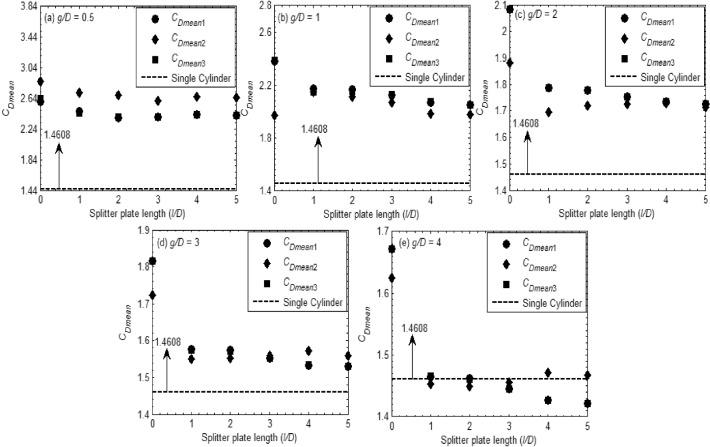

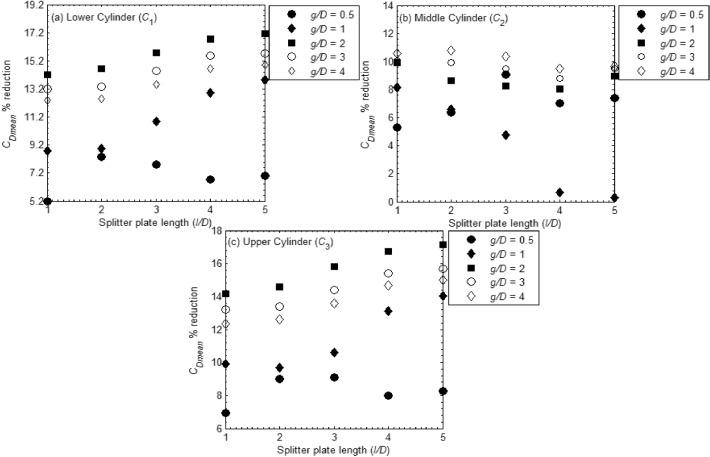

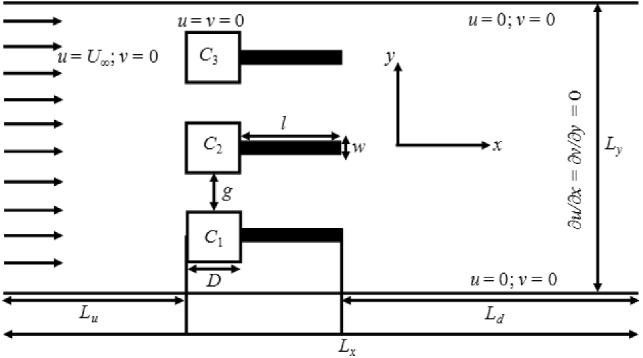

A two-dimensional numerical simulation is performed to investigate the drag reduction and vortex shedding suppression behind three square cylinders with attached splitter plates in the downstream region at a low Reynolds number (Re = 150). Numerical calculations are carried out using the lattice Boltzmann method. The study is carried out for various values of gap spacing between the cylinders and different splitter plate lengths. The vortices are completely chaotic at very small spacing, as observed. The splitter plates are critical in suppressing shedding and reducing drag on the objects. The splitter plates with lengths greater than two fully control the jet interaction at low spacing values. There is maximum percentage reduction in for small spacing and the selected largest splitter plate length. Furthermore, systematic investigation reveals that splitter plates significantly suppress the fluctuating lift in addition to drastically reducing the drag.
