Ka Band Low Channel Mutual Coupling Integrated Packaged Phased Array Receiver Front-End for Passive Millimeter-Wave Imaging.

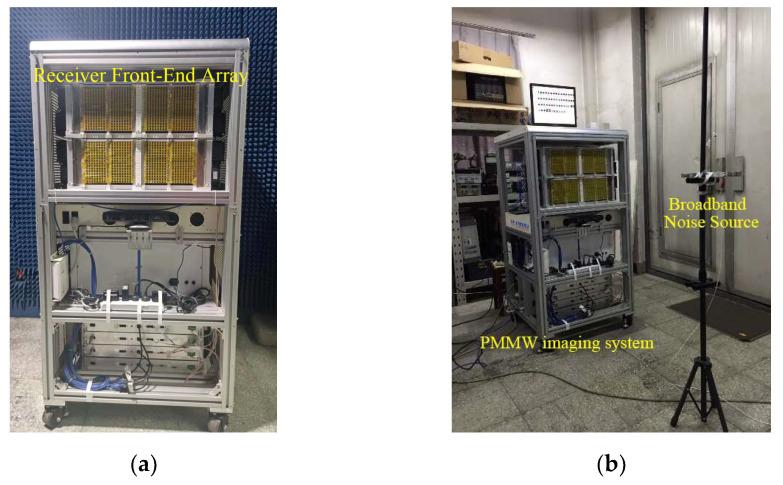

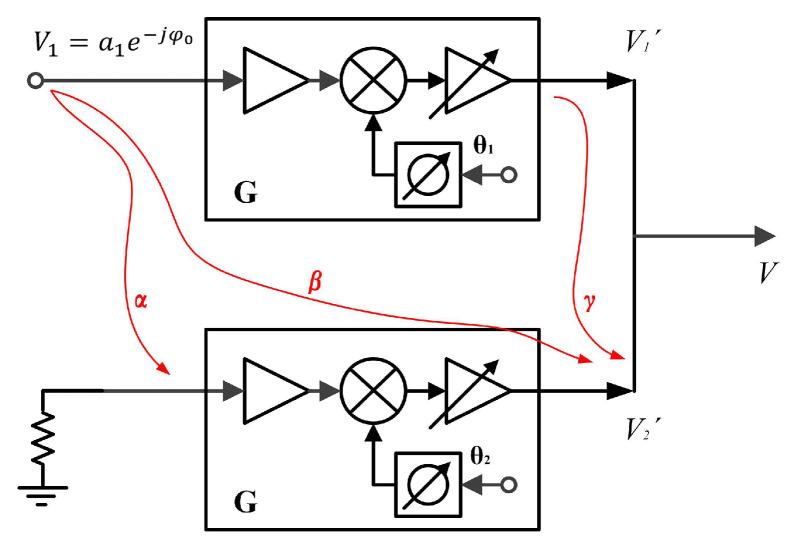

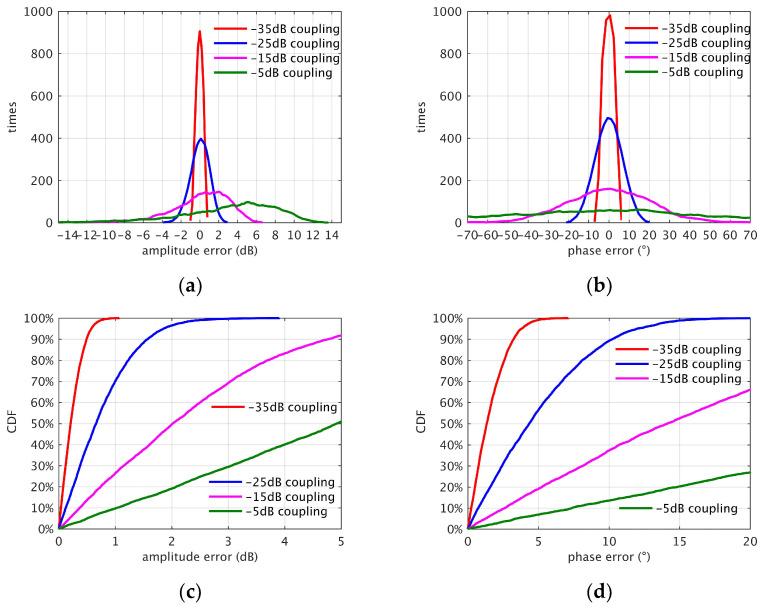

This paper presents a Ka band eight-channel integrated packaged phased array receiver front-end for a passive millimeter-wave imaging system. Since multiple receiving channels are integrated in a given package, the mutual coupling issue affecting the channel will deteriorate imaging quality. Therefore, in this study, the influence of channel mutual coupling on the system array pattern and amplitude phase error is analyzed, and the design requirements are proposed according to the results. During the design implementation, the coupling paths are discussed, and passive circuits in the path are modeled and designed to reduce the level of channel mutual coupling and spatial radiation. Finally, an accurate coupling measurement method for a multi-channel integrated phased array receiver is proposed. The receiver front-end achieves a 28~31 dB single channel gain, a 3.6 dB noise figure, less than -47 dB of channel mutual coupling. Furthermore, the array pattern of the two-dimensional 1024 channel system composed of the front end of the receiver is consistent with the simulation, and the receiver's performance is verified by a human-body-imaging experiment. The proposed coupling analysis, design, and measurement methods are also applicable to other multi-channel integrated packaged devices.
