简便合成具有优异荧光发射性能的磷氮共掺杂碳点用于细胞成像

Facile synthesis of phosphorus and nitrogen co-doped carbon dots with excellent fluorescence emission towards cellular imaging.

作者信息

Cao Fang-Jun, Hou Xiang, Wang Kai-Feng, Jin Tie-Zhi, Feng Hui

机构信息

Shaanxi Key Laboratory of Qinling Ecological Security, Shaanxi Institute of Zoology Xi'an Shaanxi 710072 P. R. China

出版信息

RSC Adv. 2023 Jul 12;13(30):21088-21095. doi: 10.1039/d3ra03361a. eCollection 2023 Jul 7.

Abstract

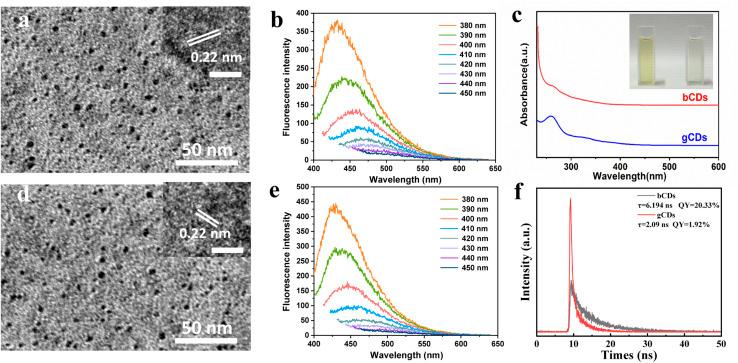

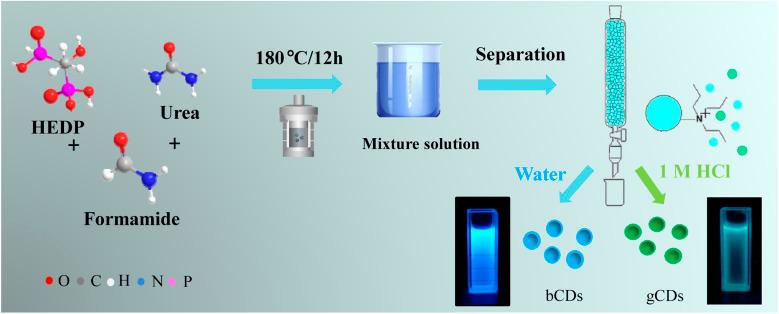

Fluorescent carbon nanomaterials have attracted increasing attention owing to their unique photoluminescence properties, good biocompatibility and low toxicity in bioimaging as well as biosensing. Heteroatom doping is usually used to improve photoluminescence properties by tuning the functional groups and the particle size domain effect, thus leading to redshifted emission. Here, we report a straightforward strategy for the fabrication of a mixture of fluorescent phosphorus and nitrogen carbon nanodots (P,N-CDs) followed by separating two kinds of fluorescent fractions based on their different negative charges. Such a one-pot hydrothermal method using formamide, urea and hydroxyethylidene diphosphonic acid as the precursor yields fluorescent P,N-CDs. Specifically, blue-emitting CDs (bCDs) and green-emitting CDs (gCDs) were separated by using column chromatography. The quantum yields of bCDs and gCDs were 20.33% and 1.92%, respectively. And the fluorescence lifetimes of bCDs and gCDs were 6.194 ns and 2.09 ns, respectively. What is more, the resultant P,N-CDs exhibited low toxicity and excellent biocompatibility. Confocal fluorescence microscopy images were obtained successfully, suggesting that P,N-CDs have excellent cell membrane permeability and cellular imaging. This work provides a promising fluorescent carbon nanomaterial with tunable emission as a probe for versatile applications in bioimaging, sensing and drug delivery.

摘要

荧光碳纳米材料因其独特的光致发光特性、良好的生物相容性以及在生物成像和生物传感方面的低毒性而受到越来越多的关注。杂原子掺杂通常用于通过调节官能团和粒径域效应来改善光致发光特性,从而导致发射红移。在此,我们报告了一种直接的策略,用于制备荧光磷和氮碳纳米点(P,N-CDs)的混合物,然后根据它们不同的负电荷分离出两种荧光组分。这种使用甲酰胺、尿素和羟基亚乙基二膦酸作为前体的一锅水热法可产生荧光P,N-CDs。具体而言,通过柱色谱法分离出发蓝光的CDs(bCDs)和发绿光的CDs(gCDs)。bCDs和gCDs的量子产率分别为20.33%和1.92%。并且bCDs和gCDs的荧光寿命分别为6.194 ns和2.09 ns。此外,所得的P,N-CDs表现出低毒性和优异的生物相容性。成功获得了共聚焦荧光显微镜图像,表明P,N-CDs具有优异的细胞膜通透性和细胞成像能力。这项工作提供了一种有前景的具有可调发射的荧光碳纳米材料,作为一种探针用于生物成像、传感和药物递送等多种应用。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9d99/10336645/e057bec9af51/d3ra03361a-f1.jpg
