The Effect of Natural and Synthesised Zeolites on Cement-Based Materials Hydration and Hardened State Properties.

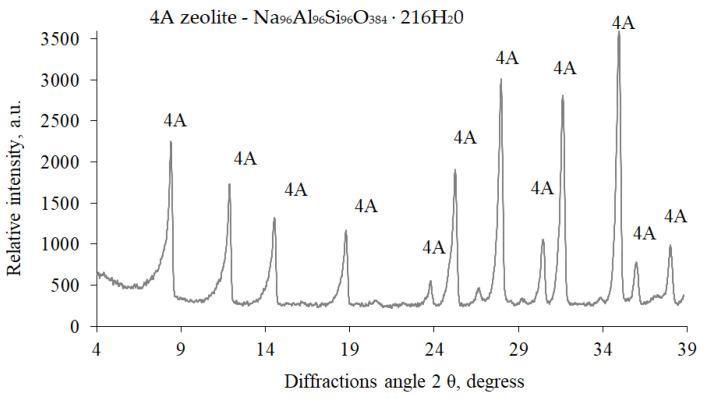

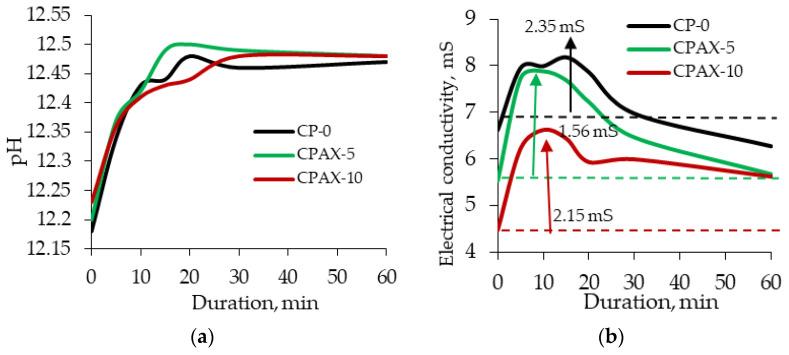

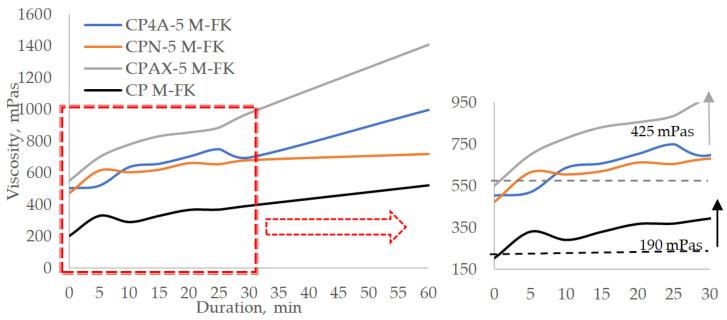

The synthesis of zeolites from difficult-to-utilise waste materials facilitates the creation of more financially attractive and efficient synthetic zeolites. These can be incorporated into construction materials, resulting in a reduction in cement usage and the production of superior, clean, and sustainable construction materials. The potential to enhance the hydration rate of fresh cement paste by substituting up to 10% of the cement with two synthetic zeolites-one commercially produced and the other synthesised from waste and natural zeolite-was explored. Due to a higher Al/Na ratio, newly sintered waste-based zeolite possesses six times higher electrical conductivity compared to industrially produced 4A zeolite and more than 20 times higher electrical conductivity compared to natural zeolite. As the sequence of this fact, substituting up to 10% of the cement with AX zeolite cement paste accelerates the maximum heat release rate time and increases the total heat by 8.5% after 48 h of hydration. The structure, compressive strength, and water absorption of the hardened cement paste depends on the Al/Na ratio, pH, and electrical conductivity values of the zeolite used. The findings revealed that AX zeolite, due to presence of mineral gibbsite, which speeds up hydration products, such as CSH development, increases the compressive strength up to 28.6% after 28 days of curing and reduces the water absorption by up to 1.5%. Newly synthesised waste-based AX zeolite is cheap because its production is based on waste materials and is mostly promising due to superior properties of created construction materials compared to the other presented zeolites.
