Bound states in the continuum in anisotropic photonic crystal slabs.

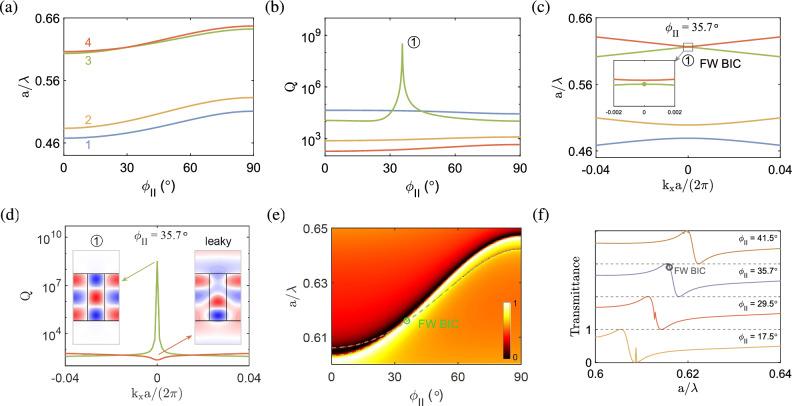

We investigate the bound states in the continuum (BICs) in photonic crystal slabs composed of alternating anisotropic and isotropic dielectric materials. According to the orientation of optical axis plane, three different configurations are proposed for analyzing various types of BICs, associated with extremely large quality factors and vanishing spectral linewidths. In particular, symmetry-protected (SP) BICs exist at the Brillouin zone center for zero rotation angle of the optical axis, which exhibit antisymmetric field patterns that are decoupled from the symmetric radiating fields. Accidental BICs and Friedrich-Wintgen (FW) BICs also occur at the Brillouin zone center for particular rotation angles of the optical axis. The former emerge on isolated bands with quasi-symmetric or quasi-antisymmetric field patterns, while the latter appear near the avoided crossing between two dispersion bands. At off the Brillouin zone center, SP BICs do not exist while accidental BICs and FW BICs appear at particular optical axis rotation angles, with similar features but somewhat more asymmetric field patterns than those at the Brillouin zone center.
