Li Yong, Yin Yicheng, Chen Jing, Kang Xiaoxu, Kang Shihao, Ma Haoxuan, Zhang Shaowei, Jia Quanli
Henan Key Laboratory of High Temperature Functional Ceramics, School of Materials Science and Engineering, Zhengzhou University, Zhengzhou 450001, China.
Henan Hongyu New Materials Technology Co., Ltd., Gongyi 451200, China.
Materials (Basel). 2023 Aug 29;16(17):5895. doi: 10.3390/ma16175895.

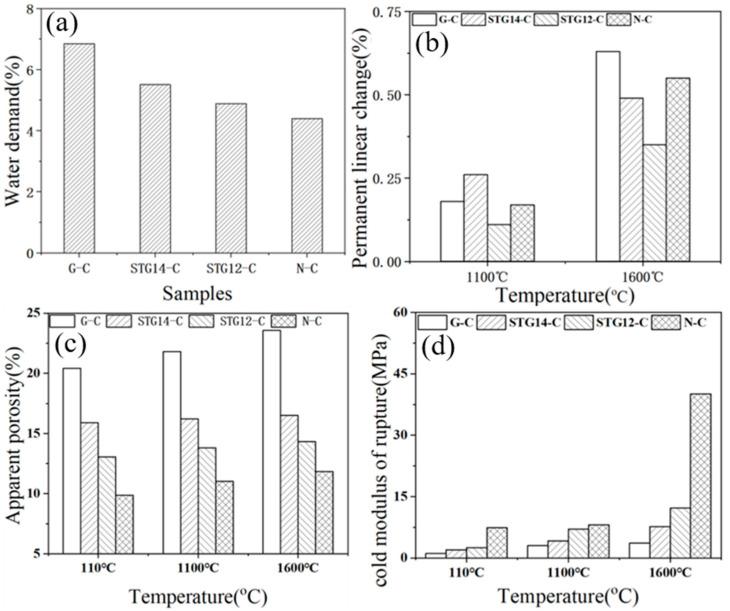

Graphite flakes are commonly used to fabricate carbon-based refractories owing to their superior properties, including better corrosion resistance and thermal shock resistance (TSR); unfortunately, their insufficient water-wettability has remarkably hindered their application in castables. Aiming to enhance their water-wettability, a facile and low-cost technique for fabricating carbides coated in graphite was proposed in this work. Firstly, SiC-TiC coated graphite (SiC-TiC@C) powders were prepared via modified molten salt shielding synthesis in an air atmosphere using graphite flake, Si and Ti powders as raw materials and NaCl-KCl as the molten salt shielding medium. Water-wettability and oxidation resistance of SiC-TiC@C powders were significantly improved. Compared to the AlO-MgO castables with graphite flakes, the water demand of the castables with SiC-TiC@C was noticeably decreased from 6.85% to 4.89%, thereby decreasing the apparent porosity of the castables with 5% SiC-TiC@C (from 20.3% to 13%), enhancing the cold strength, hot strength and oxidation resistance of the castables. Such enhancements are ascribed to continuous and crack-free SiC-TiC coatings on graphite surfaces ensuring that the castables have outstanding properties.
石墨片由于其优异的性能,包括更好的耐腐蚀性和抗热震性(TSR),通常被用于制造碳基耐火材料;不幸的是,它们不足的水润湿性显著阻碍了它们在浇注料中的应用。为了提高它们的水润湿性,本工作提出了一种简便且低成本的制备涂覆在石墨上的碳化物的技术。首先,以石墨片、硅粉和钛粉为原料,以氯化钠 - 氯化钾为熔盐屏蔽介质,通过改进的熔盐屏蔽合成法在空气气氛中制备了碳化硅 - 碳化钛涂覆石墨(SiC - TiC@C)粉末。SiC - TiC@C粉末的水润湿性和抗氧化性得到了显著提高。与含有石墨片的氧化铝 - 氧化镁浇注料相比,含有SiC - TiC@C的浇注料的需水量从6.85%显著降低至4.89%,从而降低了含5% SiC - TiC@C的浇注料的显气孔率(从20.3%降至13%),提高了浇注料的冷态强度、热态强度和抗氧化性。这些增强归因于石墨表面连续且无裂纹的SiC - TiC涂层,确保了浇注料具有优异的性能。
