Control of Coherent Light through Microperiodic Director Modulation in Nematic Films under Low-Voltage DC Electric Field.

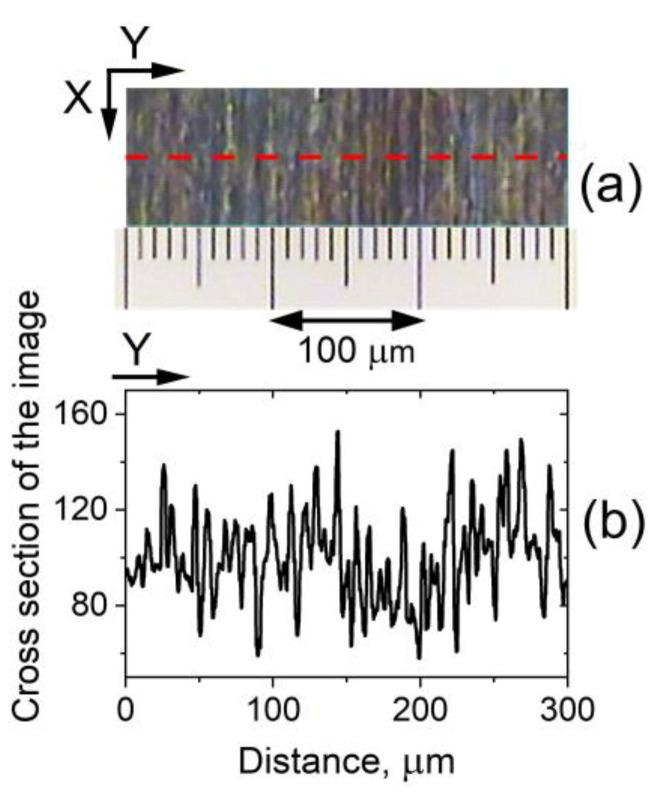

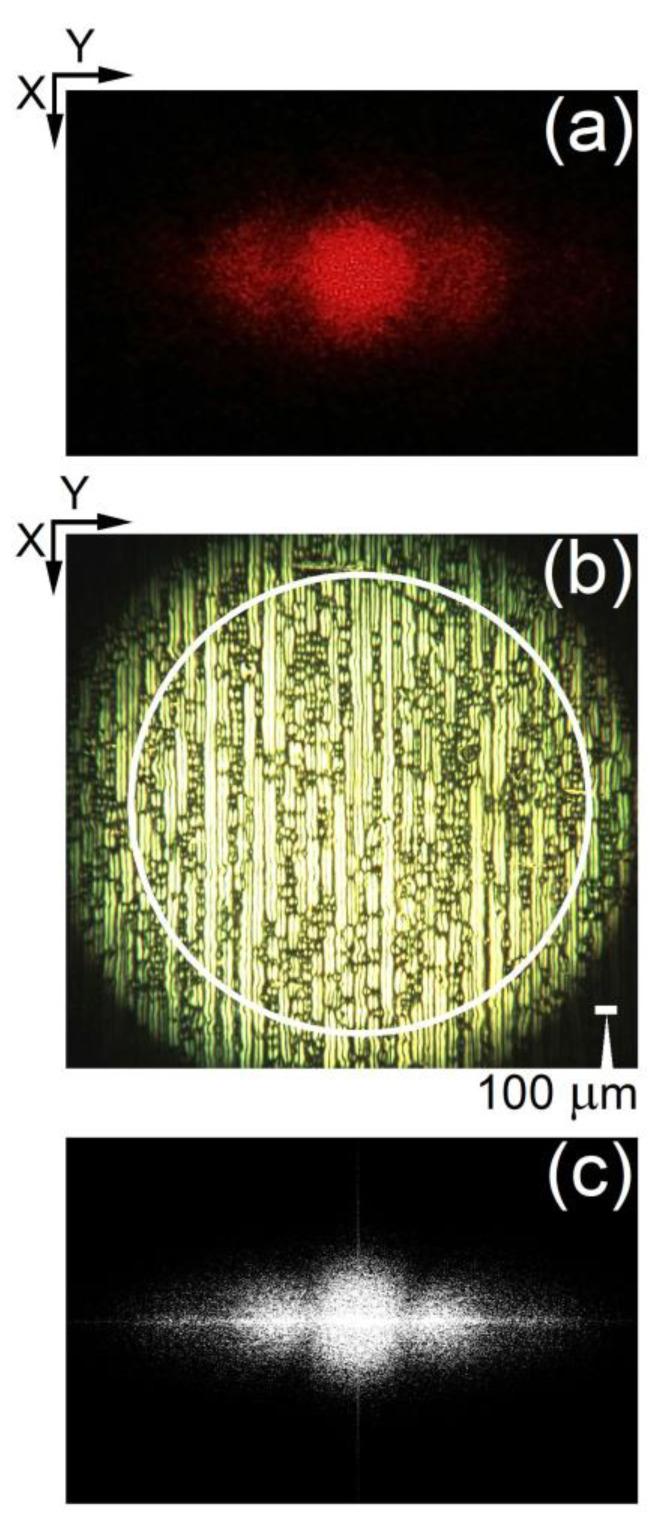

This work addresses the achievement of efficient control of laser light transmission through stationary microperiodic parallel stripe textures formed in films of nematic liquid crystals (NLCs) in planar-oriented cells upon a direct-current (DC) electric field. By varying the field intensity and, thereby, the field-induced periodic modulation of the nematic director and hence the complex transmittance function corresponding to the longitudinal domain texture induced in NLC films with initial planar alignment, the intensity of a linearly polarized laser beam passed through the films can be well controlled. In 25 µm-thick films of room-temperature NLCs pentylcyanobiphenyl (5CB), this results in a low-voltage (~4 V) sharp and deep V-shaped behavior of their electro-optically controlled transmittance. Such a reversible electro-optical effect is interesting for active control of laser beam intensity and other applications. The relevant physical mechanism is analyzed and explained.
