Typology of Battery Cells - From Liquid to Solid Electrolytes.

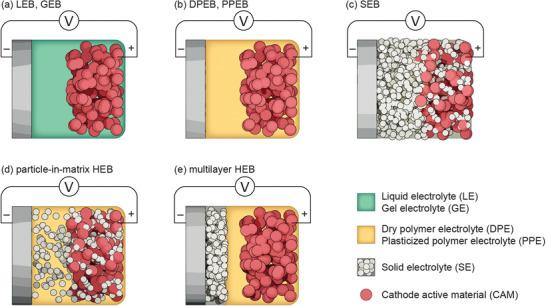

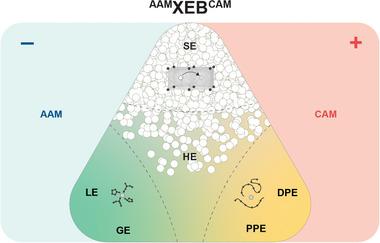

The field of battery research is bustling with activity and the plethora of names for batteries that present new cell concepts is indicative of this. Most names have grown historically, each indicative of the research focus in their own time, e.g. lithium-ion batteries, lithium-air batteries, solid-state batteries. Nevertheless, all batteries are essentially made of two electrode layers and an electrolyte layer. This lends itself to a systematic and comprehensive approach by which to identify the cell type and chemistry at a glance. The recent increase in hybridized cell concepts potentially opens a world of new battery types. To retain an overview of this dynamic research field, each battery type is briefly discussed and a systematic typology of battery cells is proposed in the form of the short and universal cell naming system XEB (AAM: anode active material; X: L (liquid), G (gel), PP (plasticized polymer), DP (dry polymer), S (solid), H (hybrid); EB: electrolyte battery; CAM: cathode active material). This classification is based on the principal ion conduction mechanism of the electrolyte during cell operation. Even though the presented typology initiates from the research fields of lithium-ion, solid-state and hybrid battery concepts, it is applicable to any battery cell chemistry.
