Study on the Function of Conveying, Kneading Block and Reversing Elements on the Mixing Efficiency and Dispersion Effect inside the Barrel of an Extruder with Numerical Simulation.

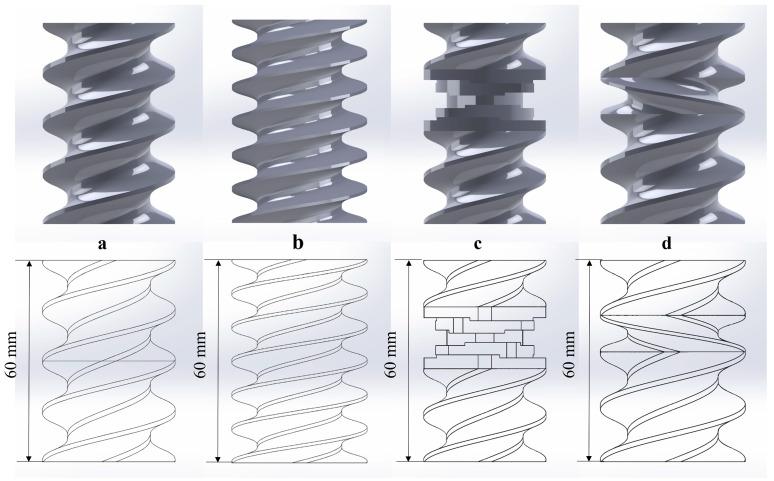

In order to better understand the extrusion process mechanism of plant protein inside a barrel, the parameter changes and flow characteristics of fluids under conveying, kneading block and reversing elements were investigated with numerical simulation. The results showed that the shear rate increased obviously with the increase in pitch; the shear rate value of the reversing element was larger, while that of the kneading block was the opposite. The screw combinations of conveying, kneading blocks and reversing elements all have a certain degree of mixing effect on the particles, and the reduction in pitch can effectively increase the mixing effect of the particles. The conveying element can provide a relatively constant acceleration for the particles, due to the pumping capability and pressure buildup as the pitch increases. The kneading block and the reversing element can increase the leakage flow between the discs and backflow, resulting in an extension of the residence time distribution that facilitates fluid interaction in the barrel and improves the dispersion of the particles. The restraint by the reversing element on the particles is obviously weaker than that of the kneading block and shows a higher particle mixing degree. Overall, the influence of different elements on the flow condition, mixing degree and residence time is significantly different, which improves the process controllability and provides references for potential applications to meet multiple demands.
