Lim Seong-Sik, Hong Je-Pyo, Kim Minki, Park Young-Chul, Lee Sang-Mock, Cho Dae-Yeon, Cho Chang-Hee
Molding & Metal Forming R&D Department, Korea Institute of Industrial Technology, Incheon 21999, Republic of Korea.
R&D Center, RtoB Co., Ltd., Incheon 21632, Republic of Korea.
Materials (Basel). 2023 Sep 18;16(18):6260. doi: 10.3390/ma16186260.

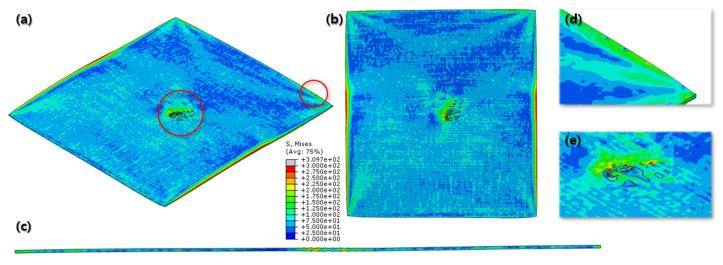

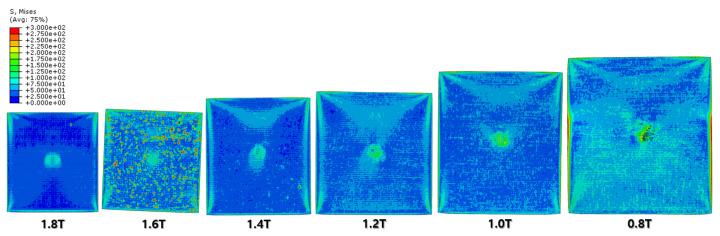

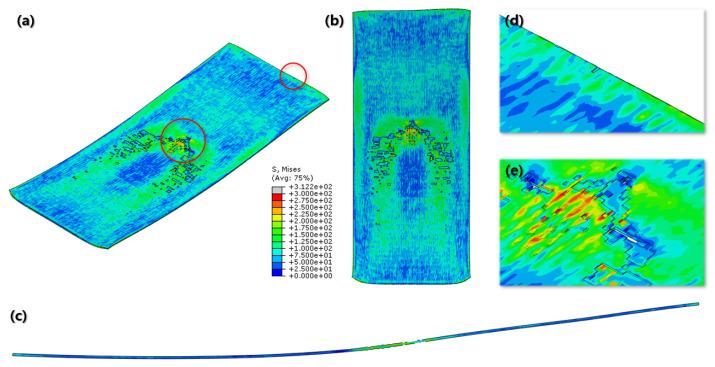

This study investigated defect formation and strain distribution in high-Mg-content Al-Mg alloys during normal rolling and cross-rolling processes. The finite element analysis (FEA) revealed the presence of wave defects and strain localization-induced zipper cracks in normal cold rolling, which were confirmed by the experimental results. The concentration of shear strain played a significant role in crack formation and propagation. However, the influence of wave defects was minimal in the cross-rolling process, which exhibited a relatively uniform strain distribution. Nonetheless, strain concentration at the edge and center regions led to the formation of zipper cracks and edge cracks, with more pronounced propagation observed in the experiments compared to FEA predictions. Furthermore, texture evolution was found to be a crucial factor affecting crack propagation, particularly with the development of the Goss texture component, which was observed via electron backscattered diffraction analysis at bending points. The Goss texture hindered crack propagation, while the Brass texture allowed cracks to pass through. This phenomenon was consistent with both FEA and experimental observations. To mitigate edge crack formation and propagation, potential strategies involve promoting the formation of the Goss texture at the edge through alloy and process conditions, as well as implementing intermediate annealing to alleviate stress accumulation. These measures can enhance the overall quality and reliability of Al-Mg alloys during cross-rolling processes. In summary, understanding the mechanisms of defect formation and strain distribution in Al-Mg alloys during rolling processes is crucial for optimizing their mechanical properties. The findings of this study provide insights into the challenges associated with wave defects, strain localization, and crack propagation. Future research and optimization efforts should focus on implementing strategies to minimize defects and improve the overall quality of Al-Mg alloys in industrial applications.
本研究调查了高镁含量铝镁合金在常规轧制和交叉轧制过程中的缺陷形成和应变分布。有限元分析(FEA)揭示了常规冷轧过程中存在波浪缺陷和应变局部化诱导的拉链裂纹,实验结果证实了这一点。剪切应变的集中在裂纹形成和扩展中起了重要作用。然而,波浪缺陷在交叉轧制过程中的影响最小,该过程表现出相对均匀的应变分布。尽管如此,边缘和中心区域的应变集中导致了拉链裂纹和边缘裂纹的形成,与FEA预测相比,实验中观察到更明显的扩展。此外,发现织构演变是影响裂纹扩展的关键因素,特别是随着高斯织构组分的发展,这是通过在弯曲点处的电子背散射衍射分析观察到的。高斯织构阻碍裂纹扩展,而黄铜织构允许裂纹通过。这一现象与FEA和实验观察结果均一致。为了减轻边缘裂纹的形成和扩展,潜在的策略包括通过合金和工艺条件促进边缘处高斯织构的形成,以及实施中间退火以减轻应力积累。这些措施可以提高铝镁合金在交叉轧制过程中的整体质量和可靠性。总之,了解铝镁合金在轧制过程中缺陷形成和应变分布的机制对于优化其力学性能至关重要。本研究的结果为与波浪缺陷、应变局部化和裂纹扩展相关的挑战提供了见解。未来的研究和优化工作应侧重于实施策略,以尽量减少工业应用中铝镁合金的缺陷并提高其整体质量。
