Characterization of Polymeric Composites for Hydrogen Tank.

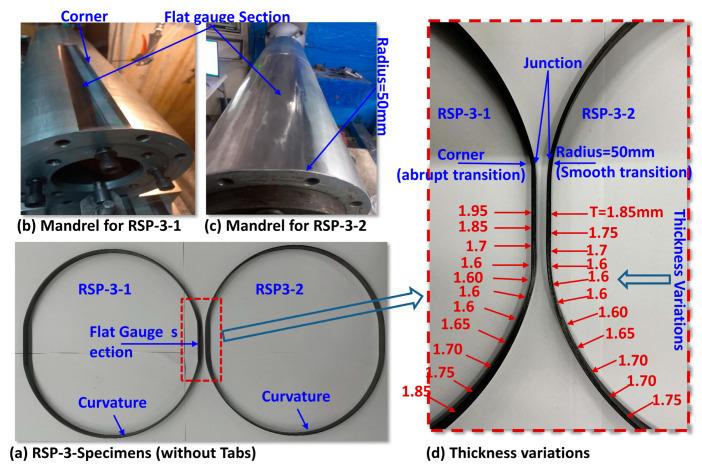

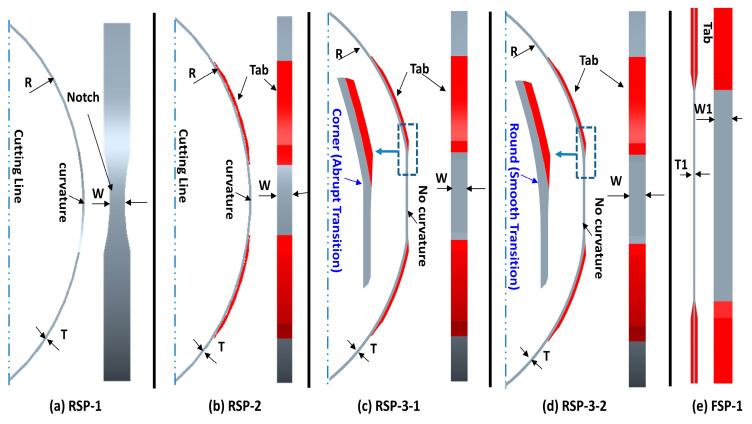

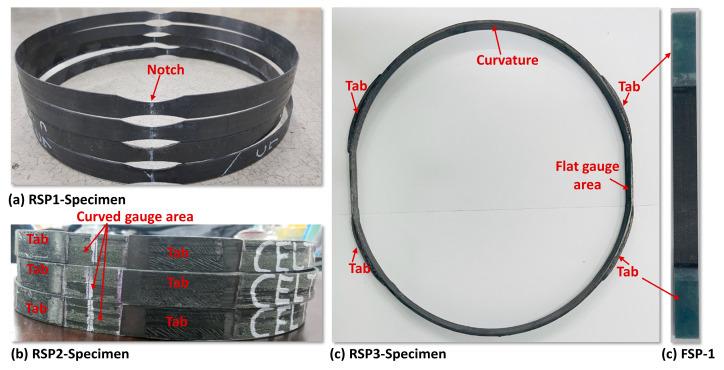

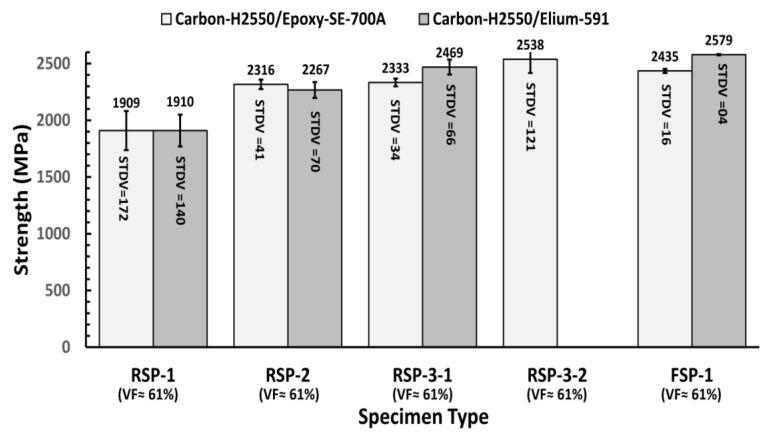

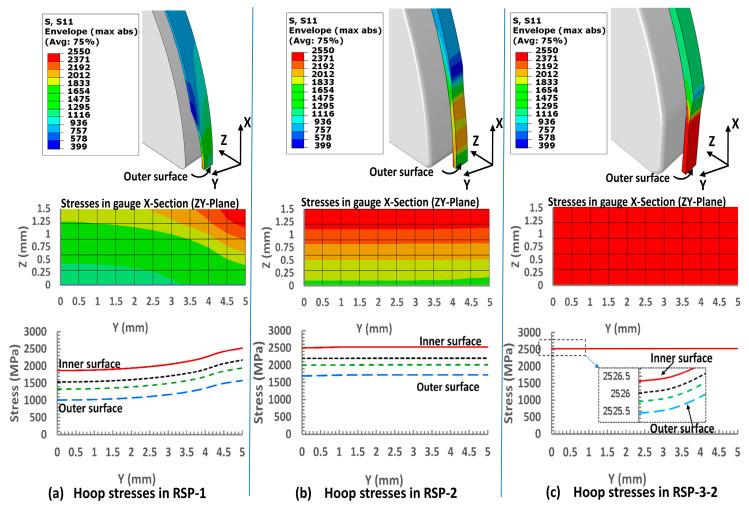

Carbon neutrality has led to a surge in the popularity of hydrogen tanks in recent years. However, designing high-performance tanks necessitates the precise determination of input material properties. Unfortunately, conventional characterization methods often underestimate these material properties. To address this limitation, the current research introduces alternative designs of ring tensile specimens, which enable accurate and reliable characterization of filament-wound structures. The advantages and disadvantages of these alternative designs are thoroughly discussed, considering both numerical simulations and experimental investigations. Moreover, the proposed ring tensile methods are applied to characterize thermoplastic composites for hydrogen storage tanks. The results indicate that the mechanical strengths and stiffness of carbon fiber-reinforced thermoplastic Elium 591 composites closely match those of epoxy-based composites. This newfound accuracy in measurement is expected to contribute significantly to the development of recyclable hydrogen tanks.
