Hydrostratigraphy and hydrogeophysical studies to delineate fresh and saline aquifer boundaries in Lesser Cholistan of Pakistan.

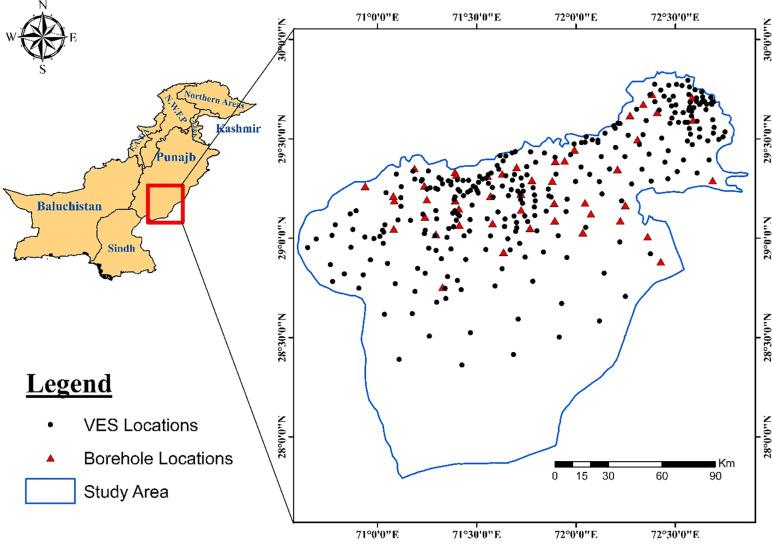

The differentiation of saline water and fresh water interfaces is a key objective in ground water exploration and management. Bahawalpur is the twelfth biggest metropolitan area of Pakistan situated in south Punjab near the bank of River Sutlej and lies at 29°59'55" N latitude and 73°15'12" E longitude at an elevation of 521 ft AMSL in the Cholistan area close to the Thar abandon. The study area comprised of Lesser Cholistan experiencing acute shortage of water for inhabitants and livestock as well. The occurrence of fresh water is also challenging because of high salinity in groundwater. The present study is intended to identify hotspots of fresh groundwater zones. To achieve the goal, vertical electrical resistivity and borehole data are used to mark fresh and saline interfaces in groundwater. To achieve the results 230 vertical electric sounding were performed in the study area. A total of 3 to 5 geo-electric layers are identified with modeling along with the processing and interpretation of resistivity data. In the study area, resistivity values are classified as very high (>230 Ω-m), high (230-100 Ω-m), medium (100-40 Ω-m), low (40-20 Ω-m) and very low (<20 Ω-m). Borehole data is used to interpret subsurface lithologies and to calibrate the modeled resistivity curves. The electric resistivity data indicates that thick layers of Quaternary sediments is present in the subsurface that is primarily composed of clay, silt, sand, gravels and some kanker. Inversion technique is applied to generate 2D subsurface resistivity maps to delineate fresh and saline water zones. The generated 2D resistivity maps at variable depth above and below water table and formation resistivity maps are successfully utilized to differentiate fresh and saline water zones. The identification of a saline water aquifer within sediments rich in clay was made possible by the observation of very low resistivity measurements in the southern region. Conversely, the detection of relatively high resistivity values, coupled with the presence of sand and gravel deposits in the northern section of the lesser Cholistan area, provided compelling evidence of the existence of fresh groundwater. These findings have significant implications for the management of water resources in the region, as they provide valuable insights into the distribution and availability of groundwater resources for future use.
