Regularities in the Evolution of Thermoelastic Martensitic Transformations during Cooling/Heating in the Free State and under Load of Titanium Nickelide Alloyed with Niobium.

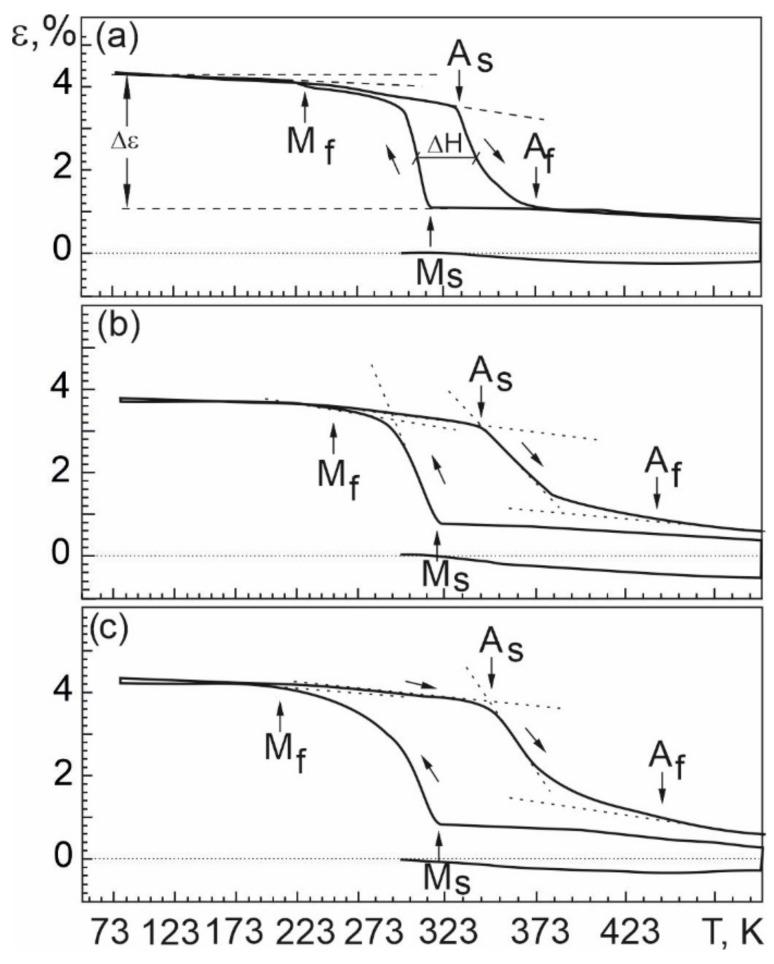

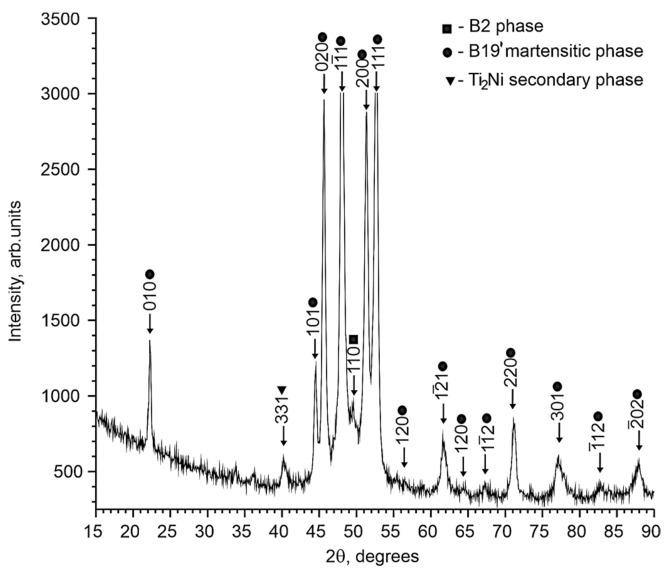

This article presents the results of studies of the features of the development of thermoelastic martensitic transformations during cooling/heating in the free state and under load of TiNiNbMo alloys (X = 0.5, 1.0 and 1.5 at% Nb) with shape memory effects. Using X-ray diffraction analysis, it was found that all the alloys studied at room temperature contained a multiphase mixture consisting of intermetallic compounds with the TiNi (B2, B19'), NiTiNb, and TiNi compositions. Scanning electron microscopy was used to study the microstructure of TiNi (Nb,Mo) alloys and it was found that the distribution of fine NiTiNb particles in the matrix depends significantly on the concentration of the alloying element. A correlation was established between changes in the structural-phase state in TiNi (Nb,Mo) alloys and the occurrence of the B2↔B19' martensitic transition in the free state and under load. Based on physical and mechanical studies, the temperature ranges of the martensitic transformations (MT) in the free state and under load were established. Based on the thermodynamic description of the MT and the analysis of the characteristic temperatures of the MT, it was found that the MT mechanism is strongly dependent on the concentration of the alloying element.
