Joint Stress Analysis of the Navicular Bone of the Horse and Its Implications for Navicular Disease.

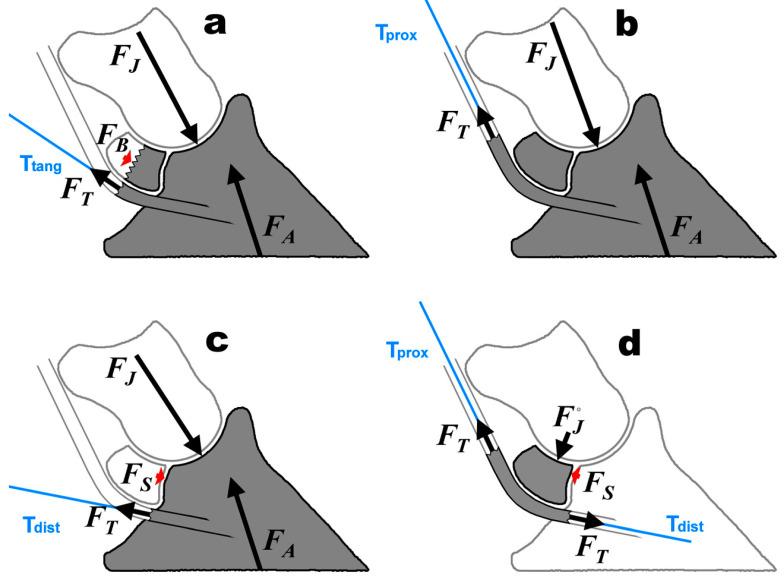

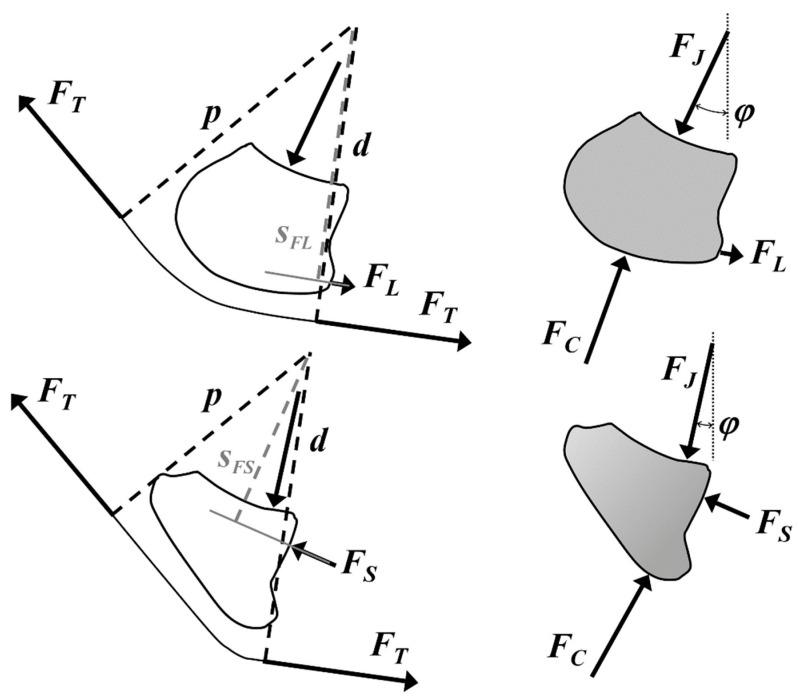

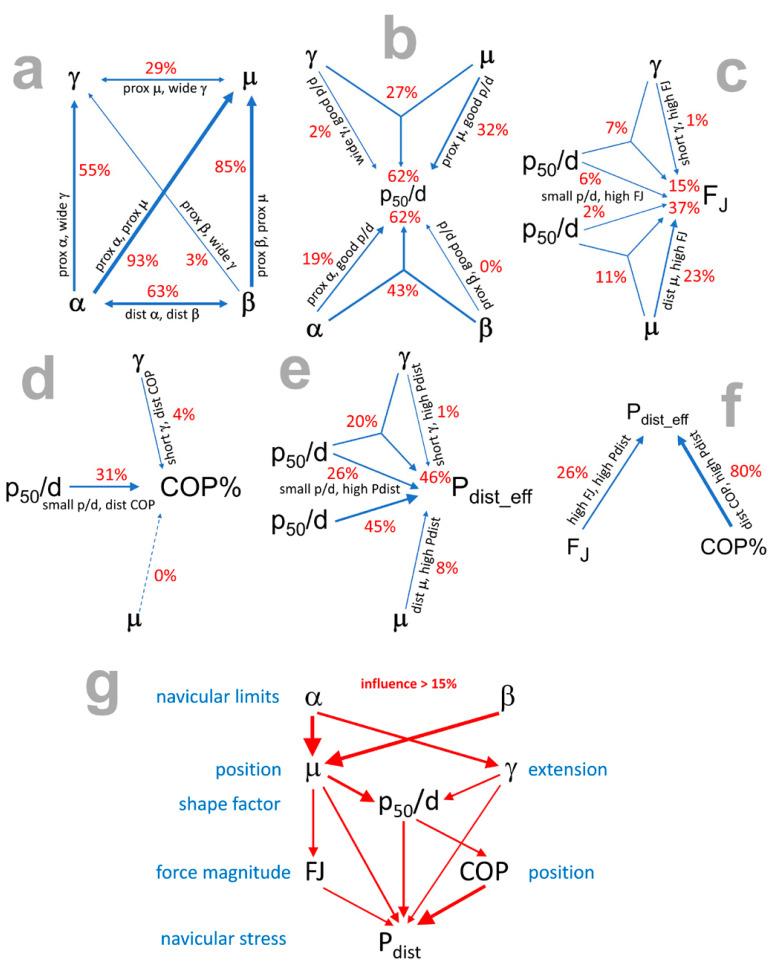

The horse's navicular bone is located inside the hoof between the deep flexor tendon (DDFT) and the middle and end phalanges. The aim of this study was to calculate the stress distribution across the articular surface of the navicular bone and to investigate how morphological variations of the navicular bone affect the joint forces and stress distribution. Joint forces normalised to the DDFT force were calculated from force and moment equilibria from morphological parameters determined on mediolateral radiographs. The stress distribution on the articular surface was determined from the moment equilibrium of the stress vectors around the centre of pressure. The ratio of the proximal to the distal moment arms of the DDFT, as well as the proximo-distal position and extent of the navicular bone, individually or in combination, have a decisive influence on the position and magnitude of the joint force and the stress distribution. If the moment arms are equal and the bone is more proximal, the joint force vector originates from the centre of the joint surface and the joint load is evenly distributed. However, in a more distal position with a longer distal moment arm, the joint force is close to the distal edge, where the joint stress reaches its peak. Degenerative navicular disease, which causes lameness and pathological changes in the distal portion of the bone in sport horses, is likely to be more severe in horses with wedge-shaped navicular bones than in horses with square bones.
