Design and optimization of metamaterial-based highly-isolated MIMO antenna with high gain and beam tilting ability for 5G millimeter wave applications.

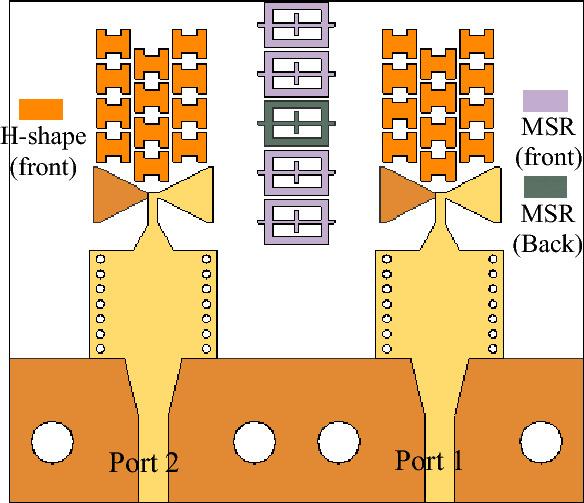

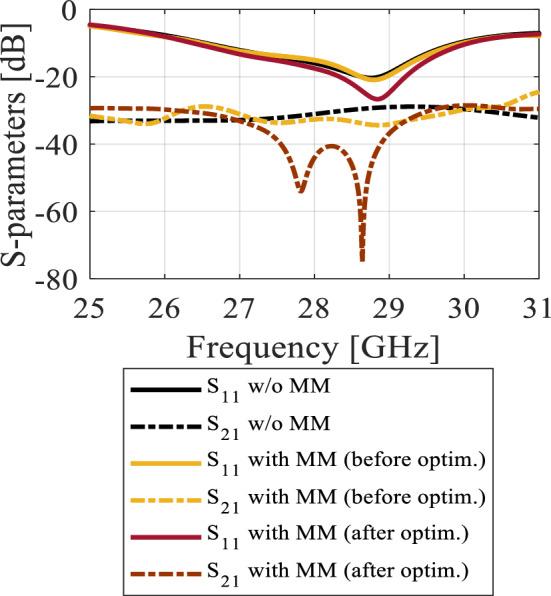

This paper presents a wideband multiple-input multiple-output (MIMO) antenna with high gain and isolation, as well as beam tilting capability, for 5G millimeter wave (MMW) applications. A single bow-tie antenna fed by a substrate-integrated waveguide (SIW) is proposed to cover the 28 GHz band (26.5-29.5 GHz) with a maximum gain of 6.35 dB. To enhance the gain, H-shaped metamaterial (MM)-based components are incorporated into the antenna substrate. The trust-region (TR) gradient-based search algorithm is employed to optimize the H-shape dimensions and to achieve a maximum gain of 11.2 dB at 29.2 GHz. The MM structure offers zero index refraction at the desired range. Subsequently, the MIMO system is constructed with two vertically arranged radiators. Another MM, a modified square resonator (MSR), is embedded between the two radiators to reduce the mutual coupling and to tilt the antenna main beam. Herein, the TR algorithm is again used to optimize the MSR dimensions, and to enhance the isolation to a maximum of 75 dB at 28.6 GHz. Further, the MSR can tilt the E-plane radiation by ± 20° with respect to the end-fire direction when alternating between the two ports' excitation. The developed system is validated experimentally with a good matching between the simulated and measured data.
