Yoshizawa Atsushi
Department of Frontier Materials Chemistry, Graduate School of Science and Technology, Hirosaki University, 3 Bunkyo-cho, Hirosaki 036-8561, Aomori, Japan.
Materials (Basel). 2024 Mar 11;17(6):1291. doi: 10.3390/ma17061291.

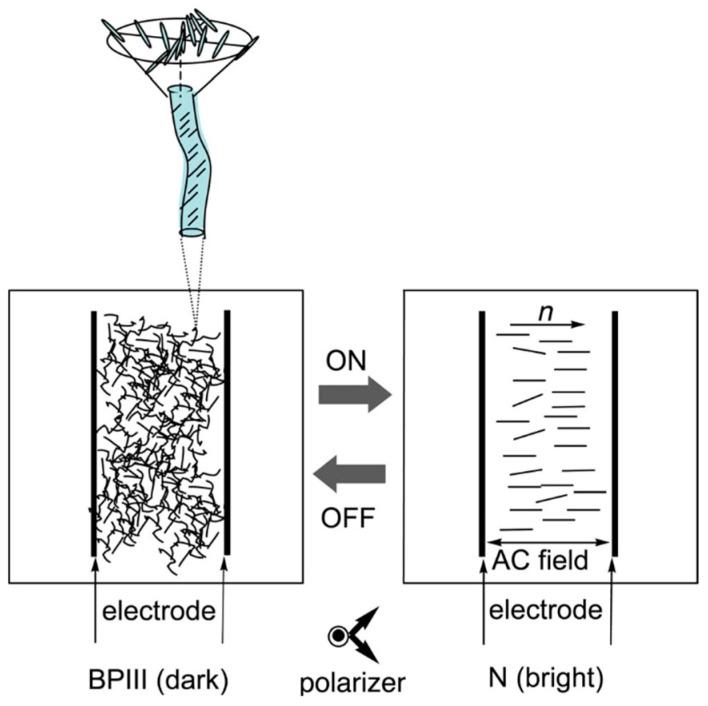

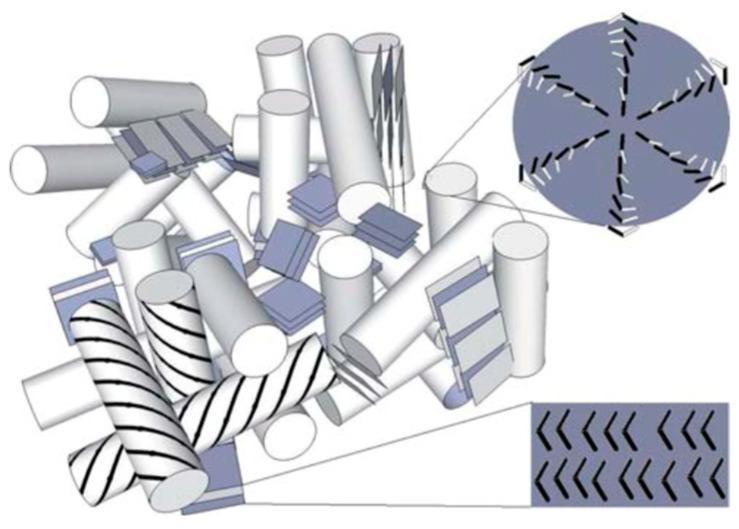

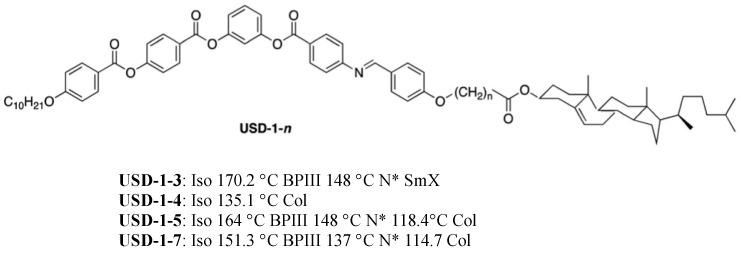

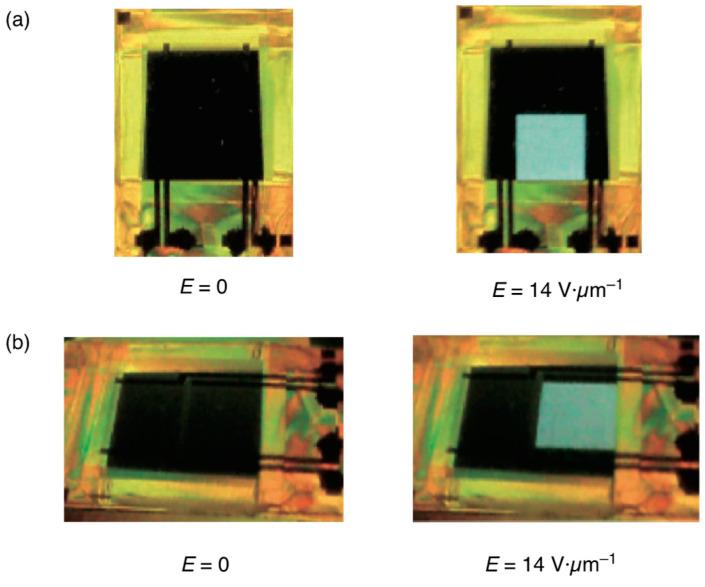

Blue phases (BPs) have a frustrated structure stabilized by chirality-dependent defects. They are classified into three categories: blue phase I (BPI), blue phase II (BPII), and blue phase III (BPIII). Among them, BPIII has recently attracted much attention due to its elusive amorphous structure and high-contrast electro-optical response. However, its structure has remained unelucidated, and the molecular design for stabilizing BPIII is still unclear. We present the following findings in this review. (1) BPIII is a spaghetti-like tangled arrangement of double-twist cylinders with characteristic dynamics. (2) Molecular biaxiality and flexibility contribute to stabilize BPIII. (3) BPIII exhibits submillisecond response, high contrast, and wide-viewing angle at room temperature without surface treatment or an optical compensation film. It was free from both hysteresis and residual transmittance. The electro-optical effects are explained in relation to the revealed structure of BPIII. Finally, we discuss the memory effect of a polymer network derived from the defects of BPIII.
蓝相(BPs)具有由手性相关缺陷稳定的受挫结构。它们分为三类:蓝相I(BPI)、蓝相II(BPII)和蓝相III(BPIII)。其中,BPIII因其难以捉摸的非晶结构和高对比度电光响应最近备受关注。然而,其结构仍未阐明,稳定BPIII的分子设计也尚不明确。在本综述中我们展示了以下发现。(1)BPIII是具有特征动力学的双扭曲圆柱体的意大利面条状缠结排列。(2)分子双轴性和柔韧性有助于稳定BPIII。(3)BPIII在室温下无需表面处理或光学补偿膜即可表现出亚毫秒响应、高对比度和宽视角。它既无滞后现象也无残余透射率。电光效应与所揭示的BPIII结构相关。最后,我们讨论了源自BPIII缺陷的聚合物网络的记忆效应。
