School of Mechanical and Aerospace Engineering, Nanyang Technological University, Singapore 639798, Singapore.
Department of Mechanical Engineering, University of Birmingham, Birmingham B15 2TT, United Kingdom.
Proc Natl Acad Sci U S A. 2024 Apr 23;121(17):e2320259121. doi: 10.1073/pnas.2320259121. Epub 2024 Apr 8.

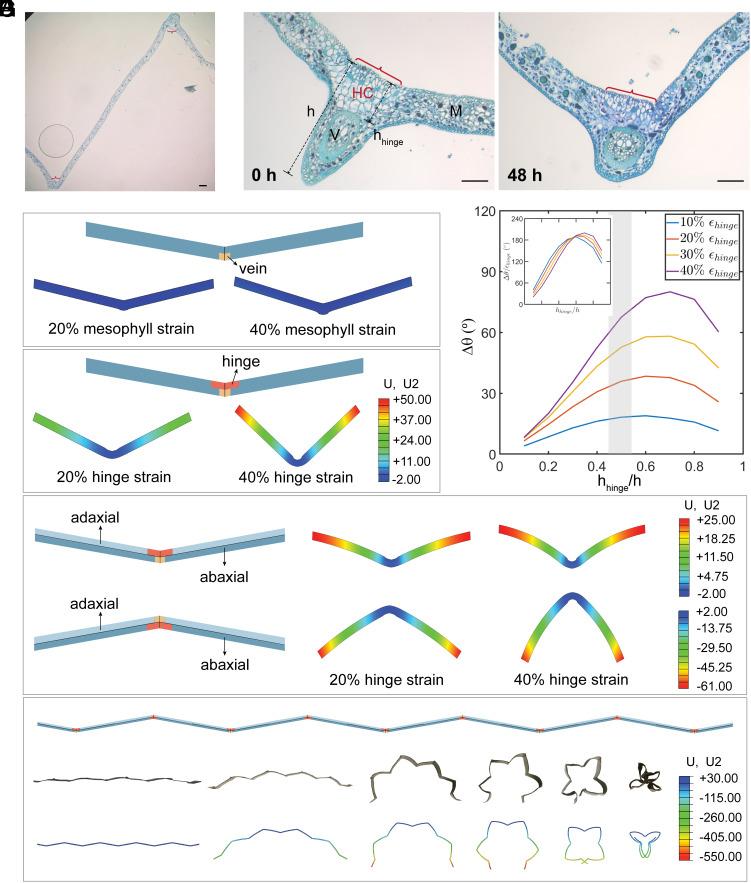

Plant leaves, whose remarkable ability for morphogenesis results in a wide range of petal and leaf shapes in response to environmental cues, have inspired scientific studies as well as the development of engineering structures and devices. Although some typical shape changes in plants and the driving force for such shape evolution have been extensively studied, there remain many poorly understood mechanisms, characteristics, and principles associated with the vast array of shape formation of plant leaves in nature. Here, we present a comprehensive study that combines experiment, theory, and numerical simulations of one such topic-the mechanics and mechanisms of corrugated leaf folding induced by differential shrinking in . Through systematic measurements of the dehydration process in sectioned leaves, we identify a linear correlation between change in the leaf-folding angle and water loss. Building on experimental findings, we develop a generalized model that provides a scaling relationship for water loss in sectioned leaves. Furthermore, our study reveals that corrugated folding induced by dehydration in leaves is achieved by the deformation of a structural architecture-the "hinge" cells. Utilizing such connections among structure, morphology, environmental stimuli, and mechanics, we fabricate several biomimetic machines, including a humidity sensor and morphing devices capable of folding in response to dehydration. The mechanisms of corrugated folding in identified in this work provide a general understanding of the interactions between plant leaves and water. The actuation mechanisms identified in this study also provide insights into the rational design of soft machines.
植物叶片具有显著的形态发生能力,能够根据环境线索形成各种不同的花瓣和叶片形状,这启发了科学研究,并促进了工程结构和设备的发展。尽管已经广泛研究了植物的一些典型形状变化及其形状进化的驱动力,但仍有许多与植物叶片在自然界中形成的大量形状相关的机制、特征和原理尚未被充分理解。在这里,我们进行了一项综合研究,结合实验、理论和数值模拟,研究了一个主题,即由差异收缩引起的波纹状叶片折叠的力学和机制。通过对切片叶片脱水过程的系统测量,我们确定了叶片折叠角度的变化与水分损失之间存在线性相关性。基于实验结果,我们开发了一个广义模型,为切片叶片的水分损失提供了一个标度关系。此外,我们的研究还揭示了由脱水引起的波纹状折叠是通过一种结构架构——“铰链”细胞的变形来实现的。利用结构、形态、环境刺激和力学之间的这种联系,我们制造了几个仿生机器,包括湿度传感器和能够响应脱水而折叠的变形装置。本工作中确定的波纹状折叠机制为植物叶片与水之间的相互作用提供了一个普遍的认识。本研究中确定的致动机制也为软机器的合理设计提供了思路。
