Optimizing FPGA implementation of high-precision chaotic systems for improved performance.

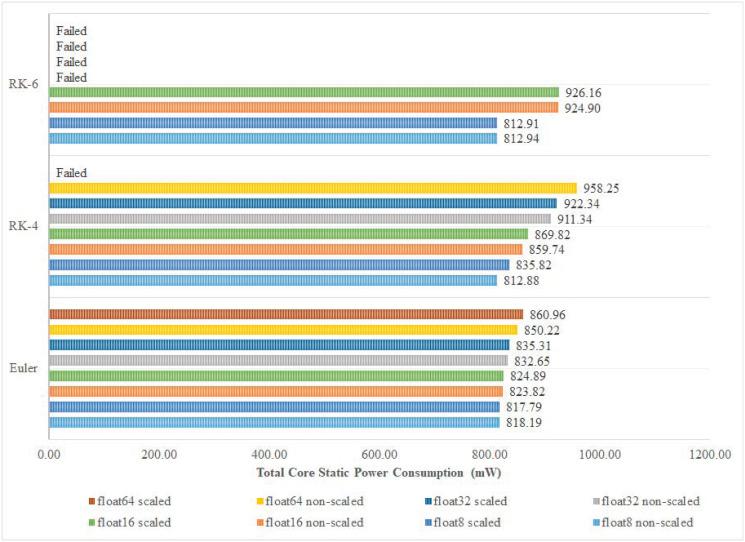

Developing chaotic systems-on-a-chip is gaining much attention due to its great potential in securing communication, encrypting data, generating random numbers, and more. The digital implementation of chaotic systems strives to achieve high performance in terms of time, speed, complexity, and precision. In this paper, the focus is on developing high-speed Field Programmable Gate Array (FPGA) cores for chaotic systems, exemplified by the Lorenz system. The developed cores correspond to numerical integration techniques that can extend to the equations of the sixth order and at high precision. The investigation comprises a thorough analysis and evaluation of the developed cores according to the algorithm complexity and the achieved precision, hardware area, throughput, power consumption, and maximum operational frequency. Validations are done through simulations and careful comparisons with outstanding closely related work from the recent literature. The results affirm the successful creation of highly efficient sixth-order Lorenz discretizations, achieving a high throughput of 3.39 Gbps with a precision of 16 bits. Additionally, an outstanding throughput of 21.17 Gbps was achieved for the first-order implementation coupled with a high precision of 64 bits. These outcomes set our work as a benchmark for high-performance characteristics, surpassing similar investigations reported in the literature.
