Engineering Properties and Microstructure of Soils Stabilized by Red-Mud-Based Cementitious Material.

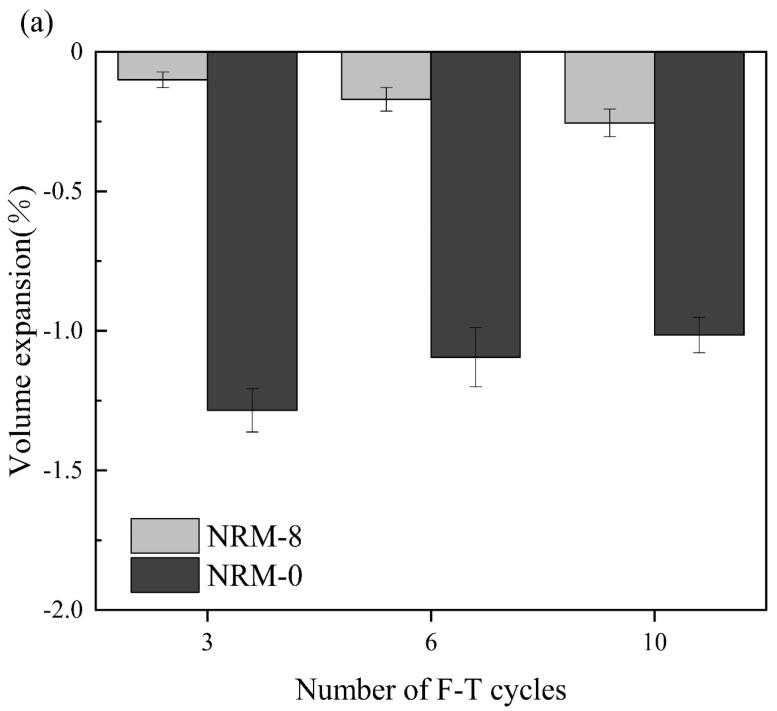

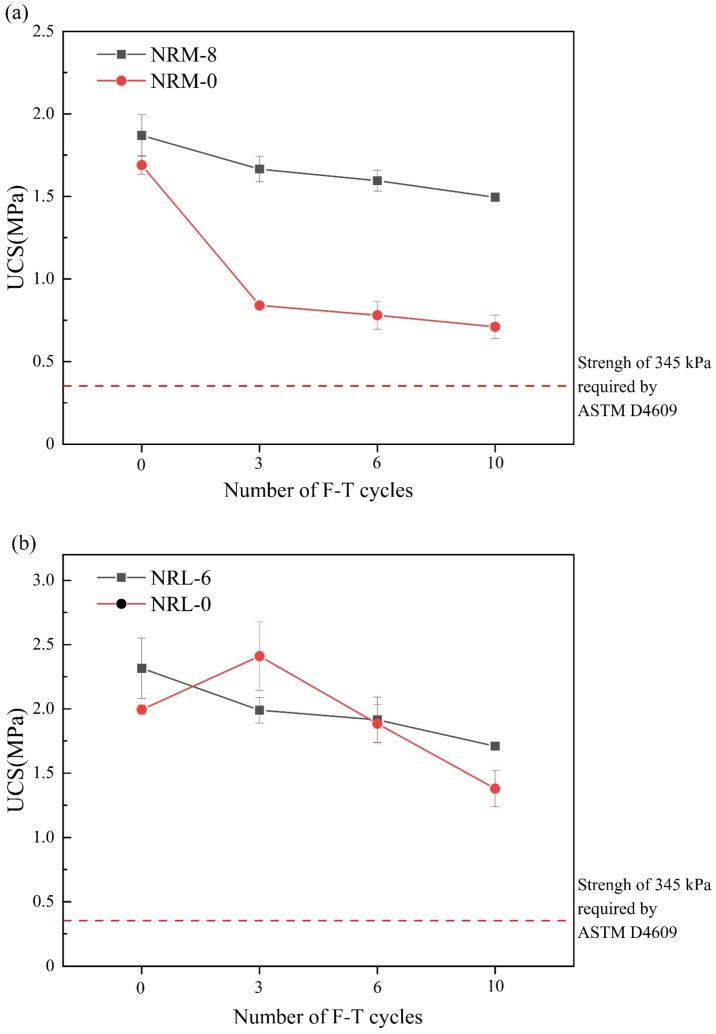

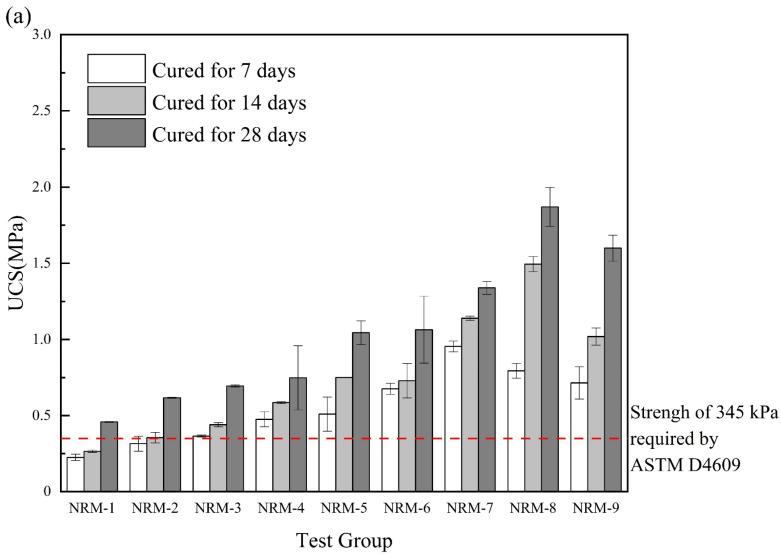

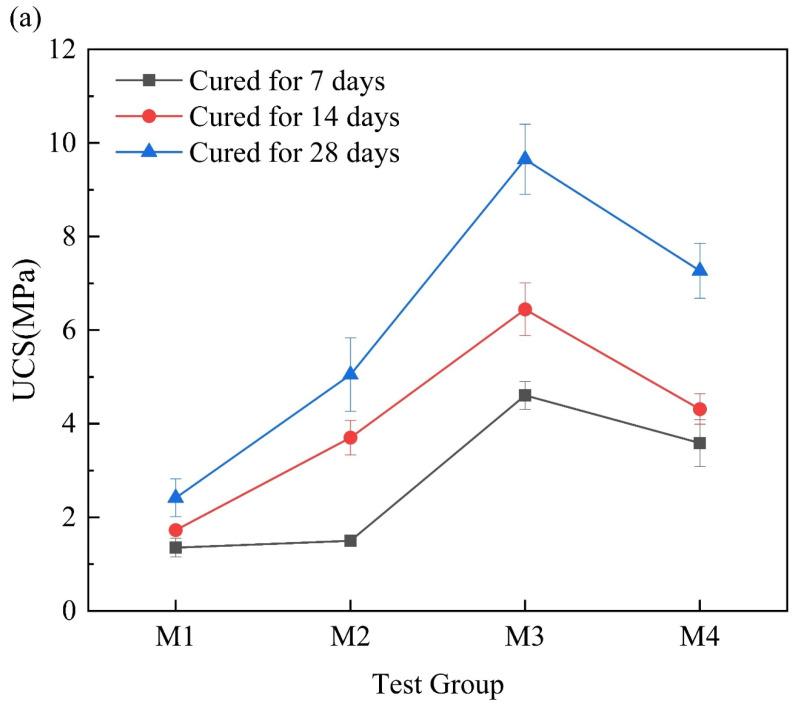

Red mud (RM) is an industrial waste generated in the process of aluminum refinement. The recycling and reusing of RM have become urgent problems to be solved. To explore the feasibility of using RM in geotechnical engineering, this study combined magnesium oxide (MgO) (or calcium oxide (CaO)) with RM as an RM-based binder, which was then used to stabilize the soil. The physical, mechanical, and micro-structural properties of the stabilized soil were investigated. As the content of MgO or CaO in the mixture increased, the unconfined compressive strength (UCS) of the RM-based cementitious materials first increased and then decreased. For the soils stabilized with RM-MgO or RM-CaO, the UCS increased and then decreased, reaching a maximum at RM:MgO = 5:5 or RM:CaO = 8:2. The addition of sodium hydroxide (NaOH) promoted the hydration reaction. The UCS enhancement ranged from 8.09% to 66.67% for the RM-MgO stabilized soils and 204.6% to 346.6% for the RM-CaO stabilized soils. The optimum ratio of the RM-MgO stabilized soil (with NaOH) was 2:8, while that of the RM-CaO stabilized soil (with NaOH) was 4:6. Freeze-thaw cycles reduced the UCS of the stabilized soil, but the resistance of the stabilized soil to freeze-thaw erosion was significantly improved by the addition of RM-MgO or RM-CaO, and the soil stabilized with RM-MgO had better freeze-thaw resistance than that with RM-CaO. The hydrated magnesium silicate generated by the RM-MgO stabilized soil and the hydrated calcium silicate generated by the RM-CaO stabilized soil helped to improve the UCS of the stabilized soil. The freeze-thaw cycles did not weaken the formation of hydration products in the stabilized soil but could result in physical damage to the stabilized soils. The decrease in the UCS of the stabilized soil was mainly due to physical damage.
