Compact metamaterial-based single/double-negative/near-zero index resonator for 5G sub-6 GHz wireless applications.

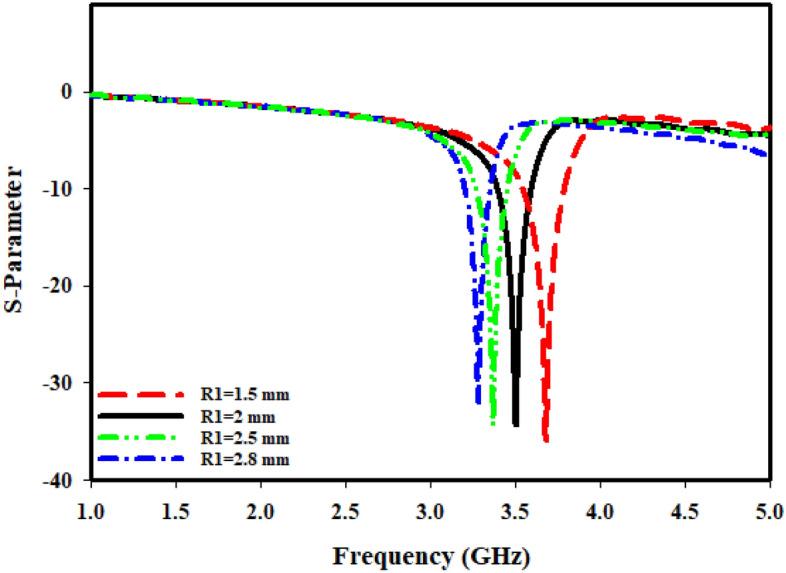

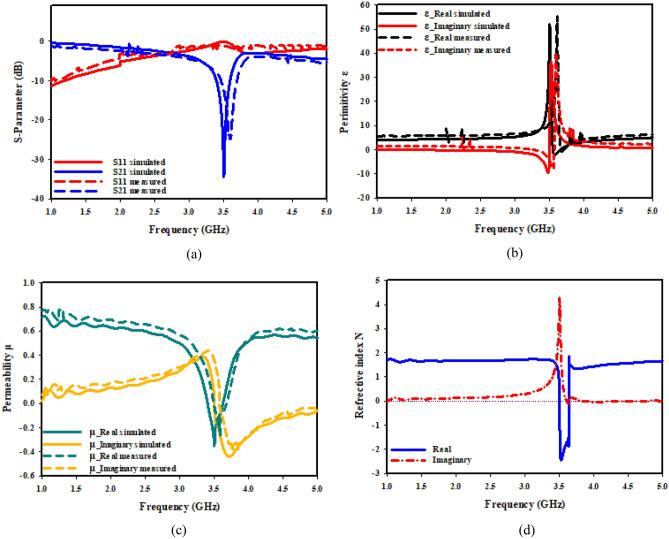

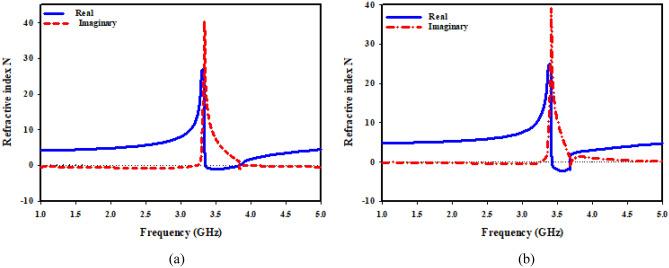

The concept, performance, and analyses of distinctive, miniaturized metamaterial (MTM) unit cell addressing the forthcoming Sub 6 GHz 5G applications are presented in this paper. Two circular split-ring resonators (CSRR) with two parallel rectangular copper elements in front of the design and a slotted square element in the background make up the suggested metamaterial. It has a line segment with tunable features that is positioned in the center of the little ring copper structure. The suggested design offers a significant operating frequency band of 220 MHz together with a resonance of transmission coefficient S21 at 3.5 GHz. Furthermore, in two (z & x) principal axes of wave propagation, wide-range achievement, single/double-negative (S/DNG) refractive index, negative permittivity, and near-zero permeability properties were demonstrated. Through varying central slotted-strip line length, resonance frequencies can be selectively altered. Moreover, the metamaterial has overall dimensions of 9 × 9 mm and is composed on a Rogers 5880 RT substrate. In order to create the suggested MTM's equivalent circuit, which shows similar coefficient of transmission (S21), a proposed design's numerical simulation is carried out in the CST micro-wave studio. This simulation is after that put to comparison with manufacturing of the design.
