Hybrid FFF/CNC: An open source hardware & software system.

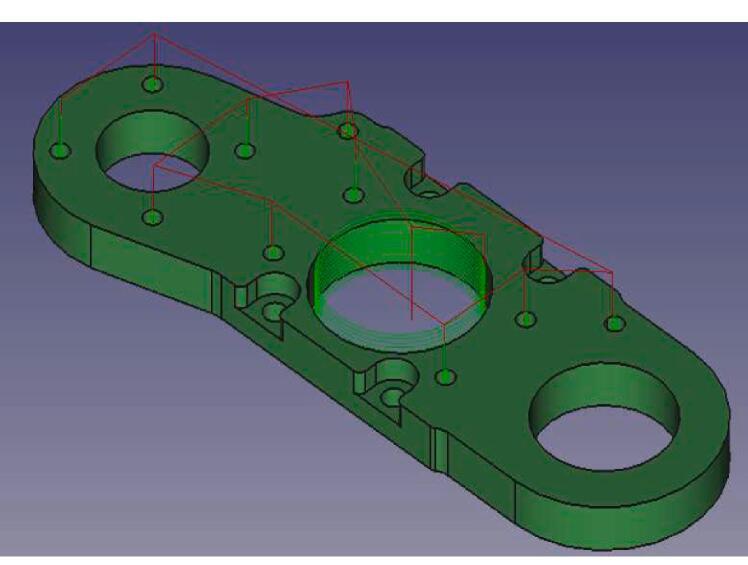

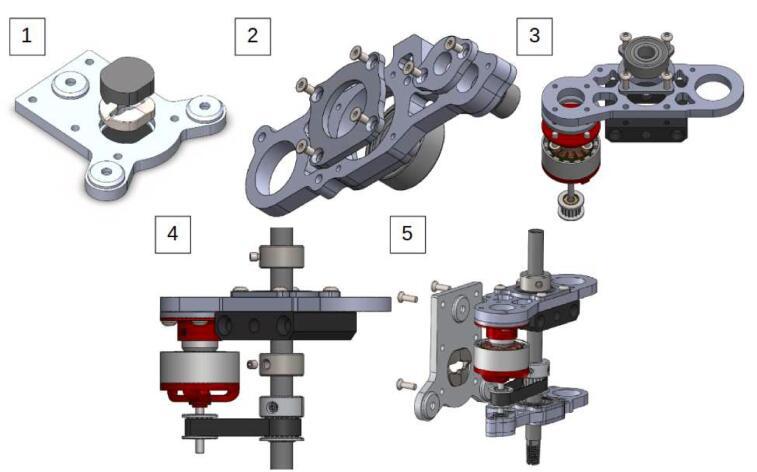

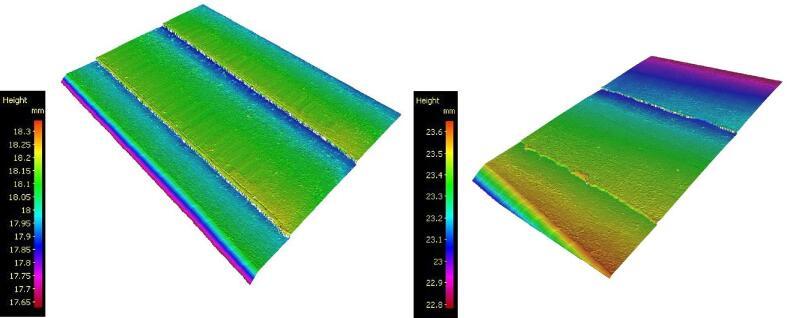

This paper presents a low-cost milling system composed of spindle mountable on a multi tool 3D printer equipped with maxwell kinematic coupling (E3D "ToolChanger" in this article) as well as two open-source software solutions for implementing a hybrid FFF/CNC manufacturing process. The first solution is the use of a traditional CAM software (FreeCad) for machining programming through the development of a dedicated post-processor. The second is an automatic layer-by-layer hybridization enabled by the software "SuperSlicer". This method requires no machining knowledge but only allows contouring operations. Results of experiments show that the spindle presented in this work is capable of successfully carrying out a hybrid process that significantly improves the surface roughness parameters, with an improvement factor of 10 for most parameters. An uniformization of surface roughness parameters was also observed in the construction direction and in the deposition/machining direction. The layer-by-layer hybridization yields the better results in terms of surface roughness. This is because the reduced depth of cut (equivalent to a printed layer) minimizes stress and temperature rise, resulting in highly favorable cutting conditions.
