Li Fang, Weng Kai, Nakamura Asumi, Ono Keishiro, Tanaka Toshihisa, Noda Daisuke, Tanaka Masaki, Irifune Shinji, Sato Hiromasa
Interdisciplinary Graduate School of Science and Technology, Shinshu University, 3-15-1, Tokida, Ueda-Shi 386-8567, Nagano, Japan.
Silicone-Electronics Materials Research Center, Shin-Etsu Chemical Co., Ltd., 1-10, Hitomi, Matsuida-Machi, Annaka-Shi 379-0224, Gunma, Japan.
Polymers (Basel). 2024 May 24;16(11):1500. doi: 10.3390/polym16111500.

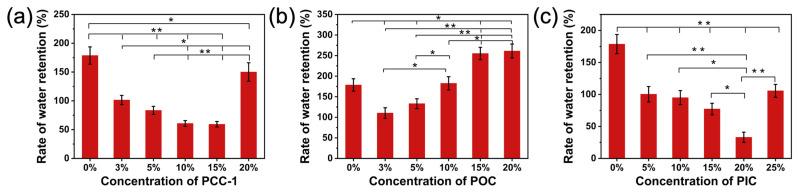

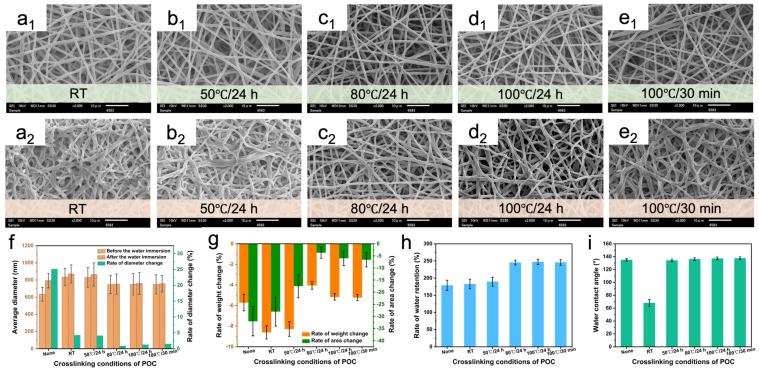

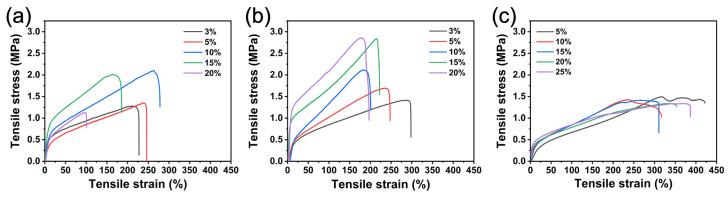

Silicone-modified polyurethane (PUSX) refers to the introduction of a silicone short chain into the polyurethane chain to make it have the dual properties of silicone and polyurethane (PU). It can be used in many fields, such as coatings, films, molding products, adhesives, and so on. The use of organic solvents to achieve the fiberization of silicone-modified polyurethane has been reported. However, it is challenging to achieve the fiberization of silicone-modified polyurethane based on an environmentally friendly water solvent. Herein, we report a simple and powerful strategy to fabricate environmentally friendly waterborne silicone-modified polyurethane nanofiber membranes through the addition of polyethylene glycol (PEG) with different molecular weights using electrospinning technology and in situ doping with three crosslinking agents with different functional groups (a polyoxazoline crosslinking agent, a polycarbodiimide crosslinking agent, and a polyisocyanate crosslinking agent) combined with various heating treatment conditions. The influence of PEG molecular weight on fiber formation was explored. The morphology, structure, water resistance, and mechanical properties were analyzed regarding the effect of the introduction of silicone into PU. The effects of the type and content of crosslinking agent on the morphology and physical properties of PUSX nanofiber membranes are discussed. These results show that the introduction of silicone can improve the water resistance and high temperature resistance of waterborne PU, and the addition of a crosslinking agent can further improve the water resistance of the sample, so that the sample can maintain good morphology after immersion. Crosslinking agents with different functional groups had different effects on the mechanical properties of PUSX nanofiber membranes due to different reactions. Among them, the oxazoline crosslinking agent had a significant effect on improving tensile strength, while the isocyanate crosslinking agent had a significant effect on improving the elongation at break. The PUSX nanofiber membrane prepared in this work did not use organic solvents that were harmful to humans and the environment, and it can be used in outdoor textiles, oil-water separation, medical health, and other fields.
有机硅改性聚氨酯(PUSX)是指将有机硅短链引入聚氨酯链中,使其具有有机硅和聚氨酯(PU)的双重性能。它可用于许多领域,如涂料、薄膜、成型制品、胶粘剂等。已有报道通过使用有机溶剂实现有机硅改性聚氨酯的纤维化。然而,基于环保型水溶剂实现有机硅改性聚氨酯的纤维化具有挑战性。在此,我们报道了一种简单而有效的策略,通过静电纺丝技术添加不同分子量的聚乙二醇(PEG),并与三种具有不同官能团的交联剂(聚恶唑啉交联剂、聚碳二亚胺交联剂和多异氰酸酯交联剂)原位掺杂,结合各种热处理条件,制备环保型水性有机硅改性聚氨酯纳米纤维膜。探讨了PEG分子量对纤维形成的影响。分析了有机硅引入PU后的形态、结构、耐水性和力学性能。讨论了交联剂的类型和含量对PUSX纳米纤维膜形态和物理性能的影响。这些结果表明,有机硅的引入可以提高水性PU的耐水性和耐高温性,添加交联剂可以进一步提高样品的耐水性,使样品在浸泡后能保持良好的形态。由于反应不同,具有不同官能团的交联剂对PUSX纳米纤维膜的力学性能有不同的影响。其中,恶唑啉交联剂对提高拉伸强度有显著作用,而异氰酸酯交联剂对提高断裂伸长率有显著作用。本工作制备的PUSX纳米纤维膜未使用对人类和环境有害的有机溶剂,可用于户外纺织品、油水分离、医疗卫生等领域。
