Steiner Christoph, Neubert Maximilian, Bottini Gian B, Nogami Shinnosuke, Zeman-Kuhnert Katharina, Gaggl Alexander
Department of Oral and Craniomaxillofacial Surgery, Paracelsus Medical University Salzburg, Müllner Hauptstraße 48, 5020 Salzburg, Austria.
Division of Oral and Maxillofacial Surgery, Department of Oral Medicine and Surgery, Tohoku University Graduate School of Dentistry, Sendai 980-8575, Miyagi, Japan.
J Clin Med. 2024 Jun 20;13(12):3613. doi: 10.3390/jcm13123613.

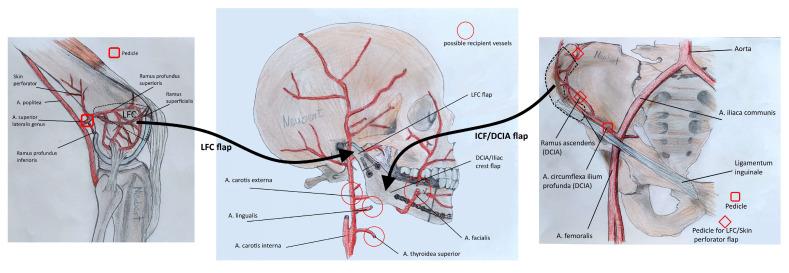

: Defects of the ascending ramus of the mandible, including the condylar head and neck or the whole temporomandibular joint (TMJ), are difficult to reconstruct. Reconstruction is mainly based on the use of alloplastic joint prosthesis, costochondral grafting, distraction osteogenesis of the dorsal part of the mandibular ramus, or osseous microvascular flaps of various origin. With the objective of developing a method that overcomes the restrictions of these methods, we recently introduced a sequential chimeric flap consisting of a lateral femoral condyle flap (LFC) and deep circumflex iliac artery flap (DCIA) for reconstruction of up to half of the mandible and the condylar head and neck. : The chimeric flap was used in four patients with the following diagnoses: therapy-refractory osteomyelitis, extended recurrent odontogenic keratozyst, Goldenhar syndrome, and adenocarcinoma of the parotid gland. After a diagnostic workup, LFC and DCIA flaps were harvested in all patients and used in a sequential chimeric design for the reconstruction of the mandibular body and condylar head and neck. : Follow-up from at least 24 months up to 70 month after surgery showed a successful reconstruction in all four patients. The LFC provided a cartilaginous joint surface, allowing for a satisfactory masticatory function with a stable occlusion and unrestricted mouth opening and preserved or regained lateral and medial excursions in all patients. The DCIA allowed for a bony reconstruction anatomically resembling a non-atrophied mandibular body. No flap-related complications were observed. : The sequential chimeric LFC and DCIA flap is an appropriate method for reconstructing up to half of the mandible and the condylar head and neck. It is suitable in cases where alloplastic joint replacement cannot be used or where other methods have failed. Due to the necessity of harvesting two flaps, the burden of care is increased, and a careful indication is required. The technique is reserved for maxillofacial surgeons who have already gained significant experience in the field of microsurgery.
下颌骨升支缺损,包括髁突头部和颈部或整个颞下颌关节(TMJ),难以重建。重建主要基于使用异体关节假体、肋软骨移植、下颌支背部牵张成骨或各种来源的骨微血管皮瓣。为了开发一种克服这些方法局限性的方法,我们最近引入了一种由外侧股骨髁皮瓣(LFC)和旋髂深动脉皮瓣(DCIA)组成的序贯嵌合皮瓣,用于重建多达一半的下颌骨以及髁突头部和颈部。:该嵌合皮瓣用于4例诊断如下的患者:治疗难治性骨髓炎、广泛性复发性牙源性角化囊肿、Goldenhar综合征和腮腺腺癌。经过诊断性检查后,所有患者均切取了LFC和DCIA皮瓣,并以序贯嵌合设计用于重建下颌骨体以及髁突头部和颈部。:术后至少24个月至70个月的随访显示,所有4例患者均成功重建。LFC提供了一个软骨性关节面,使所有患者具有令人满意的咀嚼功能,咬合稳定,开口不受限制,侧向和内侧运动得以保留或恢复。DCIA实现了在解剖学上类似于未萎缩下颌骨体的骨重建。未观察到与皮瓣相关的并发症。:序贯嵌合LFC和DCIA皮瓣是重建多达一半下颌骨以及髁突头部和颈部的合适方法。适用于不能使用异体关节置换或其他方法失败的情况。由于需要切取两个皮瓣,护理负担增加,需要仔细评估适应证。该技术仅适用于在显微外科领域已积累丰富经验的颌面外科医生。
