Pinna Jacopo, Pili Elisa, Mehrabi Koushki Razieh, Gavhane Dnyaneshwar S, Carlà Francesco, Kooi Bart J, Portale Giuseppe, Loi Maria Antonietta
Zernike Institute for Advanced Materials, University of Groningen, Nijenborgh 4, Groningen 9747 AG, The Netherlands.
Diamond House, Harwell Science and Innovation Campus, Diamond Light Source Ltd, Didcot, Oxfordshire OX11 0DE, United Kingdom.
ACS Nano. 2024 Jul 23;18(29):19124-19136. doi: 10.1021/acsnano.4c04076. Epub 2024 Jul 2.

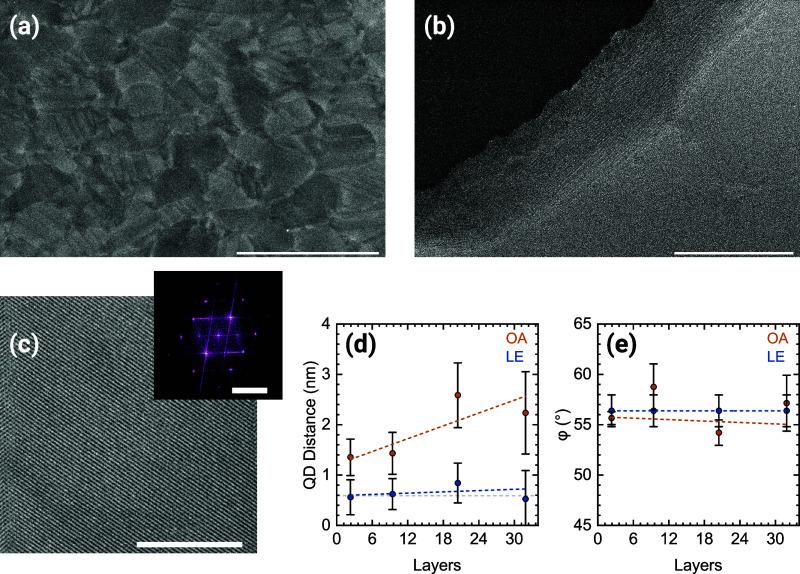

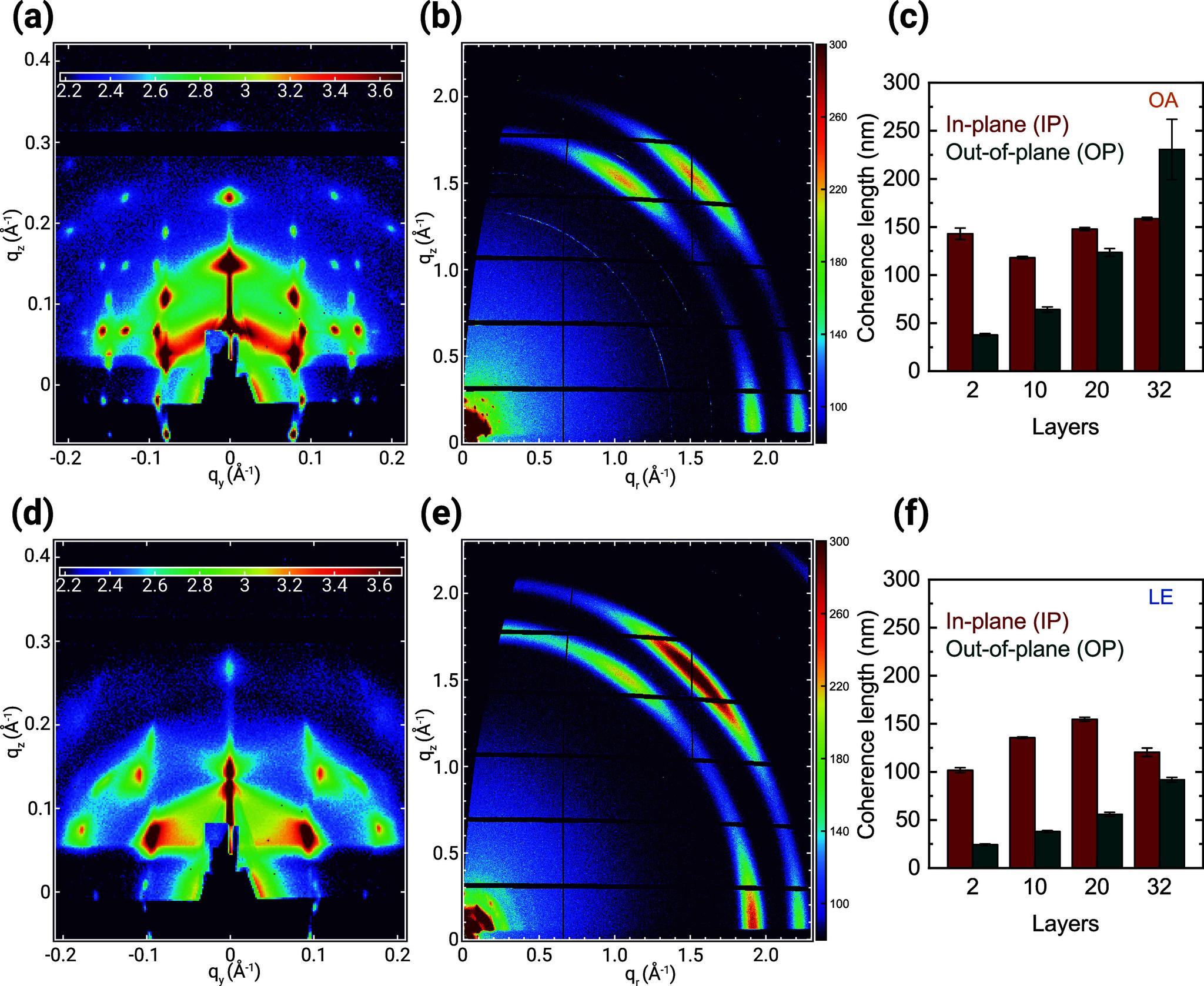

Lead chalcogenide colloidal quantum dots are one of the most promising materials to revolutionize the field of short-wavelength infrared optoelectronics due to their bandgap tunability and strong absorption. By self-assembling these quantum dots into ordered superlattices, mobilities approaching those of the bulk counterparts can be achieved while still retaining their original optical properties. The recent literature focused mostly on PbSe-based superlattices, but PbS quantum dots have several advantages, including higher stability. In this work, we demonstrate highly ordered 3D superlattices of PbS quantum dots with tunable thickness up to 200 nm and high coherent ordering, both in-plane and along the thickness. We show that we can successfully exchange the ligands throughout the film without compromising the ordering. The superlattices as the active material of an ion gel-gated field-effect transistor achieve electron mobilities up to 220 cm V s. To further improve the device performance, we performed a postdeposition passivation with PbI, which noticeably reduced the subthreshold swing making it reach the Boltzmann limit. We believe this is an important proof of concept showing that it is possible to overcome the problem of high trap densities in quantum dot superlattices enabling their application in optoelectronic devices.
硫族化铅胶体量子点因其带隙可调性和强吸收性,是有望彻底改变短波长红外光电子学领域的材料之一。通过将这些量子点自组装成有序超晶格,可以实现接近块状材料的迁移率,同时仍保留其原始光学特性。最近的文献大多聚焦于基于PbSe的超晶格,但PbS量子点有几个优点,包括更高的稳定性。在这项工作中,我们展示了具有高达200nm可调厚度且具有高度相干有序性的PbS量子点三维超晶格,无论是在平面内还是沿厚度方向。我们表明,我们可以在不影响有序性的情况下成功地在整个薄膜中交换配体。作为离子凝胶门控场效应晶体管活性材料的超晶格实现了高达220cm² V⁻¹ s⁻¹的电子迁移率。为了进一步提高器件性能,我们用PbI₂进行了沉积后钝化,这显著降低了亚阈值摆幅,使其达到玻尔兹曼极限。我们相信这是一个重要的概念验证,表明有可能克服量子点超晶格中高陷阱密度的问题,从而使其能够应用于光电器件。
